Summary of Contents for Tunstall Lifeline Digital

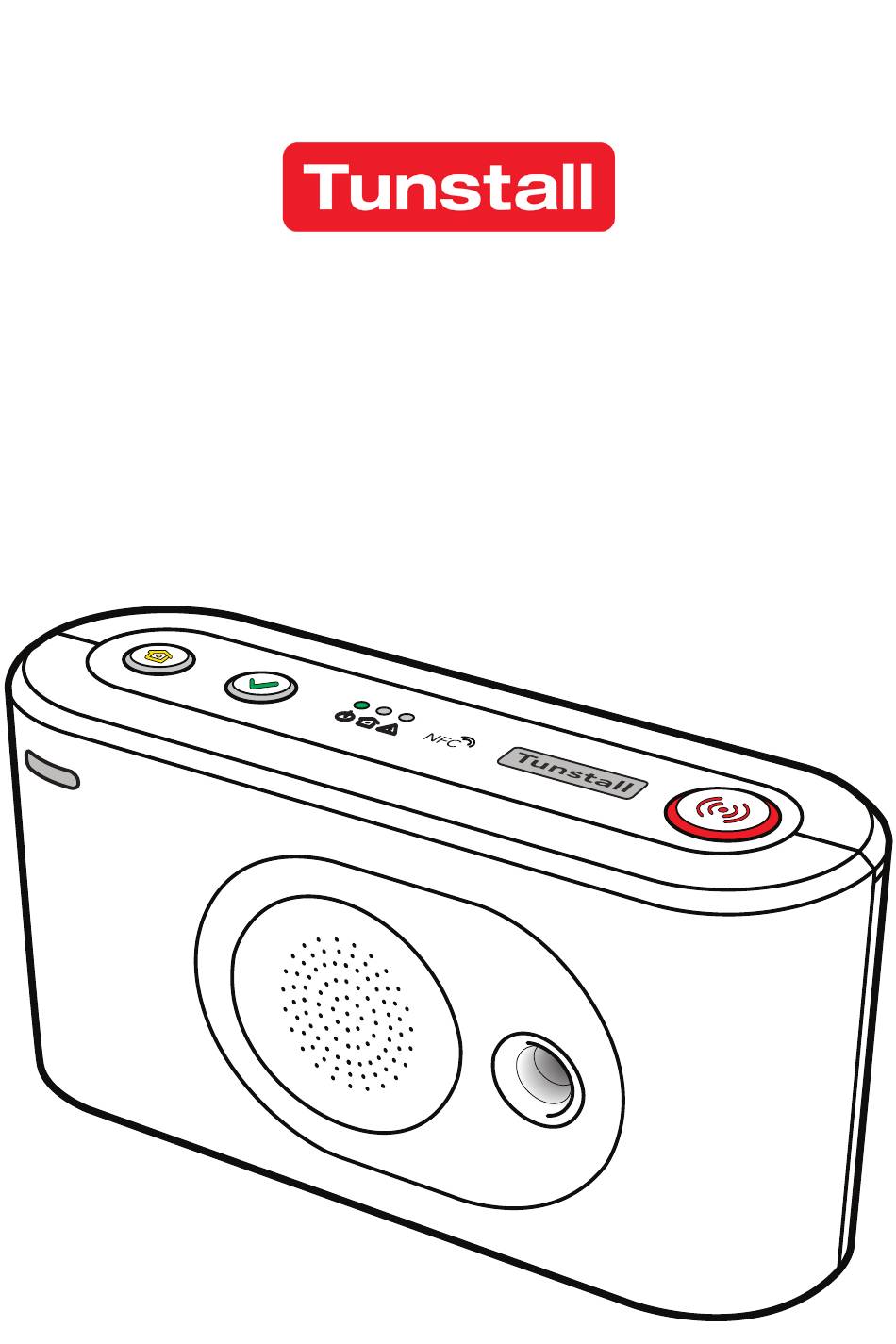

- Page 1 Lifeline Digital Quick Install Guide...
- Page 2 Lifeline Digital Package Pendant Pendant Power Cord Holder - Holder - Pendant Neck Wrist Lifeline Digital Neck Cord Wrist Strap...
- Page 3 Do not get the Please avoid The TX4 Lifeline Digital unplugging the pendant is Lifeline Digital water-resistant...
- Page 4 Microphone Speaker...
- Page 5 Power Switch Antenna Wired Internet (if required) Power Connection...
- Page 6 Lifeline Digital Buttons and LEDs 1. Yellow Extra button 2. Green Cancel button 3. Red Alarm button 4. Green LED indicator 5. Yellow LED indicator 6. Red LED indicator...
- Page 7 Installing the Lifeline Digital Fig. 1 1. Place your new Lifeline Digital (LLD) in a convenient indoor location away from heat sources and direct sunlight 2. Ensure the device is placed upright as pictured (Fig. 1) Fig. 2 3. Slide the back cover off the LLD (Fig.
- Page 8 7. Please test your pendant by pressing the pendant button for 1-2 seconds a. The LLD will initiate a call to the Tunstall Monitoring Centre 8. When an operator speaks to you via the LLD let them know you are testing...
- Page 9 Attaching an Extension Antenna instructions, if this does not resolve the problem or you do not have an extension antenna call Tunstall’s Customer Service Team on 1800 603 377 After completing the test call slide the back cover on (Fig.
- Page 10 When pressed, the red LED on the pendant will light up to indicate activation. The green LED will light up when the Lifeline Digital base unit has received the signal from the pendant. If the red LED flashes when pressed, this indicates that the...
- Page 11 Pendant Option - Neck Cord Insert the pendant into the holder (if not already inserted) Thread the cord loop through the top of the holder Pull the cord loop through Bring the cord loop back up and over the remaining cord...
- Page 12 Pull the cord tight to create a simple hitch knot Ensure the cord is not tangled or knotted elsewhere Your pendant is now ready to wear Pendant Option - Wrist Strap Insert the pendant into the holder (if not already inserted)
- Page 13 Thread the wrist strap through each side of the holder, sitting behind the pendant Take the loose end of the strap and insert it into the clasp Ensure the loose end is securely threaded through the clasp, and close to lock in place Your pendant is now ready to wear...
- Page 14 Lifeline Digital - Extension Antenna An extension antenna is a short antenna designed to be used inside the home to boost the Lifeline Digital’s ability to receive a cellular signal. If when testing the pendant your alarm does not connect...
- Page 15 3. The correct positioning of the antenna is very important. To maximise the signal, it is best to fully unwind the antenna cable and position both the alarm and antenna in an open area with clear line of sight outside e.g. near a window. 4.
- Page 16 You can access the full user guide here: https://www.tunstallhealthcare.com.au/ lifeline-digital-user-guide or scan the QR code on the back of your alarm. If you have any questions or concerns please contact Tunstall: AUS 1800 603 377 NZ 0800 488 678 © 2024 Tunstall Group Ltd. Tunstall ® 8417-UG-20...
