Blackmagic Design BMD-PCB87
OpenGear HDMI to SDI Converter
A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
• C r i t i c a l a n d e x p e d i t e d s e r v i c e s
• I n s t o c k / R e a d y - t o - s h i p
Artisan Scientific Corporation dba Artisan Technology Group is not an affiliate, representative, or authorized distributor for any manufacturer listed herein.
In Stock
Used and in Excellent Condition
Open Web Page
https://www.artisantg.com/99340-1
• We b u y y o u r e x c e s s , u n d e r u t i l i z e d , a n d i d l e e q u i p me n t
• F u l l - s e r v i c e , i n d e p e n d e n t r e p a i r c e n t e r

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BMD-PCB87 and is the answer not in the manual?

Questions and answers

Summary of Contents for Blackmagicdesign BMD-PCB87

  • Page 1 Blackmagic Design BMD-PCB87 OpenGear HDMI to SDI Converter In Stock Used and in Excellent Condition Open Web Page https://www.artisantg.com/99340-1 A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
  • Page 2 Installation and Operation Manual Blackmagic OpenGear Converters December 2014...
  • Page 3 Before you install Blackmagic OpenGear Converter, please visit our support page at www.blackmagicdesign.com to download the latest updates to this instruction manual. We have more helpful tech notes on our support page, and you might also find a newer version of the manual.
  • Page 4: Table Of Contents

    Contents OpenGear Converter Operation Manual Introduction Overview Installing your Blackmagic OpenGear Converter card Installation Support OpenGear Converter Diagrams Blackmagic OpenGear SDI to Analog Blackmagic OpenGear Analog to SDI Blackmagic OpenGear SDI to HDMI Blackmagic OpenGear HDMI to SDI Blackmagic OpenGear SDI to Audio Blackmagic OpenGear Audio to SDI Blackmagic OpenGear Optical Fiber Blackmagic OpenGear Sync Generator...
  • Page 5: Introduction

    Introduction Introduction Overview “Brick” style mini converters are very popular for Blackmagic OpenGear Converters are compatible with There is no need to switch off the power to the 20-card models of the 2 RU (rack unit) openGear frames. converting and processing video and audio. However ™...

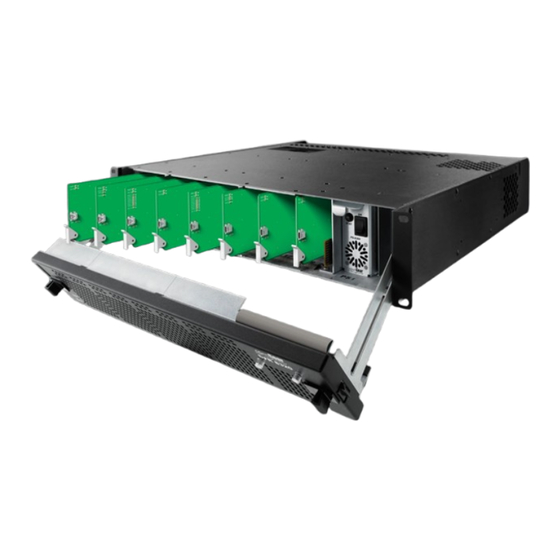

  • Page 6: Installing Your Blackmagic Opengear Converter Card

    Installation Installation Installing your Blackmagic OpenGear Converter card ‚ Ensure that electrostatic discharge precautions have been taken when ‚ Replace the blank module with the Blackmagic rear module which was touching the openGear frame and the Blackmagic OpenGear Converter. ™ included with your Blackmagic OpenGear Converter.
  • Page 7 Installation ‚ When the door has been withdrawn to its maximum extent, gently lower ‚ With the frame door open, insert the Blackmagic OpenGear Converter card the door on its frame extender arms, so it no longer obscures access to the into the card guides which correspond with the Blackmagic rear module.
  • Page 8 Installation ‚ This step can be skipped unless your card has integrated I/O connectors. ‚ At the front of the frame, raise the door until the frame extender arms are Secure any protruding BNC connectors, to the Blackmagic rear module, horizontal and then push the door in to the frame until the door catches click by screwing the supplied nuts clockwise on the screw thread of each BNC in to place.
  • Page 9: Support

    Support If things go wrong There are four steps to getting help. Step 1. Check out the Blackmagic Design web site www.blackmagicdesign.com and click on the “Support” page for the latest support information. Step 2. Call your dealer. Your dealer will have the latest technical updates from Blackmagic Design and should be able to give you immediate assistance.
  • Page 10: Opengear Converter Diagrams

    OpenGear Converter Diagrams OpenGear Converter Diagrams Blackmagic OpenGear SDI to Analog All SDI and component analog connections support standard definition and high definition. SD-SDI can be converted to component, S-Video or composite analog video. The hardware downconverter can be enabled to convert HD-SDI to standard definition analog video. A third-party, dual BNC to S-Video breakout cable can be connected to the S-Video Y (luminance) and S-Video C (chrominance) outputs when connecting to a regular S-Video port.
  • Page 11: Blackmagic Opengear Analog To Sdi

    OpenGear Converter Diagrams Blackmagic OpenGear Analog to SDI All component analog and SDI connections support standard definition and high definition. The same SDI video and audio is available from both SDI outputs. USB port HD/SD-SDI Output (BNC) HD/SD-SDI Output (BNC) Y Input (BNC) B-Y Input (BNC) R-Y Input (BNC)
  • Page 12: Blackmagic Opengear Sdi To Hdmi

    OpenGear Converter Diagrams Blackmagic OpenGear SDI to HDMI All SDI and HDMI connections support standard definition and high definition. All connectors are integrated with the card. HD/SD-SDI Input (BNC) HD/SD-SDI Output (BNC) USB port HDMI Output HD/SD-SDI Input HD/SD-SDI Output HDMI Output Blackmagic OpenGear SDI to HDMI rear module...
  • Page 13: Blackmagic Opengear Hdmi To Sdi

    OpenGear Converter Diagrams Blackmagic OpenGear HDMI to SDI All SDI and HDMI connections support standard definition and high definition. The same SDI video and audio is available from both SDI outputs. All connectors are integrated with the card. HD/SD-SDI Output (BNC) HD/SD-SDI Output (BNC) USB port HDMI Input...
  • Page 14: Blackmagic Opengear Sdi To Audio

    OpenGear Converter Diagrams Blackmagic OpenGear SDI to Audio All SDI connections support standard definition and high definition. Audio can be switched between 4 channels of professional balanced analog audio and 8 channels of professional balanced AES/EBU digital audio. USB port HD/SD-SDI Input (BNC) Alternate HD/SD-SDI Input (BNC)
  • Page 15: Blackmagic Opengear Audio To Sdi

    OpenGear Converter Diagrams Blackmagic OpenGear Audio to SDI All SDI connections support standard definition and high definition. Audio can be switched between 4 channels of professional balanced analog audio and 8 channels of professional balanced AES/EBU digital audio. In the absence of any video input, the audio will be embedded in to a black SDI output signal of the same format as the last video signal received by the converter.
  • Page 16: Blackmagic Opengear Optical Fiber

    OpenGear Converter Diagrams Blackmagic OpenGear Optical Fiber All SDI and Optical Fiber SDI inputs and outputs support SD-SDI, HD-SDI, 3G-SDI and 2K. All connectors are integrated with the card. Each direction is completely independent allowing one to use different formats simultaneously, e.g. standard definition video, from SDI to Optical Fiber SDI, and high definition from Optical Fiber SDI to SDI.
  • Page 17: Blackmagic Opengear Sync Generator

    OpenGear Converter Diagrams Blackmagic OpenGear Sync Generator All reference outputs can be set to either high definition tri-sync or standard definition black burst. The same format of reference signal is available from all reference outputs. USB port Reference Output (BNC) Reference Output (BNC) Reference Output (BNC) Reference Output (BNC)
  • Page 18: Blackmagic Opengear Updowncross

    OpenGear Converter Diagrams Blackmagic OpenGear UpDownCross The video input and outputs support SD-SDI, HD-SDI and 3G-SDI. The reference BNC connector supports Blackburst and Tri-level sync reference signals. When processing is set to OFF OpenGear UpDownCross acts as an SDI distribution amplifier. Up down cross USB port SDI In...
  • Page 19: Blackmagic Opengear Sdi Distribution

    OpenGear Converter Diagrams Blackmagic OpenGear SDI Distribution All SDI inputs and outputs support SD-SDI, HD-SDI, 2K and 3G-SDI video formats with embedded audio. The same SDI video and audio is available from all SDI outputs. OpenGear SDI Distribution also handles ASI and is compatible with ancillary data. SDI Distibution SDI In SDI Out...
  • Page 20: Warranty

    Warranty Warranty 3 Year Warranty Blackmagic Design warrants that this product will be free from defects in materials and workmanship for a period of 36 months from the date of purchase excluding user-servicable cooling fans and fiber optic modules which will be free from defects in materials and workmanship for a period of 12 months from the date of purchase.
