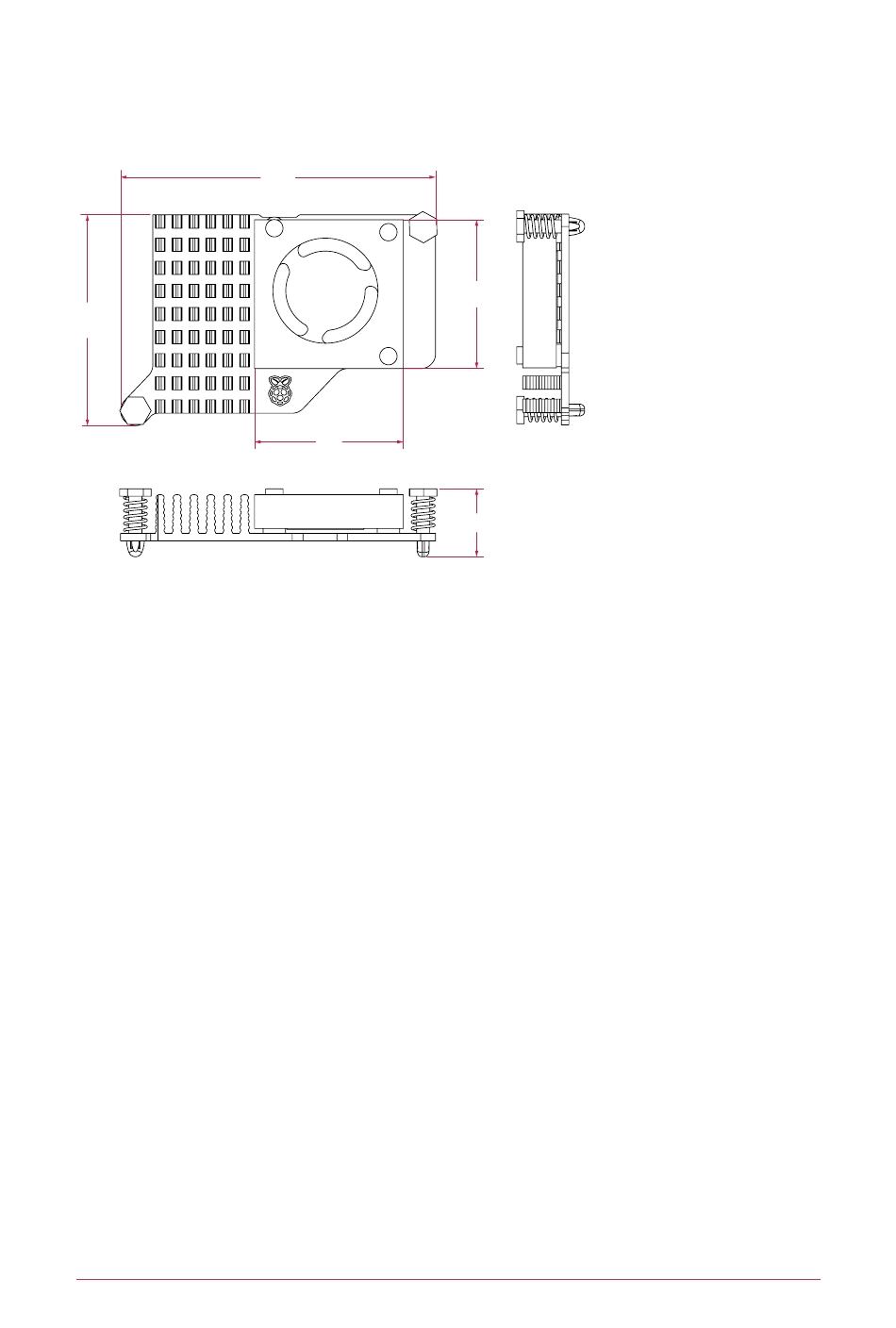

Physical specification

42.50
WARNINGS
• This product should only be used with Raspberry Pi 5.
• This product should only be operated in a well ventilated environment, and if used with a case, the case should not
be covered.
• Make sure the metal heatsink does not touch any electronic components on Raspberry Pi 5 or any accessories, to
avoid the risk of unwanted electrical contact and shorting.
• Ensure the thermal pads are present and undamaged before use. If the pads are missing or damaged, you will need
to replace them before using the Active Cooler.
• Ensure the push pins are undamaged and can clip on to the Raspberry Pi board securely before use. Discontinue use
of the Active Cooler and replace the push pins if they are damaged or deformed, or if they do not clip securely.
• Take care when using the Active Cooler, as the metal parts of the product may become hot during operation.
• A void removing the Active Cooler once it is fitted to Raspberry Pi 5, as this product is not designed for repeated
removal and replacement.
SAFETY INSTRUCTIONS
To avoid malfunction or damage to this product, please observe the following:
• Do not expose to water or moisture, or place on a conductive surface while in operation.
• Do not expose to heat from any external source; the Raspberry Pi Active Cooler for Raspberry Pi 5 is designed for
reliable operation at normal ambient temperatures.
• Take care while handling to avoid mechanical or electrical damage to the fan and connectors.
• Avoid touching or handling the fan while it is powered.
Raspberry Pi Active Cooler for Raspberry Pi 5 – Raspberry Pi Ltd
63.50
30
Note:
All dimensions in mm
All dimensions are approximate and for
reference purposes only. The dimensions
shown should not be used for producing
30
production data
The dimensions are subject to part and
manufacturing tolerances
Dimensions may be subject to change
13.70
5
