Summary of Contents for Raspberry Pi Cooler
- Page 1 Raspberry Pi Cooler For Raspberry Pi Compute Module 5 Published December 2024 Raspberry Pi Ltd...

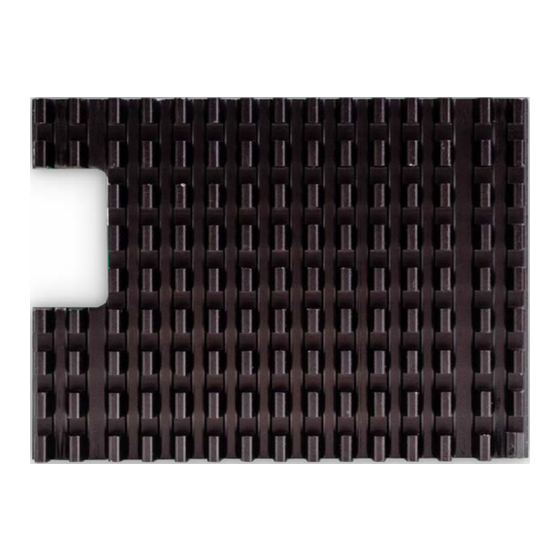

- Page 2 Overview The Raspberry Pi Cooler for Raspberry Pi Compute Module 5 is a passive heatsink that helps Compute Module 5 dissipate heat, improving CPU performance, and protects it from mechanical damage. Thermally conductive silicone on the underside of the Cooler effectively couples it to the surface of the Compute Module 5 CPU, wireless module, and power management chip for optimal heat dissipation.
-
Page 3: Specification
The Raspberry Pi Cooler for Raspberry Pi Compute Module 5 will remain in production until at least January 2036 Compliance: For a full list of local and regional product approvals, please visit pip.raspberrypi.com List price: Raspberry Pi Cooler for Raspberry Pi Compute Module 5 – Raspberry Pi Ltd... - Page 4 2. P lace four M2.5 × H1.5 or M2.5 × H3 nylon washers (supplied) between Compute Module 5 and the IO Board, around the four mounting holes. As shown in the diagram below, place the Cooler onto Compute Module 5, align the mounting holes, insert four M2.5 × 8 screws (supplied) upwards from beneath the IO Board, and tighten.
-
Page 5: Physical Specification
Do not expose to water or moisture, or place on a conductive surface whilst in operation. • Do not expose to heat from any source; the Raspberry Pi Cooler for Raspberry Pi Compute Module 5 is designed for reliable operation at normal ambient temperatures. - Page 6 Raspberry Pi Cooler for Raspberry Pi Compute Module 5 – Raspberry Pi Ltd...
- Page 7 Raspberry Pi is a trademark of Raspberry Pi Ltd...
