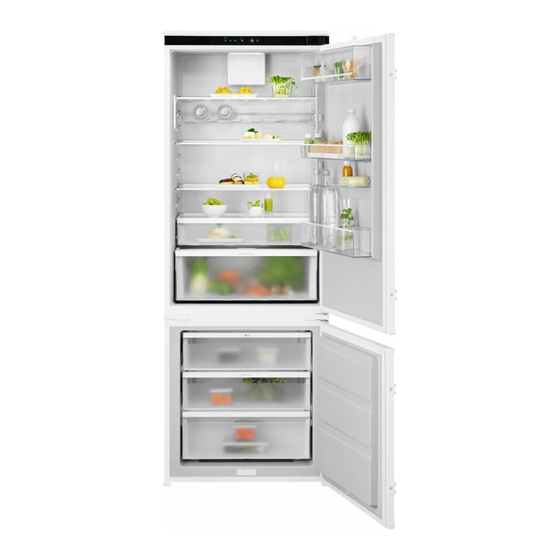

EN User Manual | Fridge Freezer
KNR7TE75S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KNR7TE75S and is the answer not in the manual?

Questions and answers

Summary of Contents for Electrolux KNR7TE75S

  • Page 1 EN User Manual | Fridge Freezer KNR7TE75S...
  • Page 2 INSTALLATION (*mm) W min.30 ≥ 200 cm² (L*W) 1884 1894 min. 1112 ≥ 200 cm² min.30 (L*W) 1895 *710 1229 1884 90° 676-723 ≥ 200 cm² NOISES SSSRRR! BRRR! BLUBB! HISSS! CLICK!
  • Page 3: Table Of Contents

    Welcome to Electrolux! Thank you for choosing our appliance. Get usage advice, brochures, troubleshooting, service and repair information: www.electrolux.com/support Subject to change without notice. CONTENTS 1. SAFETY INFORMATION................3 2. SAFETY INSTRUCTIONS................5 3. CONTROL PANEL..................7 4. DAILY USE....................10 5.
  • Page 4: General Safety

    • Children should be supervised to ensure that they do not play with the appliance. • Children shall not carry out cleaning and user maintenance of the appliance without supervision. • Keep all packaging away from children and dispose of it appropriately.
  • Page 5: Safety Instructions

    • When the appliance is empty for long period, switch it off, defrost, clean, dry and leave the door open to prevent mould from developing within the appliance. • Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. •...
  • Page 6: Internal Lighting

    mains cable, compressor). Contact the • Do not touch the compressor or the Authorised Service Centre or an condenser. They are hot. electrician to change the electrical • Do not remove or touch items from the components. freezer compartment if your hands are wet •...
  • Page 7: Control Panel

    2.6 Service 2.7 Disposal • To repair the appliance contact the WARNING! Authorised Service Centre. Use only original spare parts. Risk of injury or suffocation. • Please note that self-repair or non- • Disconnect the appliance from the mains professional repair can have safety supply.
  • Page 8: Eco Function

    The temperature indicators show the set temperature. The ECOMETER indicator shows the appliance's current energy consumption. Three fully lit bars indicate the most The set temperature will be reached energy-efficient setup. within 24 h. After a power failure, the appliance 3.5 Extra Cool function restores to the set temperature.
  • Page 9 3.7 Fan function the appliance factory settings and to change the temperature units from °C to °F.: To switch on the function, press the Fan Activating the Setting mode button. The Fan indicator lights up. 1. Press and hold the ECO button for To switch off the function, press again the approx.
  • Page 10: Daily Use

    1. Activate the Setting mode. 1. Activate the Setting mode. 2. Tap until the display shows 2. Tap until the display shows . Tap the indicator showing the unit to . Tap until the display shows select between for Celsius and turns into blinking and then into for Fahrenheit.
  • Page 11 3. Keep the front of the drawer lifted up while pushing the drawer in. 4. Press the front part of the drawer downwards. To reassemble: 5. Pull out the drawer again and check if it is 1. Pull out the rails completely. placed correctly on both rear and front hooks.
  • Page 12 4.6 Removing ExtraZone 2. Place the rear part of the drawer on the rails. There is a pull-out drawer above the GreenZone drawer. It is recommended to empty the drawer before removing it from the fridge. To remove the drawer: 1.
  • Page 13: Humidity Control

    2. Pull the glass shelf support towards yourself. To remove the humidity control device, open the drawer below the glass shelf and pull out the cover. Condensation may occur in the GreenZone drawer. Remove it using a 4.7 Humidity control soft cloth.
  • Page 14: Ice-Cube Production

    Activate the Extra Freeze function at least 24 h before placing the food to be frozen in the freezer compartment. Store the fresh food evenly distributed in the first compartment or drawer from the top. Do not exceed the max. amount of food that can be frozen without adding other fresh food within 24 h (refer to the rating plate).
  • Page 15: Hints For Freezing

    5.4 Shelf life for freezer • Do not open the door frequently or leave it compartment open longer than necessary. • Freezer: The colder the temperature setting, the higher the energy Type of food Shelf life consumption. (months) • Fridge: Do not set too high temperature unless it is required by the characteristics Bread of the food.
  • Page 16: Care And Cleaning

    • Clean fruit and vegetables and place in a • Close the bottles before you put them into dedicated drawer (vegetable drawer). the fridge. • Do not keep exotic fruits in the fridge. • Turn on the fan to accelerate cooling down •...
  • Page 17 7.1 What to do if... Problem Possible cause Solution The appliance does not operate. The appliance is switched off. Switch on the appliance. The mains plug is not connected to Connect the mains plug to the the mains socket correctly. mains socket correctly.
  • Page 18 Problem Possible cause Solution Appliance is fully loaded and is set Set a higher temperature. Refer to to the lowest temperature. "Control panel" chapter. Temperature set in the appliance is Set a higher temperature. Refer to too low and the ambient tempera‐ "Control panel"...
  • Page 19: Technical Data

    Problem Possible cause Solution The Extra Cool function is switched Refer to the "Extra Cool function" section. There is no cold air circulation in the Ensure cold air circulation in the ap‐ appliance. pliance. Refer to the "Hints and tips" chapter.
  • Page 20: Environmental Concerns

    10. ENVIRONMENTAL CONCERNS appliances marked with the symbol with Recycle materials with the symbol . Put the the household waste. Return the product to packaging in relevant containers to recycle it. your local recycling facility or contact your Help protect the environment and human municipal office.
  • Page 24 222380794-D-422024...
