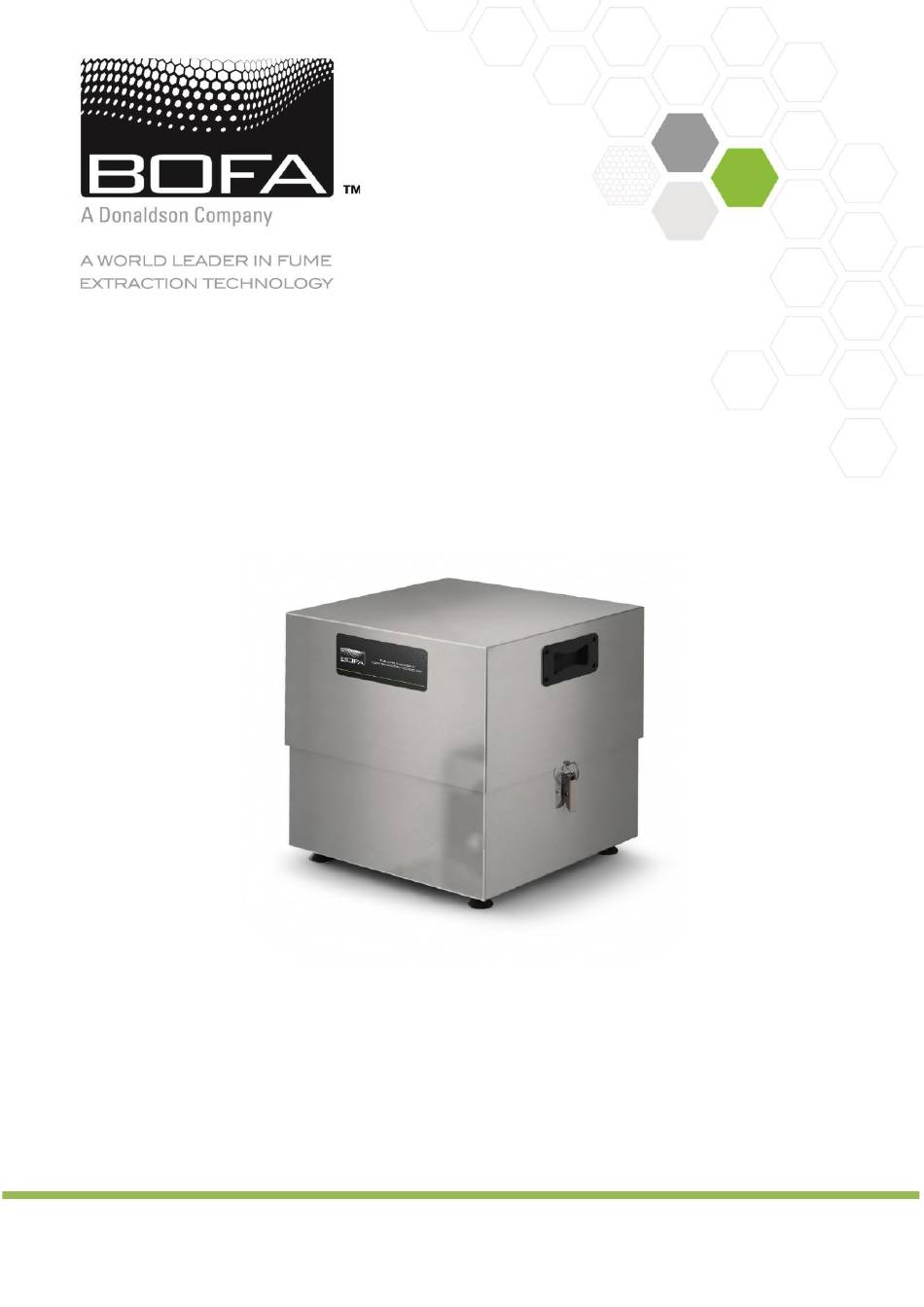

- Page 1 AD 350 CU USER MANUAL VER 3.0 – 04/2020...
-
Page 2: Table Of Contents
Contents Overview of your Cooling Unit (front) Overview of your Cooling Unit (back) Important safety notes Safety labels Unpacking and unit placement Connecting to power supply Optional added features Turning unit on Cleaning the unit Filter replacement Consumable spares & filter disposal AD 350 CU specifications... - Page 3 Overview Filter Tray Door Catches...
- Page 4 Overview On/Off Switch Mains Inlet Signal Cable Inlet Air Outlet 32mm Air Outlet 75mm Feet Air Inlet/Motor Cooling...
-
Page 5: Safety Instructions
Important Safety Instructions To reduce the risk of fire, electric shock or injury: 1. Always isolate the system from the mains power supply before removing the pump/motor access panel. 2. Use only as described in this manual. 3. Connect the system to a properly grounded outlet. - Page 6 Serial Number Safety Instructions For future reference, fill in your system details in the space provided. The serial number is on the rating label located on the side/rear of the unit. Serial Number: Warning and Information labels The following listing details labels used on your unit. Goggles, Gloves &...
-
Page 7: Before Installation
Before installation Packaging Removal & Unit Placement Before installation, check the unit for damage. All packaging must be removed before the unit is connected to the power supply. Please read all instructions in this manual before using this unit. 1. Move the unit to the location where it is going to be installed and remove the outer packaging. -
Page 8: Installation
Installation Connection to Power Supply Please follow section 8 of the manual when selecting the power supply outlet for the system, ensure the power supply is suitable before connecting the system. Check the Integrity of the electrical power cable, if the supply cord is damaged the unit should not be connected to the mains. -
Page 9: Optional Added Features
carrying out works/ tests on the unit without the need for the Installation laser / auxiliary signal being present. Filter Blocked / System Fail Signal Optional added features With this option the system will output a signal to alert the The unit can be configured to suit customer specification. -
Page 10: Operation
Operation Turning the unit On The main isolation switch must be switched to the “On” position (Refer to section for switch location) by depressing the green side of the switch. To turn off the unit the red side of the switch needs to be depressed. -
Page 11: Maintenance
Filter Information Maintenance A log of filter changes should be maintained by the user. The filters require attention when the filter condition signal indicates or when the unit no longer supplies cooling air efficiently. It is recommended that a spare set of filters are kept on Maintenance UK site to avoid prolonged unit unavailability. -
Page 12: Filter Replacement
Maintenance Refer to section 2 02 for PPE requirements. Maintenance only consists of replacing the filter. Replace the filter annually or when the host system trips out because of over temperature. A log of filter changes should be maintained. Filter replacement AUTION HEN CHANGING USED FILTERS ALWAYS WEAR MASK... -
Page 13: Replacement Parts
Filter disposal Replacement Parts The Pre Filter is manufactured from non-toxic materials. Filters are not re-usable, cleaning used filters is not recommended. The method of disposal of the used filters depends on the material deposited on them. For your guidance Consumable Spares Deposit Comment... -
Page 14: System Specifications
Wiring schematic available upon request System Specifications Spares parts list available upon request Unit: AD 350 CU Capacity: 350 m³/hr (206cfm) Weight: 18.5 kg (40.7lbs) Motor: Centrifugal Fan Electrical supply: 115V / 230V Hertz: 50/60Hz Full Load Current: 115V: 3,5A / 230V: 2,0A No of phases: 1 Noise Level: Below 68dB 61010 Stability test results:... -
Page 15: Contact Information
Contact Information BOFA Headquarters 19-20 Balena Close Creekmoor industrial Estate Poole Dorset BH17 7DU Tel. +44 (0) 1202 699 444 Email. sales@bofa.co.uk German Office Sudring 62 D-21465 Wentorf bei Hamburg Germany Tel. +49 (0) 40 739 3735-15 Email. vertrieb@bofa.co.uk BOFA Americas, Inc 303 S.Madison Street Staunton Illnois... -
Page 17: Inspection Record
Inspection Record Local Exhaust Ventilation System - Health & Safety at Work Act 1974 - Control of Substances Hazardous to Health - Regulation 9 (2002) Thorough Examination and Testing of Local Exhaust Ventilation Systems Company: System Designation: System Installation Date: Designated Person: Inspection and Maintenance Schedules Daily checks... -
Page 18: Daily Inspection
- 1 - Process enclosure, extract offtake(s), hose/ducting and extract/filtration unit. Inspection and Maintenance Record Daily inspection Inspection of the process to ensure extract devices/nozzles/enclosures/hoses are in place and correctly positioned. Examination of the extractor to ensure it is running. This to be carried out by the operator. Daily inspection not recorded. - Page 19 - 2 - Process enclosure, extract offtake, hose/ducting and extract/filtration unit. Inspection and Maintenance Record 2. Weekly Inspection ..Continued Weekly inspection by supervisor of physical condition of extract devices/nozzles/enclosures/hoses and extraction unit for damage, change (parts added or removed) and correct operation etc. Check also that daily inspections have been completed.
-
Page 20: Yearly Inspection
- 3 - Process enclosure, extract offtake, hose/ducting and extract/filtration unit. Inspection and Maintenance Record 3. Monthly Inspection In addition to weekly checks. Disconnect hoses and check for blockage and smooth operation of fan, signs of dust or vapour / gas / odour carry over. Tick boxes to confirm system ok / change. Add details of any changes.
