Related Manuals for Donaldson BOFA AD Nano SST
Summary of Contents for Donaldson BOFA AD Nano SST

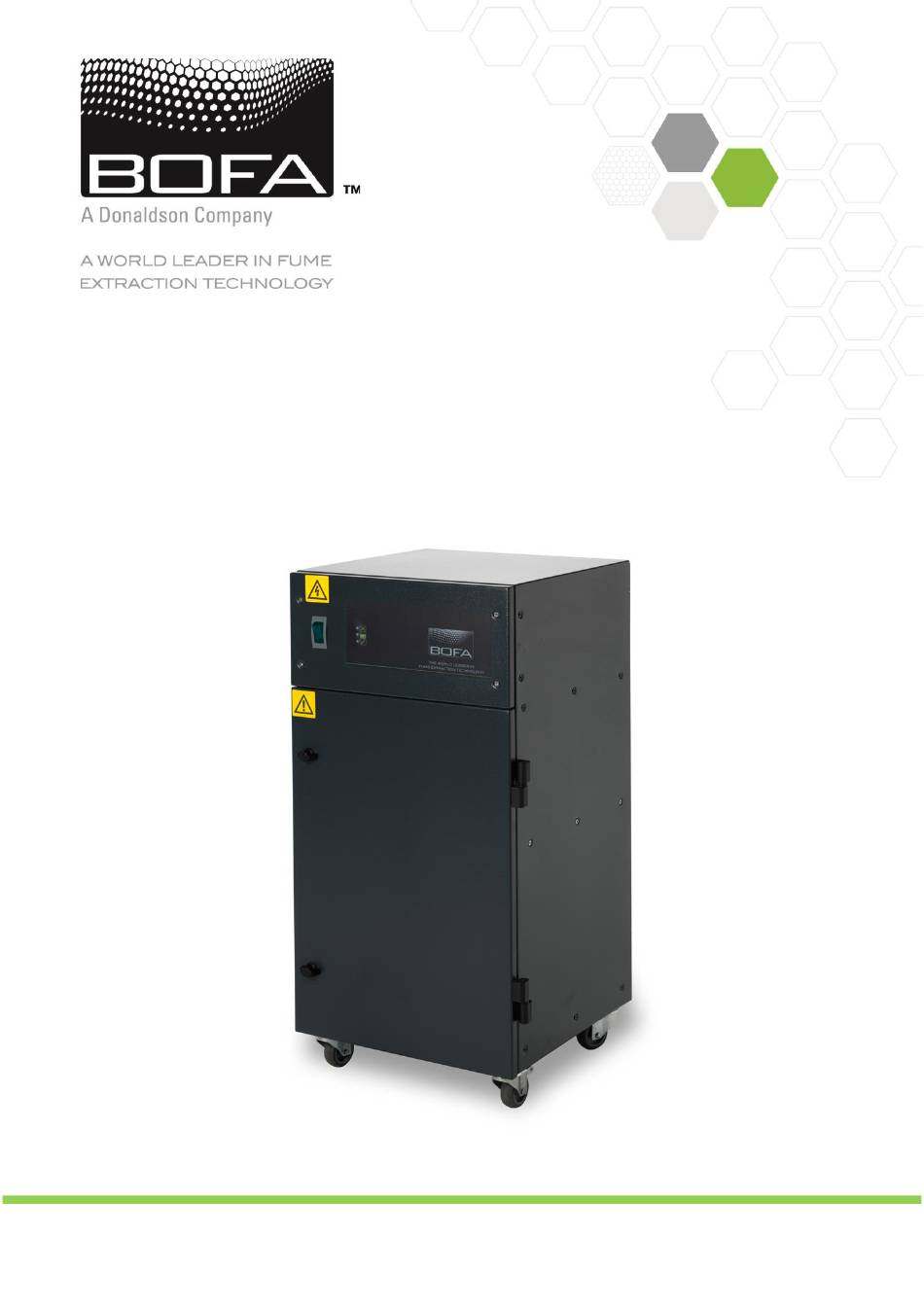

- Page 1 AD Nano USER MANUAL V1 May 15...
- Page 2 Contents Overview of your extraction system (front) Overview of your extraction system (back) Overview of the control panel Important safety notes Safety labels Unpacking and unit placement Connecting to power supply Optional interfacing Turning extractor on Cleaning the unit Filter replacement Consumable spares &...
- Page 3 Overview Control Panel Mains Isolation Switch Combined Filter Combined Filter Lever Door Latches Pre Filter Lockable Castors...
- Page 4 Overview Mains Inlet Exhaust Outlet Signal Cable Inlet (Optional) Air Outlet Air Inlet...
- Page 5 Overview...
- Page 6 Important Safety Instructions To reduce the risk of fire, electric shock or injury: Always isolate the system from the mains power supply before removing the pump/motor access panel. 2. Use only as described in this manual. Connect the system to a properly grounded outlet. Important safety notes Concerning symbols used on the extraction unit and referred Dangers to eyes, breathing and skin...
- Page 7 Serial Number Label Safety Instructions Location: Next to mains inlet. Meaning: This label contains a variety of information about the extraction unit, including: Warning and Information labels The following listing details labels used on your AD Nano • Company name, Address & Contact number unit.
- Page 8 Before installation 3. With the unit in position lock the 2 front castors. Inner transit packaging removal & unit placement Before installation, check the extraction unit for damage. All packaging must be removed before the unit is connected to the power supply. Caution Please read all instructions in this manual before using Do not block or cover the cooling vents on the unit, as this...
- Page 9 Installation Specification Dimensions: Height 797mm Depth 435mm Width 377mm Weight: Voltage: 115/230V Frequency: 60Hz Full load current: 230V:0.9A 110V: 1.2A Power: 135ω Capacity:170m Connection to Power Supply Please follow the above specification when selecting the power supply outlet for the AD Nano system, ensure the power supply is suitable before connecting the AD Nano system.
- Page 10 Filter Signal Installation When the filters become blocked or the system develops a fault the connection between the Green & White cables will become “Open” When the extraction system is running normally the connection between the Green & White cables will become “Closed”...
- Page 11 Operation Turning extraction unit On Two different main Isolation switches are used on the AD Nano unit depending on which finish has been used. Please see the images below to identify the switch your AD Nano unit uses. Powder Coated Version Press the main isolation switch to the “On”...
- Page 12 Filter Information Maintenance A log of filter changes should be maintained by the user. The filters require attention when the display shows the configuration shown on the next page or when the extractor no longer removes fume efficiently. It is recommended that a spare set of filters are kept on site to avoid prolonged unit unavailability.
- Page 13 Maintenance Filter Replacement During use, the AD Nano alerts the user when its filter needs replacing. As the filter becomes 75% full, the orange LED will glow as well as the green ‘Clean Running’ LED. When the Filter becomes full and needs to be replaced both the red LED to the left of the ‘X’...
- Page 14 Filter disposal Replacement Parts The AD Nano Combined filter is manufactured from non- toxic materials. Filters are not re-usable, cleaning used filters is not recommended. The method of disposal of the used filters depends on the material deposited on them. For your guidance Consumable Spares Deposit...
- Page 15 System Specifications Unit: AD Nano Capacity: 170m Weight: 40Kg Motor: Centrifugal Fan Output: 135ω Electrical supply: 115/230V Hertz: 50/60Hz Full Load Current: 230V: 0.9A 115V: 1.2A Noise Level: Below 60dB (A) (at typical operating speed) Size: Metric Imperial (mm) (inches) Height 31.4 Depth...
- Page 16 Contact Information BOFA Headquarters 19-20 Balena Close Creekmoor industrial Estate Poole Dorset BH17 7DU Phone: +44 (0) 1202 699 444 BOFA Americas 303 S.Madison Street Staunton Illnois 62088 Phone: +1 (618) 205 5007 BOFA International GmbH Sudring 62 D-21465 Wentorf bei Hamburg Germany Phone: +49 (0) 40 7393735-15...
