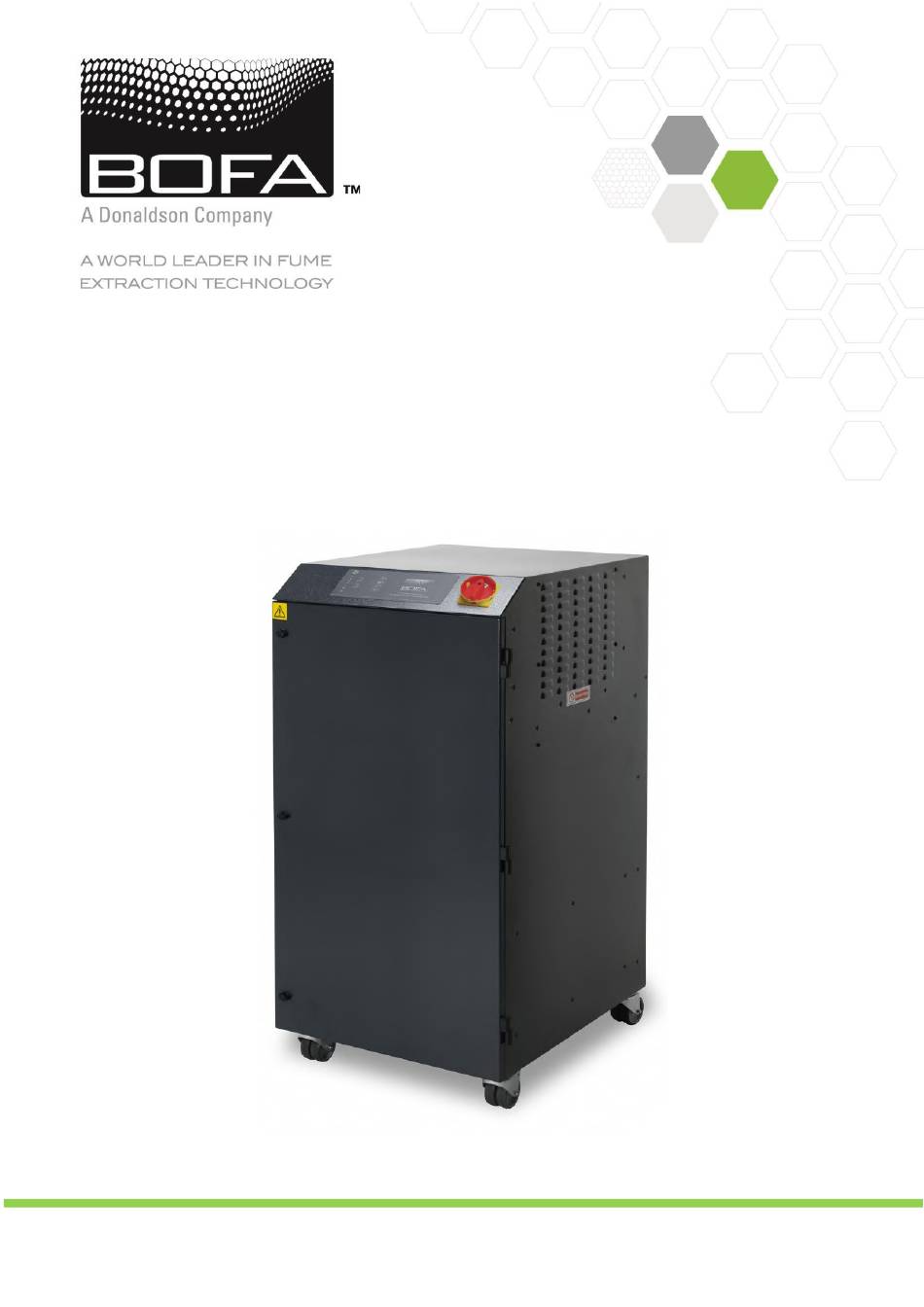

- Page 1 PrintPRO 800 DS USER MANUAL V2 Jan 16...
- Page 2 Contents Overview of your extraction system (front / back) Overview of the control panel Important safety notes Safety labels Unpacking and unit placement Connecting to power supply Turning extractor on / adjusting airflow Cleaning the unit Filter replacement Filter replacement (Continued) Consumable spares &...
- Page 3 Overview...
- Page 4 Overview...
-
Page 5: Safety Instructions
Important Safety Instructions To reduce the risk of fire, electric shock or injury: Always isolate the system from the mains power supply before removing the pump/motor access panel. 2. Use only as described in this manual. Connect the system to a properly grounded outlet. Important safety notes Concerning symbols used on the extraction unit and referred Dangers to eyes, breathing and skin... - Page 6 Safety Instructions Serial Number Label Location: Next to mains inlet. Warning and Information labels Meaning: This label contains a variety of information about The following listing details labels used on your PrintPRO the extraction unit, including. 800 DS unit. • Company name, Address & Contact number Goggles, Gloves &...
-
Page 7: Before Installation
Before Installation Packaging Removal & Unit Placement Before installation, check the extraction unit for damage. All packaging must be removed before the unit is connected to the power supply. Please read all instructions in this manual before using this extractor. 1. -
Page 8: Installation
Installation Specification: PrintPRO 800 DS Dimensions: Height 1175mm Depth 750mm Width 600mm Weight: 155Kg Voltage: 115-230V Frequency: 50/60Hz Full load current: 25A Power: 2200W Capacity:800m Connection to Power Supply Please follow the above specification when selecting the power supply outlet for the PrintPRO 800 DS system, ensure the power supply is suitable before connecting the system. -
Page 9: Operation
To set the airflow Operation Hold down the Up and Down arrows on the front panel for 5 seconds. The green LED will now start to flash, indicating that the machine is now in set mode. You can now increase or decrease the flow by holding down either the up or down arrow. -
Page 10: Maintenance
Maintenance Filter Information A log of filter changes should be maintained by the user. The filters require attention when the display shows the configuration shown on the next page or when the extractor Maintenance UK no longer removes fume efficiently. It is a legal requirement, under regulation 9 of the COSHH All filters are tested to BS3928. - Page 11 (If Gas filter fitted, skip this step) Undo the catches on Maintenance the front and back of the filter package. 6. Remove the HEPA (and Gas filter if fitted) from the top of the filter stack. The sponge filter can now be removed from its frame. 8.
- Page 12 Maintenance GAS filter replacement For units fitted with the VOC monitor option, the requirement for a combined filter change (gas portion saturated) is indicated by illumination of the Gas filter alarm light on the front panel. Please note that the carbon media within the combined filter is hygroscopic and will absorb moisture from the atmosphere.
-
Page 13: Replacement Parts
Replacement Parts Filter disposal The Universal Combined filter is manufactured from non- toxic materials. Filters are not re-usable, cleaning used filters is not recommended. The method of disposal of the used filters depends on the material deposited on them. Consumable Spares For your guidance The PrintPRO 800DS extraction system contains a universal Deposit... -
Page 14: System Specifications
System Specifications Unit: PrintPRO 800DS Capacity: 800m /h 470cfm Weight: 155Kg (342lbs) Motor: Centrifugal Fan Output: 2200w Electrical supply: 115-230V Hertz: 50/60Hz Full Load Current: 25A Noise Level: Below 68dB (A) (at typical operating speed) Environmental operating range: Temperature: +5 C to + 40 Humidity: Max 80% RH up to 31 Max 50% RH at 40... -
Page 15: Contact Information
Contact Information BOFA Headquarters 19-20 Balena Close Creekmoor industrial Estate Poole Dorset BH17 7DU Phone: +44 (0) 1202 699 444 BOFA Americas 303 S.Madison Street Staunton Illnois 62088 Phone: +1 (618) 205 5007 BOFA International GmbH Sudring 62 D-21465 Wentorf bei Hamburg Germany Phone: +49 (0) 40 7393735-15...
