Summary of Contents for Donaldson BOFA 3D PrintPRO 4
Page 1

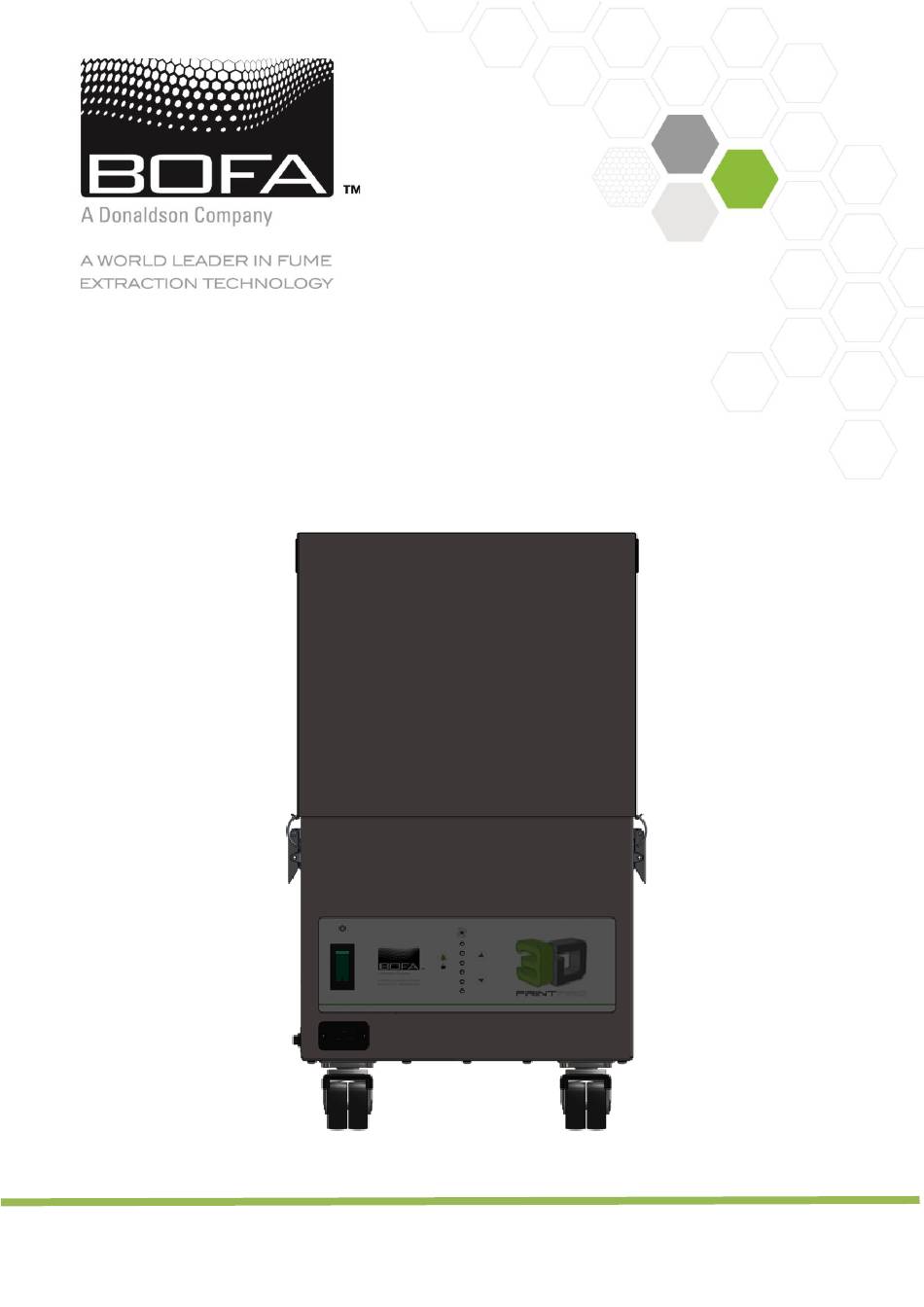

3D PrintPRO 4 USER MANUAL VER 2.0 – 08/2021...
Page 2
Contents Overview of your extraction system (front) Overview of your extraction system (back) Overview of the control panel Important safety notice Safety labels Unpacking and unit placement Connecting to power supply Turning extractor On / Adjusting Airflow Important safety notice Safety labels Consumables spares &...
Page 3
Overview Mains Isolation Lid Carry Handles Switch Clips Signal override switch Signal cable port Control Panel Mains Inlet Lockable Castors...
Important Safety Instructions To reduce the risk of fire, electric shock or injury: Always isolate the system from the mains power supply before removing the pump/motor access panel. 2. Use only as described in this manual. Connect the system to a properly grounded outlet. Important safety notes Concerning symbols used on the extraction unit and referred Dangers to eyes, breathing and skin...
Page 7
Serial Number Safety Instructions For future reference, fill in your system details in the space provided. The serial number is on the rating label located on the side/rear of the unit. Serial Number: Warning and Information labels The following listing details labels used on your unit. Serial Number Label Goggles, Gloves &...
Before installation Packaging Removal & Unit Placement Before installation, check the extraction unit for damage. All packaging must be removed before the unit is connected to the power supply. Please read all instructions in this manual before using this extractor. 1.
Installation Specification Refer to section 08 01. Connection to Power Supply Please follow the above specification when selecting the power supply outlet for the 3D PrintPro 4 system, ensure the power supply is suitable before connecting the 3D PrintPro 4 system. Check the Integrity of the electrical power cable, if the supply cord is damaged the extraction unit should not be connected to the mains.
Operation To set the airflow Press the Up arrow button to increase airflow and press the down arrow button to decrease airflow. The level of airflow is indicated by the vertical row of six blue LEDs to the right of the mains isolation switch. As the airflow increases, more blue LEDs light up and the opposite for decreasing the Turning extraction unit On airflow.
Maintenance Filter Information A log of filter changes should be maintained by the user. The filters require attention when the display shows the configuration shown on the next page or when the extractor Maintenance UK no longer removes fume efficiently. It is recommended that a spare set of filters are kept on site It is a legal requirement, under regulation 9 of the COSHH to avoid prolonged unit unavailability.
Page 12
Maintenance Filter Replacement VOC option Refer to section 2 02 for PPE requirements. The unit also has an option for a VOC (Volatile Organic During use, the system will alert the user when its filter Compound) alarm option installed, the extractor will needs replacing.
Page 13
Filter Blocked / System Fail Signal Remote Stop/Start feature With this option the extraction system will output a signal to Enables the extraction unit to be remotely turned On / Off alert the user when the extractor has failed or when the via an external signal.
Filter disposal Replacement Parts The Universal Combined filter is manufactured from non- toxic materials. Filters are not re-usable, cleaning used filters is not recommended. The method of disposal of the used filters depends on the material deposited on them. For your guidance Consumable Spares Deposit Comment...
Spares parts list available upon request System Specifications Unit: 3D PrintPro4 Capacity: 300m Weight: 51Kg (112.4lbs) Motor: Centrifugal Fan Output: 1100w Electrical supply: 115-230V Hertz: 50/60Hz Full Load Current: 12.5A No of phases: 1 Noise Level: Below 68dB (A) (at typical operating speed) Size: Metric Imperial...
Inspection Record Local Exhaust Ventilation System - Health & Safety at Work Act 1974 - Control of Substances Hazardous to Health - Regulation 9 (2002) Thorough Examination and Testing of Local Exhaust Ventilation Systems Company: System Designation: System Installation Date: Designated Person: Inspection and Maintenance Schedules Daily checks...
Process enclosure, extract offtake(s), hose/ducting and extract/filtration unit. Inspection and Maintenance Record Daily inspection Inspection of the process to ensure extract devices/nozzles/enclosures/hoses are in place and correctly positioned. Examination of the extractor to ensure it is running. This to be carried out by the operator. Daily inspection not recorded.
Page 19
- 2 - Process enclosure, extract offtake, hose/ducting and extract/filtration unit. Inspection and Maintenance Record 2. Weekly Inspection ..Continued Weekly inspection by supervisor of physical condition of extract devices/nozzles/enclosures/hoses and extraction unit for damage, change (parts added or removed) and correct operation etc. Check also that daily inspections have been completed.
Process enclosure, extract offtake, hose/ducting and extract/filtration unit. Inspection and Maintenance Record 3. Monthly Inspection In addition to weekly checks. Disconnect hoses and check for blockage and smooth operation of fan, signs of dust or vapour / gas / odour carry over. Tick boxes to confirm system ok / change. Add details of any changes.
