HYPERION-302
Gigabit Ethernet industrial switch
BitStream hardware using the QR code or website link.
Website:
https://bitstream.pl/en/instructions/
Password: Bitstream2021@
1. Version Designation
HYPERION-30X-(.Y)-Z-(P)-U
HYPERION
2x RJ45(10M/100M/1G) + 6x SFP(100M/1G) + 2x SFP(100M/1G/2.5G)
production version:
standard
version dedicated to power substations
Additional interfaces
basic version
2x digital input, 4x relay outputs, 1-wire interface, 2x RS232 and 1x RS232/485
Power over Ethernet ( PoE ) version 301 (optional)
PoE- free version
Power
Redundant power supply 12-36V DC
Redundant power supply 20-60V DC
Power supply 100-350VDC/85-240VAC
Legend
1
– The selected version requires contact with the manufacturer
REV.
1.23
HYPERION-302 quick guide
Hyperion 302 manual
https://bitstream.pl
30X
2
2024.10.24
(.Y)
(P)
U
Z
-
2
1
3
-
66p
77p
B
1/8
1
Advertisement
Related Manuals for Bitstream HYPERION-302
Summary of Contents for Bitstream HYPERION-302
- Page 1 HYPERION-302 quick guide https://bitstream.pl HYPERION-302 Gigabit Ethernet industrial switch BitStream hardware using the QR code or website link. Website: https://bitstream.pl/en/instructions/ Password: Bitstream2021@ 1. Version Designation HYPERION-30X-(.Y)-Z-(P)-U HYPERION (.Y) 2x RJ45(10M/100M/1G) + 6x SFP(100M/1G) + 2x SFP(100M/1G/2.5G) production version: standard version dedicated to power substations...

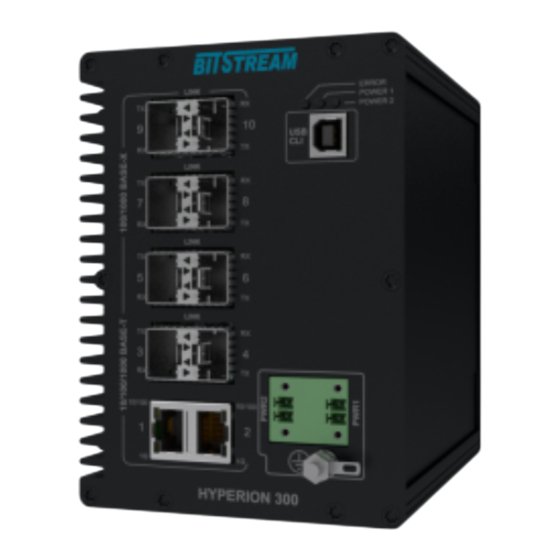

- Page 2 HYPERION-302 quick guide https://bitstream.pl Front and rear panel of the device Fig. 1. Front panel of the device Fig. 2. Front panel of the device Fig. 3. Rear panel of the device REV. 1.23 Hyperion 302 manual 2024.10.24...
- Page 3 HYPERION-302 quick guide https://bitstream.pl Symbol description: 1 – Ethernet port connectors - 2x RJ45(10M/100M/1G) + 6x SFP(100M/1G) + 2x SFP(100M/1G/2.5G) 2 – power connectors; 3 – RS-232 console USB connector; 4 – signaling diodes; 5 – 1-Wire interface connector and two digital inputs;...
- Page 4 HYPERION-302 quick guide https://bitstream.pl The arrangement of individual signals for RJ-45 connectors is shown in the table. RJ-45 CONNECTOR (PE1-PE8) Ethernet 10/100Mbit/s 1 - (white and orange.) RXAn Channel n transmitter 2 - (orange) RXBn 3 - (white-green) TX An...
-
Page 5: First Run
HYPERION-302 quick guide https://bitstream.pl 1-WIRE PORT 1-wire interface or T/H sensor data signal Ground 3.3V sensor power supply T/H sensor clock signal Digital input 1 Ground in1 Digital input 2 Ground in2 1.3 Description of SFP optical ports Ports Q1 and Q2 support SFP modules at 100M/1000M/2.5Gbps, and ports 3, 4, 5, 6, 7, and 8 support SFP modules at 100M/1Gbps. - Page 6 CLI. If you enter the password incorrectly five times via telnet or CLI, or by typing % bitstream % in the password field , a temporary code will be generated. The code should be submitted to the BitStream Support Department available from 8:00 to 16:00 on tel.
- Page 7 HYPERION-302 quick guide https://bitstream.pl The configuration and installation of the device should be performed by persons with the necessary authorizations after reading the instruction manual. The manufacturer is not responsible for any events resulting from use and installation not in accordance with the detailed instructions.
- Page 8 HYPERION-302 quick guide https://bitstream.pl ✓ IEEE 802.3az EEE ✓ IEEE 802.3af/ at type 1/2 up to 30W Completion of the product ready for sale Hyperion 30x device 1 piece. Quick Start Guide 1 piece. CE Declaration of Conformity 1 piece.
