Quick start manual for
HYPERION-303
Managed Industrial Ethernet Switch Eurocard 3U
1
E
3
Description:
1 – Signalling LEDs links fiber optic
2 – 8x SFF FX 100Mbps, 1310nm, LC duplex, MM, (range of up to 2km)
3 – Mounting screw for 3U rack or for DIN rail mounting brackets
4 –
Restore factory settings (Button DEF press > 10s)
5 –
Local management RS-232/CLI, 115 200bps (RJ-45)
6 – 2x RJ45 10M/100M/1Gbps
7 – 12-36V DC / 410mA (9.8W) power supply, reverse polarity protection
view – front
REV.
V1.03
HYPERION-303
– HYPERION-303
UROCARD
1
2

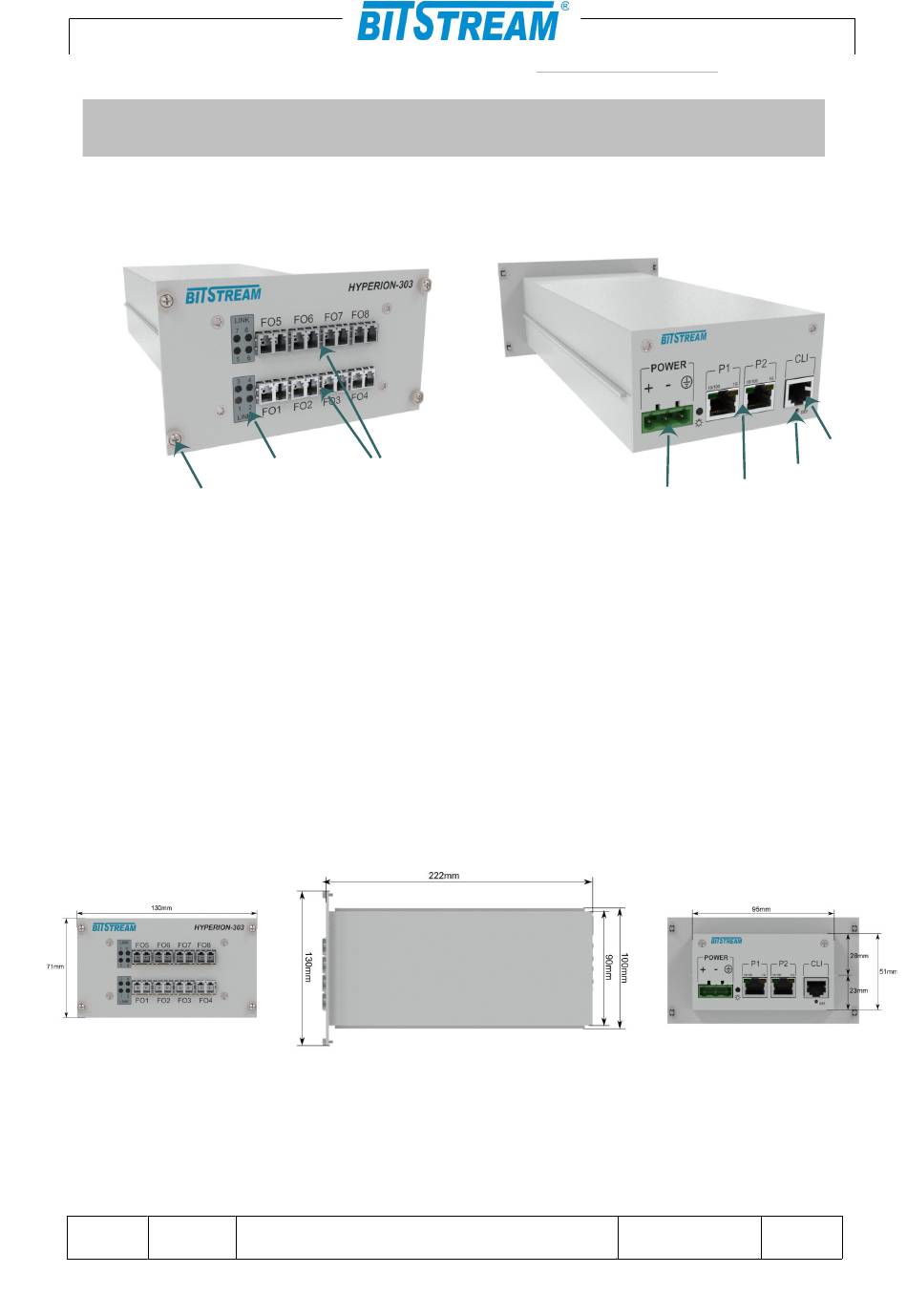

Fig. 1.
Front/back panel HYPERION-303
view – aside
Fig. 2.
SHORT USER MANUAL HYPERION-303
- www.bitstream.pl/en /
7
Mechanical drawing
20 21.03.31
5
4
6
view – back
1/5
Advertisement
Table of Contents
Related Manuals for Bitstream HYPERION-303
Summary of Contents for Bitstream HYPERION-303
- Page 1 Local management RS-232/CLI, 115 200bps (RJ-45) 6 – 2x RJ45 10M/100M/1Gbps 7 – 12-36V DC / 410mA (9.8W) power supply, reverse polarity protection view – front view – aside view – back Fig. 2. Mechanical drawing REV. V1.03 SHORT USER MANUAL HYPERION-303 20 21.03.31...
- Page 2 Terminal block connector description Fig. 5. Power connector Description: 1 – (+) 12-36V DC / 410mA (9.8W) power supply, reverse polarity protection 2 – (-) 3 – ground 4 – signalling LED Power Supply REV. V1.03 SHORT USER MANUAL HYPERION-303 20 21.03.31...
- Page 3 After connecting power supply first signalling diode should light LED Power. LEDs indicate device booting. Device can be managed using any Ethernet interface or RS232/CLI. EFAULT PARAMETERS IP parameters: Adress: 192.168.0.10 Mask: 255.255.255.0 User: admin Password: no password - empty REV. V1.03 SHORT USER MANUAL HYPERION-303 20 21.03.31...
- Page 4 CLI. If you enter the password incorrectly five times via telnet or CLI or by entering the %bitstream% command in the password field, a temporary code will be generated. The code must be forwarded to the BitStream Support department available from 8:00 to 16:00 at 817438643 or sent by e-mail to support@bitstream.pl...
- Page 5 In such cases, you can require the user to take appropriate measures. Safety In respect to safety of service, BITSTREAM devices were designed and tested for operation safety along with the EN 60950 standard. Configuration and installation of the device should be executed by authorised persons familiar with the service manual.
