HYPERION-300
Gigabit Ethernet industrial switch
BitStream hardware using the QR code or website link.
Website:
https://bitstream.pl/oprogramowanie-
instrukcje/
Password:
Bitstream2021@
1. Version Designation
HYPERION-30X-(.Y)-Z-(P)-U
HYPERION
8x RJ45(10M/100M/1G) and 2x SFP(100M/1G) - 2x Combo +
2xSFP (100M/1G/2.5G)
2x RJ45(10M/100M/1G) + 6x SFP(100M/1G) + 2x
SFP(100M/1G/2.5G)
production version:
standard
version dedicated to power substations
Additional interfaces
basic version
2x digital input, 4x relay outputs, 1-wire interface, 2x RS232 and 1x
RS232/485
Power over Ethernet ( PoE ) version 301 (optional)
PoE- free version
8x PoE + PSE
Power
Redundant power supply 12-36V DC
Redundant power supply 20-60V DC, for PoE 45-57V DC
PoE (do 15W) 45-57V
PoE+ (do 30W) 52-57V
Power supply 100-350VDC/85-240VAC
Legend
1
– The selected version requires contact with the manufacturer, power option without PoE function
2
– For the PoE version , the maximum power available on all RJ45 ports is 240W
REV.
1.19
HYPERION-300 quick guide
Hyperion 30x manual
https://bitstream.pl
30X
(.Y)
1
2
2
2023.04.05
(P)
Z
-
1
3
-
S8P
1_ 8
U
66p
2
77p
1
B
Advertisement
Table of Contents
Related Manuals for Bitstream HYPERION-300
Summary of Contents for Bitstream HYPERION-300
- Page 1 HYPERION-300 quick guide https://bitstream.pl HYPERION-300 Gigabit Ethernet industrial switch BitStream hardware using the QR code or website link. Website: https://bitstream.pl/oprogramowanie- instrukcje/ Password: Bitstream2021@ 1. Version Designation HYPERION-30X-(.Y)-Z-(P)-U HYPERION (.Y) 8x RJ45(10M/100M/1G) and 2x SFP(100M/1G) - 2x Combo + 2xSFP (100M/1G/2.5G) 2x RJ45(10M/100M/1G) + 6x SFP(100M/1G) + 2x SFP(100M/1G/2.5G)

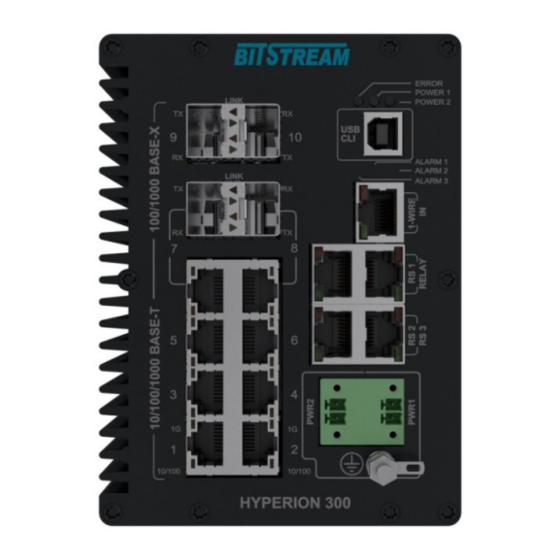

- Page 2 HYPERION-300 quick guide https://bitstream.pl Front and rear panel of the device Fig. 1. Front panel of the device in versions h Hyperion-301-1 and Hyperion-302-1 Fig. 2. Front panel of the device in versions Hyperion-301-3 and Hyperion-302-3 Fig. 3. Rear panel of the device in Hyperion versions Symbol description: 1 –...
- Page 3 HYPERION-300 quick guide https://bitstream.pl 5 – 1-Wire interface connector and two digital inputs; 6 – relay output connector; 7 – RS232/485 interface connector; 8 – RS232 interface connectors; 9 – DEF button; 1.1 Signaling description Fig. 1. Signaling diodes. Designation of signaling diodes : 1 –...
- Page 4 HYPERION-300 quick guide https://bitstream.pl RJ-45 CONNECTOR (PE1-PE8) Ethernet 1000Mbit/s 1 - (white and orange.) BI_DA+ Bidirectional contact +A 2 - (orange) BI_DA- Bidirectional contact -A 3 - (white-green) BI_DB+ Bidirectional contact +B 4 - (blue) BI_DC+ Bidirectional contact +C 5 - (white and blue)
- Page 5 HYPERION-300 quick guide https://bitstream.pl 1.3 Description of SFP optical ports On the Hyperion-301 version, ports numbered 9 and 10 support SFP modules at speed 100M/1000M/2.5Gbps, and ports 7 and 8 support SFP modules at 100M/1Gbps, which are also combo ports with two RJ45 electrical ports.
- Page 6 CLI. If you enter the password incorrectly five times via telnet or CLI, or by typing % bitstream % in the password field , a temporary code will be generated. The code should be submitted to the BitStream Support Department available from 8:00 to 16:00 on tel.
- Page 7 HYPERION-300 quick guide https://bitstream.pl ➢ The power cord should always be connected to the power source through a plug socket with a grounding pin . It is allowed to connect to a network without a neutral pin, provided that the earth is connected to the earth terminal located on the screw connection.
- Page 8 HYPERION-300 quick guide https://bitstream.pl Completion of the product ready for sale Hyperion 30x device 1 piece. Quick Start Guide 1 piece. CE Declaration of Conformity 1 piece. Warranty Card 1 piece. USB cable for setup 1 piece. REV. 1.19 Hyperion 30x manual 2023.04.05...
