Quick start manual, a detailed manual is on the enclosed CD

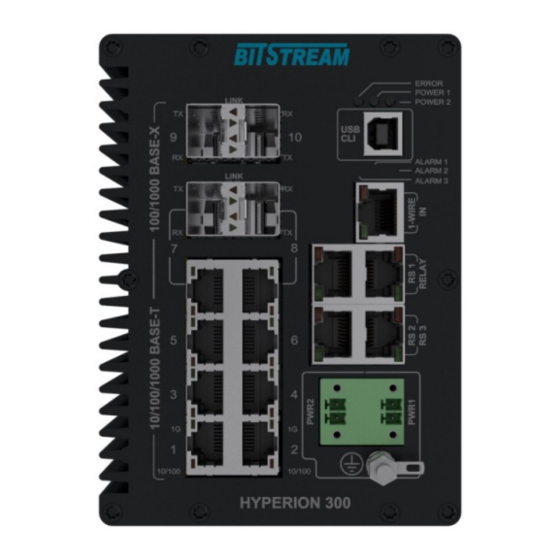

HYPERION-300
Gigabit Industrial Ethernet Switch
1
F
RONT AND BACK PANEL
3
1
2

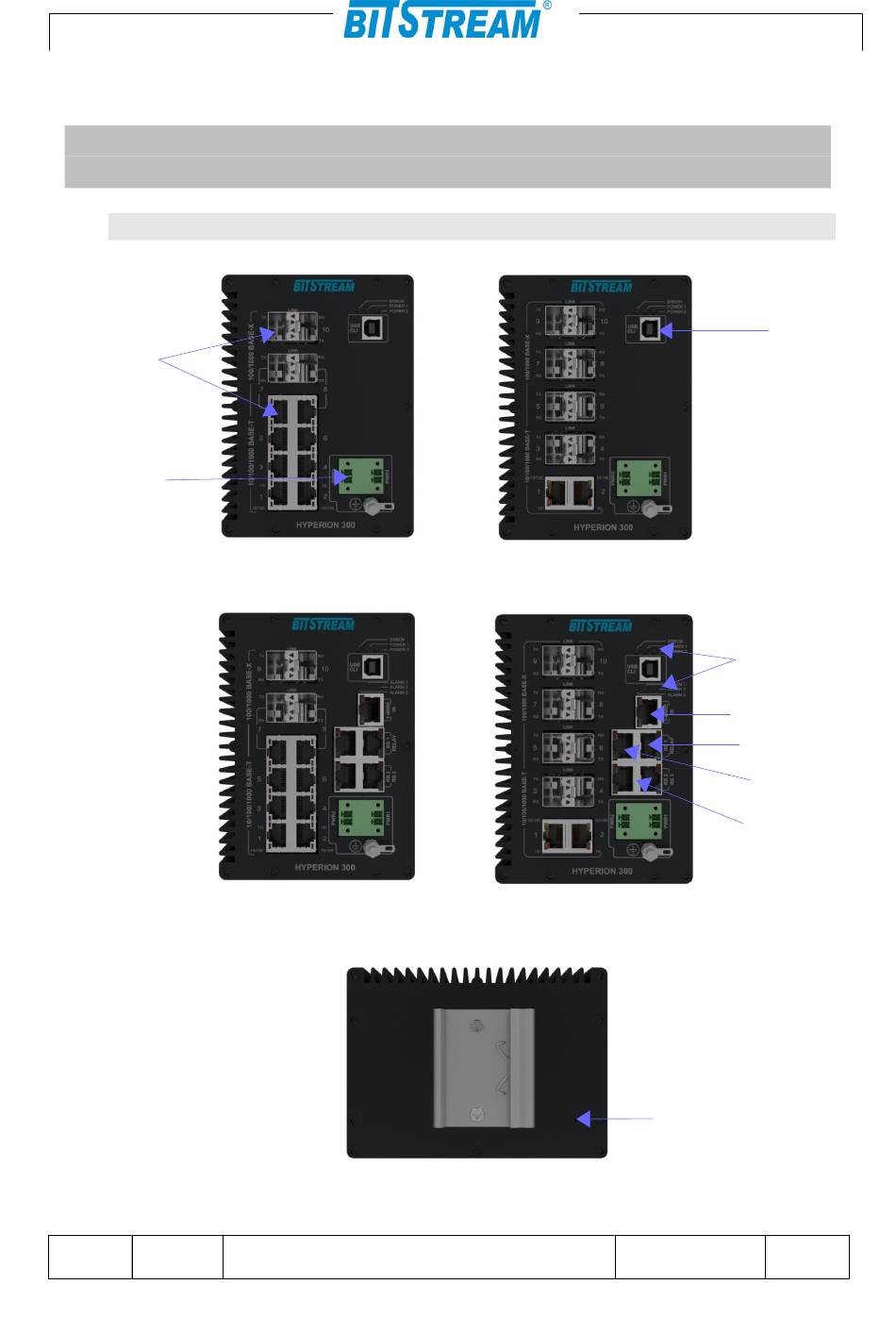

Fig. 1.
Hyperion-301-1 and Hyperion-302-1
Front panel
4
5
6
7
8
Fig. 2.
Hyperion-301-3 and Hyperion-302-3
Front panel
9
Fig. 3.
Hyperion
Back panel
REV.
V1.12
SHORT USER MANUAL HYPERION-30x
20 21.03.31
1/7
Advertisement
Table of Contents
Related Manuals for Bitstream HYPERION-300
Summary of Contents for Bitstream HYPERION-300
- Page 1 Quick start manual, a detailed manual is on the enclosed CD HYPERION-300 Gigabit Industrial Ethernet Switch RONT AND BACK PANEL Fig. 1. Hyperion-301-1 and Hyperion-302-1 Front panel Fig. 2. Hyperion-301-3 and Hyperion-302-3 Front panel Fig. 3. Hyperion Back panel REV.
- Page 2 Quick start manual, a detailed manual is on the enclosed CD Description: 1 – Ethernet ports 6x RJ45 and 2x RJ45 or 2x SFP – combo ports and 2x SFP 2,5Gb for HYPERION- 301-x 2x RJ45 and 6x SFP and 2x SFP 2,5Gb for HYPERION-302-x 2 –...
- Page 3 Quick start manual, a detailed manual is on the enclosed CD Signalling LEDs Fig. 5. Signalling LEDs LEDs marking 1 – ERROR: critical alarm 2 – POWER1: supply on PWR 1 3 – POWER2: supply on PWR 2 4 – ALARM 3: status indicator relay output 5 –...
- Page 4 Quick start manual, a detailed manual is on the enclosed CD Distribution of signals for the serial port connectors shown in the following table: PORT RS232 (RS2, RS3) PORT RS232/485 (RS1) RS485 RX- RS485 RX+ RS232 GND RS232 RX RS232 TX RS232 CTS/RS485 TX+ RS232 RTS/RS485 TX- PORT RELAY...
- Page 5 Quick start manual, a detailed manual is on the enclosed CD OWER SUPPLY Two power inputs - redundant – Voltage range for version 66p 12-36V DC, and for version 77p 20-60V DC – Current consumption 66p for 12V/ 850mA and 36V/ 300mA, and for version 77p 20V/ 520mA –...
- Page 6 There is a mechanism for generating a temporary password to access via www or telnet or CLI. If you enter the password incorrectly via telnet or CLI 5 times or by entering the %bitstream% com- mand in the password field, a temporary code will be generated. The code should be sent to Bit- Stream support available from 8:00 to 16:00 at 817438643 ext.
- Page 7 Quick start manual, a detailed manual is on the enclosed CD IEEE 802.3-2002 – Ethernet interfaces with 10/100Mbit/s speed IEEE 802.3u – 100Base-TX Fast Ethernet IEEE 802.3u – 100Base-FX Fast Ethernet Fiber IEEE 802.3ab – 1000Base-T IEEE 802.3z – Gigabit Fiber IEEE 802.1q, p –...
