Quick start manual, a detailed manual is on the enclosed CD or www.bitstream.com.pl

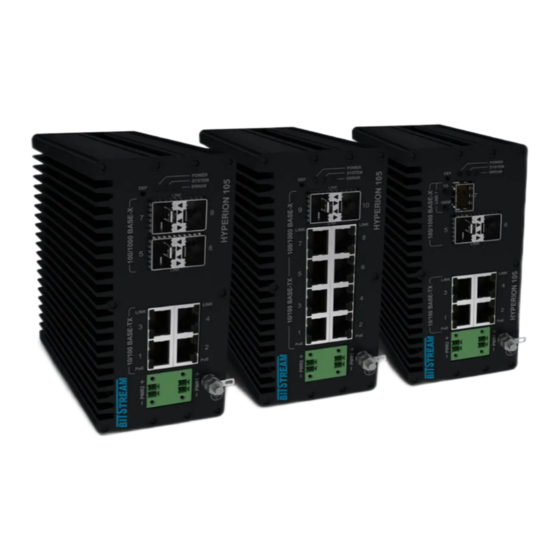

HYPERION-105
Industrial Ethernet Switch
1

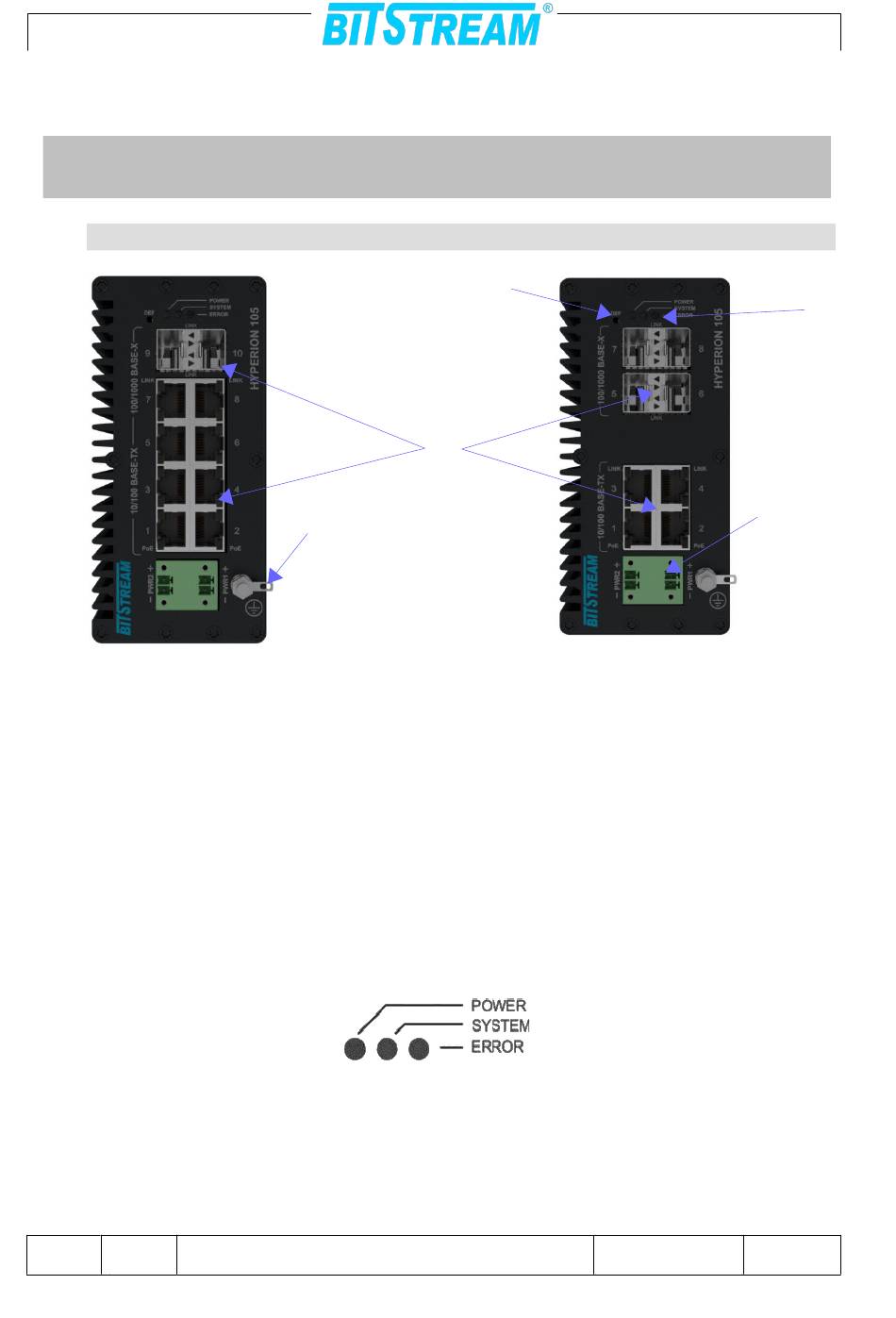

FRONT PANEL
1 – clamp with a screw
2 – Power connectors
3 – Ethernet ports – e.g. 8/4x RJ45 + 2/3/4x SFP
4 – DEF – button for restoring the default configuration
5 – Signalling LEDs
1.1
POWER – supply on PWR
SYSTEM – indicates correct operation of the device
ERROR – signals internal device and system errors
REV.
1.14
1
Fig 1.
Signalling LEDs
Signalling LEDs
Fig 2.
SHORT USER MANUAL HYPERION-105
4
3
Front panel Hyperion-105
2
2021.03.31
1/6
5
Advertisement
Table of Contents
Related Manuals for Bitstream HYPERION-105
Summary of Contents for Bitstream HYPERION-105
- Page 1 Quick start manual, a detailed manual is on the enclosed CD or www.bitstream.com.pl HYPERION-105 Industrial Ethernet Switch FRONT PANEL Front panel Hyperion-105 Fig 1. 1 – clamp with a screw 2 – Power connectors 3 – Ethernet ports – e.g. 8/4x RJ45 + 2/3/4x SFP 4 –...
- Page 2 Quick start manual, a detailed manual is on the enclosed CD or www.bitstream.com.pl Marking Fig. 3. Code Description of device connectors RJ-45 connectors. Fig 4. The look and numbering of leads in RJ45 connector REV. 1.14 SHORT USER MANUAL HYPERION-105...
- Page 3 Quick start manual, a detailed manual is on the enclosed CD or www.bitstream.com.pl The table shows the lay-out of particular signals for RJ-45 connectors Connector type: RJ-45 (PE1-PE8) Ethernet 10/100Mbit/s 1 (white/orange) RXAn Channel transmitter 2 (orange) RXBn 3 (white/green)
- Page 4 Quick start manual, a detailed manual is on the enclosed CD or www.bitstream.com.pl Description of SFP optical ports The device has slots for SFP modules. The range and type of optical connector depends on the type of SFP insert. SFP slots support 100Mbps, 1000Mbps and 2500Mbps.
- Page 5 CLI. If you enter the password incorrectly five times via telnet or CLI or by entering the %bitstream% command in the password field, a temporary code will be generated. The code must be forwarded to the BitStream Support Department available from 8:00 to 16:00 at 817438643 ext.
- Page 6 Quick start manual, a detailed manual is on the enclosed CD or www.bitstream.com.pl ACKING COMPLETION OF THE PRODUCT Hyperion-105 1 pcs. 2 User manual on CD 1 pcs. 3 Short user manual 1 pcs. 4 Declaration of confirmity 1 pcs.
