- Page 1 Drawing No. :- TPC365 Issue :- 7 Date :- 24/11/16 EBAC MODEL CD200 INDUSTRIAL DEHUMIDIFIER OWNER’S MANUAL www.eipl.co.uk CD200 OWNERS MANUAL...

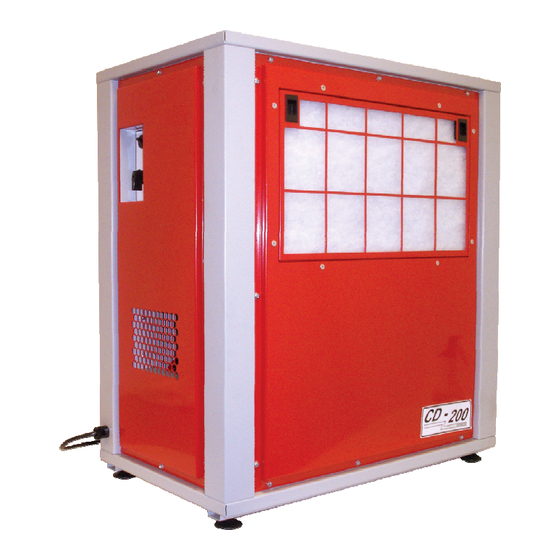

- Page 2 Do not discard the packing, it will be useful when transporting the dehumidifier unit in the future. INTRODUCTION The Ebac CD200 industrial dehumidifier removes moisture from the air through the refrigeration process. The Ebac CD200 is basically comprised of:...
-
Page 3: Specifications
Drawing No. :- TPC365 Issue :- 7 Date :- 24/11/16 SPECIFICATIONS Ebac CD200 832mm 745mm 445mm 80Kg Low 850 M High 1050 M 230V/50Hz/1ph Powder-coated Epoxy R407c CD200 OWNERS MANUAL... -
Page 4: Installation
Drawing No. :- TPC365 Issue :- 7 Date :- 24/11/16 INSTALLATION POSITIONING: Position the dehumidifier unit in the centre of the room to be conditioned if at all possible. However if a damp patch is particularly apparent the outlet grille should be pointed towards it if possible. - Page 5 Drawing No. :- TPC365 Issue :- 7 Date :- 24/11/16 OPERATION The following procedures should be followed to test the CD200 for correct operation: 1) After unpacking, examine all external features to confirm damage-free shipment. Report all defects and damage at once. Connect the power cable to a grounded power source. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Page 6 Drawing No. :- TPC365 Issue :- 7 Date :- 24/11/16 External Humidistat Option The CD200 has the option of using an external humidistat remotely mounted within a room, where available. In the control box there is a connector that can be wired to, which will enable the use of an external humidistat.
-
Page 7: Routine Service
Drawing No. :- TPC365 Issue :- 7 Date :- 24/11/16 ROUTINE SERVICE WARNING: ENSURE THAT THE POWER CORD TO THE MACHINE HAS BEEN DISCONNECTED BEFORE CARRYING OUT ROUTINE SERVICE. THE SERVICING AND REPAIR OF THIS UNIT SHOULD ONLY BE CARRIED OUT BY A SUITABLY QUALIFIED PERSON. - Page 8 Drawing No. :- TPC365 Issue :- 7 Date :- 24/11/16 REPAIRS Should an electrical component fail, consult the Factory Service Center to obtain the proper replacement part. If refrigerant gas is lost from the machine, it will be necessary to use a refrigeration technician to correct the fault.
-
Page 9: Troubleshooting
Drawing No. :- TPC365 Issue :- 7 Date :- 24/11/16 TROUBLESHOOTING EMEDY YMPTOM AUSE 1. Check the power from the power Unit inoperative 1. no power to unit supply panel 1. Tighten fan 1. Loose fan on shaft 2. Replace the fan motor 2. -
Page 10: Rating Plate Information
Drawing No. :- TPC365 Issue :- 7 Date :- 24/11/16 RATING PLATE INFORMATION ! ! ! ! 1250 Grams 230 Volts 3 KW Single 50 Hz " " " " 14 A CD200 OWNERS MANUAL... - Page 11 Drawing No. :- TPC365 Issue :- 7 Date :- 24/11/16 WARNINGS This appliance can be used by children from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the application in a safe way and understand the hazards involved.
- Page 12 Drawing No. :- TPC365 Issue :- 7 Date :- 24/11/16 CD200 OWNERS MANUAL...
- Page 13 Drawing No. :- TPC365 Issue :- 7 Date :- 24/11/16 CD200 OWNERS MANUAL...
- Page 16 DL14 9AD Germany Tel: +44 (0) 1388 664400 Tel: +01 757 873 6800 Tel: +49 3043 557241 Fax: +44 (0) 1388 662590 Fax: +01 757 873 3632 Fax: +49 3043 557240 www.eipl.co.uk www.ebacusa.com www.eip-ltd.de sales@eipl.co.uk sales@ebacusa.com sales@eip-ltd.de CD200 OWNERS MANUAL...
