Summary of Contents for EIP CD30E

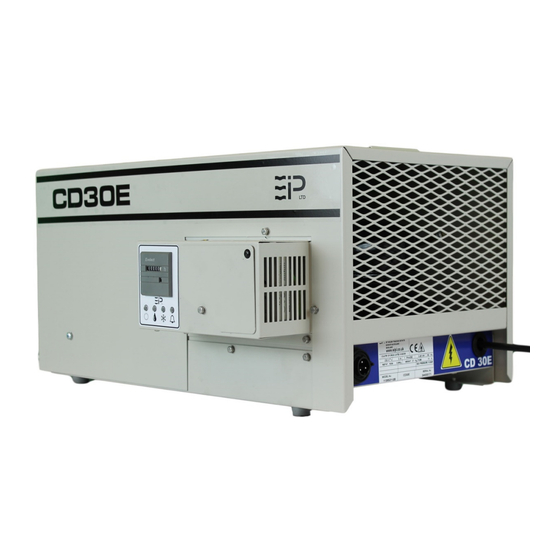

- Page 1 Drawing : - TPC523 Issue : - 2 Date : - 19/11/20 CD30 CD30 CD30 CD30E E E E DEHUMIDIFIER DEHUMIDIFIER DEHUMIDIFIER DEHUMIDIFIER OWNER’S MANUAL www.eipl.co.uk Page 1 of 12...
-
Page 2: Safety Information
Drawing : - TPC523 Issue : - 2 Date : - 19/11/20 SAFETY INFORMATION Children shall not play with the appliance. This appliance can be used by children from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the application in a safe way and understand the hazards involved. - Page 3 Drawing : - TPC523 Issue : - 2 Date : - 19/11/20 The appliance uses R290 refrigerant gas. This gas is much kinder to the environment as it is non-toxic with zero Ozone Depletion Potential (ODP). This is a flammable gas and the following warnings should be considered: •...
- Page 4 Drawing : - TPC523 Issue : - 2 Date : - 19/11/20 DEHUMIDIFIER PRINCIPLE Dehumidifiers remove moisture from the air that is circulating through the appliance. The resulting reduction of relative humidity helps prevent rust, rot, mould, mildew and condensation within the room, or other enclosed spaces where the dehumidifier is used.
-
Page 5: Installation
Drawing : - TPC523 Issue : - 2 Date : - 19/11/20 INSTALLATION POSITIONING: Position the appliance in the center of the room to be conditioned if at all possible. However, if a damp patch is particularly apparent the outlet grille should be pointed towards it. -
Page 6: Operation
Drawing : - TPC523 Issue : - 2 Date : - 19/11/20 OPERATION Once the appliance is installed turn the power supply on and note the unit starts. Then carry out the following: - • Check that the compressor is running •... - Page 7 Drawing : - TPC523 Issue : - 2 Date : - 19/11/20 Light Functions: The unit has four LED indicators, located on the side of the unit. The following lists the functions of these lights: 1 - ON / OFF Green solid –...
-
Page 8: Routine Service
Drawing : - TPC523 Issue : - 2 Date : - 19/11/20 ROUTINE SERVICE WARNING: ENSURE THE POWER CORD TO THE APPLIANCE IS DISCONNECTED BEFORE CARRYING OUT ROUTINE SERVICE. SERVICING AND REPAIR SHOULD ONLY BE CARRIED OUT BY A SUITABLY QUALIFIED PERSON. To ensure continued full efficiency of the appliance, maintenance procedures should be performed as follows: Clean the surface of the evaporator and condenser coils by blowing the... -
Page 9: Specifications
Drawing : - TPC523 Issue : - 2 Date : - 19/11/20 SPECIFICATIONS : CD30 ODEL : 300 mm (11.8 in) EIGHT : 350 mm (13.8 in) IDTH : 550 mm ( 21.7 in) ENGTH : 25 Kg (55.1 lb) EIGHT : 150 M /Hr (88.3 CFM) - Page 10 Drawing : - TPC523 Issue : - 2 Date : - 19/11/20 APPLIANCE SPARE PARTS LIST Description Part Number Appliance Number 10137GY-GB Compressor 3944962 By-Pass Valve 3020836 Condenser Coil 3020740 Evaporator Coil 1133501 Capillary 3014250 Filter Dryer 3020937 Fan Motor 3035752 Fan Blade 3040129 Control Humidistat 3035158 Alarm Humidistat 3035158...
- Page 11 Drawing : - TPC523 Issue : - 2 Date : - 19/11/20 Page 11 of 12...
- Page 12 Drawing : - TPC523 Issue : - 2 Date : - 19/11/20 UK Head Office American Sales Office Ebac Industrial Products Ltd Ebac Industrial Products Inc St Helens Trading Estate 700 Thimble Shoals Blvd. Bishop Auckland Suite 109, Newport News County Durham Virginia, 23606-2575 DL14 9AD...
