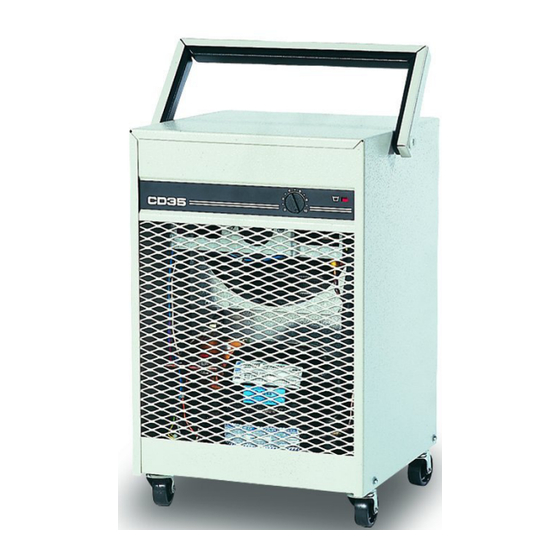

- Page 1 Drawing : - TPC508 Issue : - 1 Date : - 29/01/20 CD35S INDUSTRIAL DEHUMIDIFIER OWNER’S MANUAL www.eipl.co.uk Page 1 of 12...
-
Page 2: Package Contents
Drawing : - TPC508 Issue : - 1 Date : - 29/01/20 CD35S PACKAGE CONTENTS Item Description Quantity 10186SG-US Dehumidifier TPC508 Manual Page 2 of 12... - Page 3 : - 29/01/20 INTRODUCTION Designed for a wide range of applications, the CD35S is a rugged, compact unit which incorporates its own tank for collected moisture with an automatic shutoff once the tank is fully. Offices, shops, houses, restaurants and storerooms can be protected by this simple answer to humidity control.
-
Page 4: Specifications
Drawing : - TPC508 Issue : - 1 Date : - 29/01/20 SPECIFICATIONS : CD35S ODEL : 22” EIGHT : 13.5” IDTH : 14” EPTH : 57 lbs EIGHT : 170 CFM IRFLOW : 110V/ 60Hz/ 1 ph OWER UPPLY... -
Page 5: Unpacking And Installation
POSITIONING Single Room: Position the CD35S in the centre of the room to be dried. However, if a damp patch is particularly apparent, the outlet grille should be directed towards it. If the CD35S cannot be positioned centrally, a minimum space of 6”... -
Page 6: Routine Service
Drawing : - TPC508 Issue : - 1 Date : - 29/01/20 ROUTINE SERVICE WARNING: ENSURE THAT THE POWER CORD TO THE MACHINE HAS BEEN DISCONNECTED BEFORE CARRYING OUT ROUTINE SERVICE. THE SERVICING AND REPAIR OF THIS UNIT SHOULD ONLY BE CARRIED OUT BY A SUITABLY QUALIFIED PERSON. - Page 7 Drawing : - TPC508 Issue : - 1 Date : - 29/01/20 REPAIRS Should an electrical component fail, consult the Factory Service Center to obtain the proper replacement part. If refrigerant gas is lost from the machine, it will be necessary to use a refrigeration technician to correct the fault.
-
Page 8: Troubleshooting
Drawing : - TPC508 Issue : - 1 Date : - 29/01/20 TROUBLESHOOTING YMPTOM AUSE EMEDY 1. Check the power from Unit inoperative 1. No power to unit power supply panel 1. Tighten fan 1. Loose fan on shaft 2. Replace the fan motor 2. - Page 9 Drawing : - TPC508 Issue : - 1 Date : - 29/01/20 CD35S SPARE PARTS LIST Part Number Description 1137907 WATER CONTAINER 2013865 MICROSWITCH SUPPORT 2013866 MICROSWITCH LEVER 2017707 HUMIDEX 7 KNOB 2131107 HUMIDEX DRAIN TRAY 2139528 REFRIGERATION COIL SET...
-
Page 10: Limited Warranty
Drawing : - TPC508 Issue : - 1 Date : - 29/01/20 LIMITED WARRANTY Our products carry a one-year unconditional warranty against any defects in workmanship or material. This warranty will cover all parts and labour required to repair your Ebac product. This warranty is invalid if the unit has been abused, damaged, whether intentional or accidental, or if any modifications have been made to the unit. - Page 11 Drawing : - TPC508 Issue : - 1 Date : - 29/01/20 WARNINGS This appliance can be used by children from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the application in a safe way and understand the hazards involved.
- Page 12 DL14 9AD Germany Tel: +44 (0) 1388 664400 Tel: +01 757 873 6800 Tel: +49 3043 557241 Fax: +44 (0) 1388 662590 Fax: +01 757 873 3632 Fax: +49 3043 557240 www.eipl.co.uk www.ebacusa.com www.eip-ltd.de sales@eipl.co.uk sales@ebacusa.com sales@eip-ltd.de Page 12 of 12...
