Summary of Contents for CTC Union IFS-500C

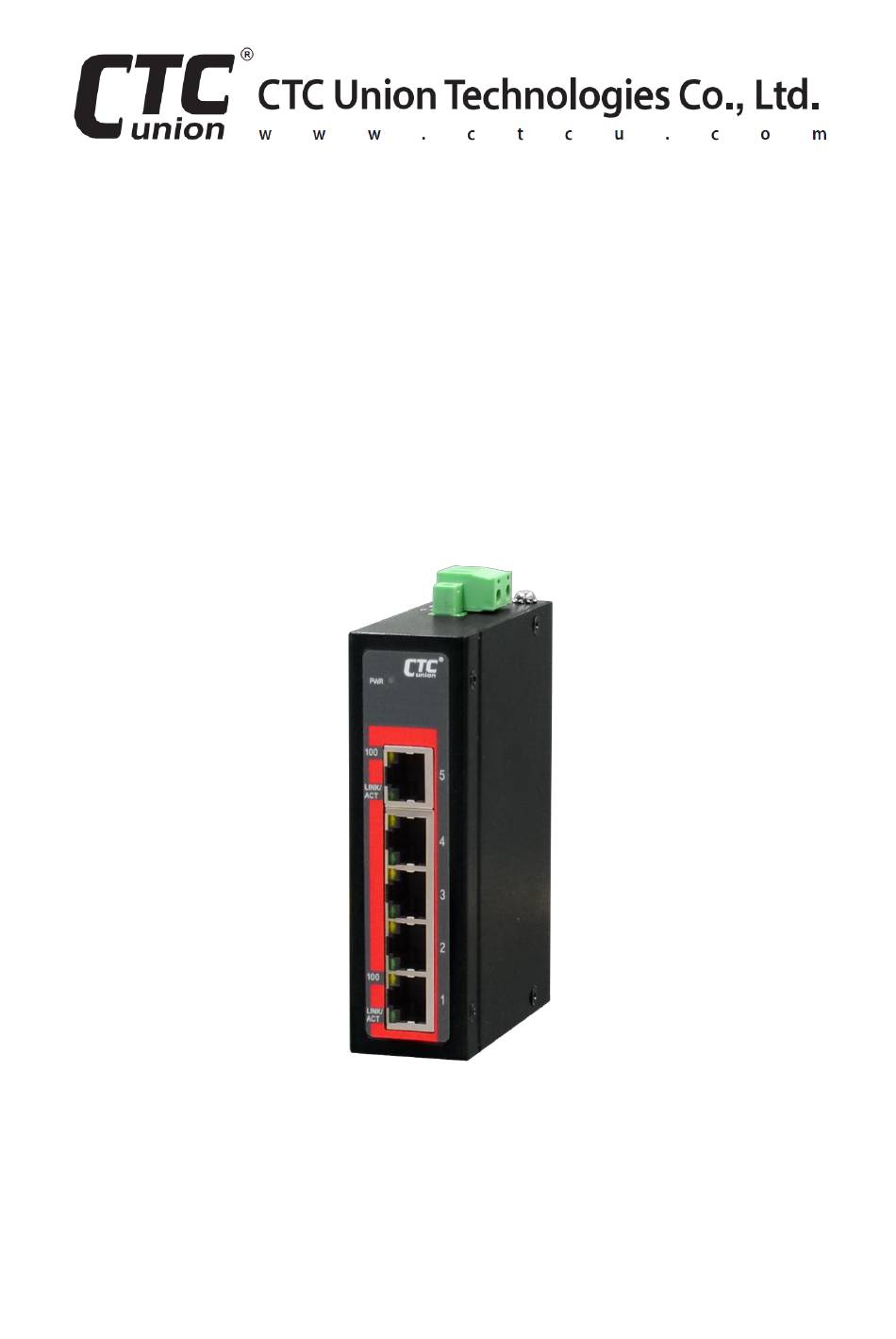

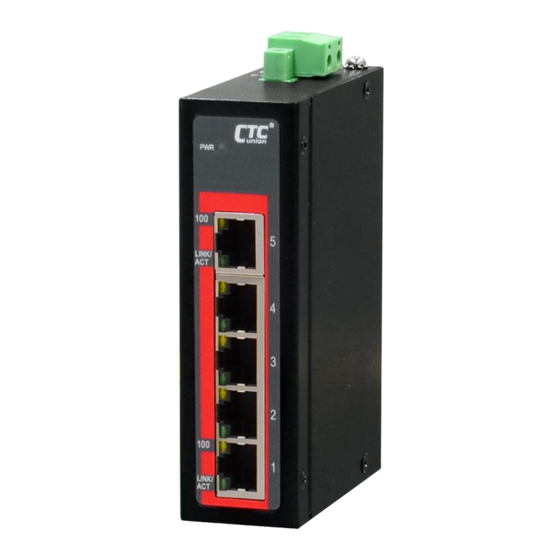

  • Page 1 Quick Installation Guide IFS-500C IFS-500C-E Industrial Grade Fast Ethernet Switches sales@ctcu.com...
  • Page 2 8F, No. 60 Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2022 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
  • Page 3 CTC Union Technologies makes no warranty, representation, or guarantee regarding the suitability of its products for any particular purpose, nor does CTC Union assume any liability arising out of the application or use of any product and specifically disclaims any and all liability, including without limitation any consequential or incidental damages.
  • Page 4: Table Of Contents

    Table of Contents Introduction .................. 5 Package List ................. 5 Features ..................5 Specifications ................6 .................... 6 THERNET NTERFACE ......................6 OWER ...................... 6 ECHANICAL ....................6 NVIRONMENTAL ....................7 ERTIFICATIONS MTBF (MIL-HDBK-217) ..................7 Panels ................... 8 LAN Connection ................9 DC Power Connection ..............
  • Page 5: Introduction

    Introduction IFS-500C & IFS-500C(-E) are unmanaged Fast Ethernet compact switches that support 10/100Base-TX Ethernet. Housed in rugged DIN rail or wall mountable enclosures, these converters are designed for harsh environments, such as industrial networking and intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.
  • Page 6: Specifications

     Dimensions: 70 mm (D) x 30 mm (W) x 103 mm (H)  Mounting: DIN-Rail mounting, Wall mounting (Optional)  Weight: 220g Environmental  Operating Temperature: -10°C~60°C (IFS-500C); -40°C~75°C (IFS- 500C-E)  Storage Temperature: -40°C~85°C  Humidity: 5%~95% (Non-condensing)
  • Page 7: Certifications

    Certifications  EMC: CE (EN55032, EN55035)  EMI (Electromagnetic Interference): FCC Part 15 Subpart B Class A, CE  Railway Traffic: EN50121-4  Immunity for Heavy Industrial Environment: EN61000-6-2  Emission for Heavy Industrial Environment: EN61000-6-4  EMS (Electromagnetic Susceptibility) Protection Level: ...
  • Page 8: Panels

    Panels Figure 2. Top Panel Figure 1. Front Panel Description Power terminal block Earth ground connector LAN connections Power LED indicator LAN Speed LED indicator LAN Link/Active LED indicator Earth ground sign...
  • Page 9: Lan Connection

    RJ-45 connectors which support Auto MDI/MDI-X. DC Power Connection IFS-500C & IFS-500C(-E) are powered up by an external power supply. On the top panel, a removable 2-pin terminal block (See Figure 2) is provided for DC power connection. To connect to the power supply, insert V+ and V- wire into power contacts.
  • Page 10: Led Indicators

    Lit if power is connected and active. Green Power is not connected. The connected LAN speed is 100M. Yellow The connected LAN speed is 10M. Blinking Blinking when there is Ethernet traffic. LNK/ Green The LAN link is down. Application Figure 5. IFS-500C-(E) Application...
  • Page 11: Installation

    Installation IFS-500C & IFS-500C(-E) compact switches can be installed in DIN rail or mounted on the wall. Hardware brackets for DIN rail installation are provided with the device. However, wall-mounting brackets are not provided. If you need wall-mounting installation kit, please contact your sales representative.
  • Page 12 Version Date Description 2020/7/31 Use new document format Revise spec. 2022/7/29 Add CE (EN55032, EN55035)

This manual is also suitable for:

Ifs-500c-e
