Hammond X-5 Service Manual

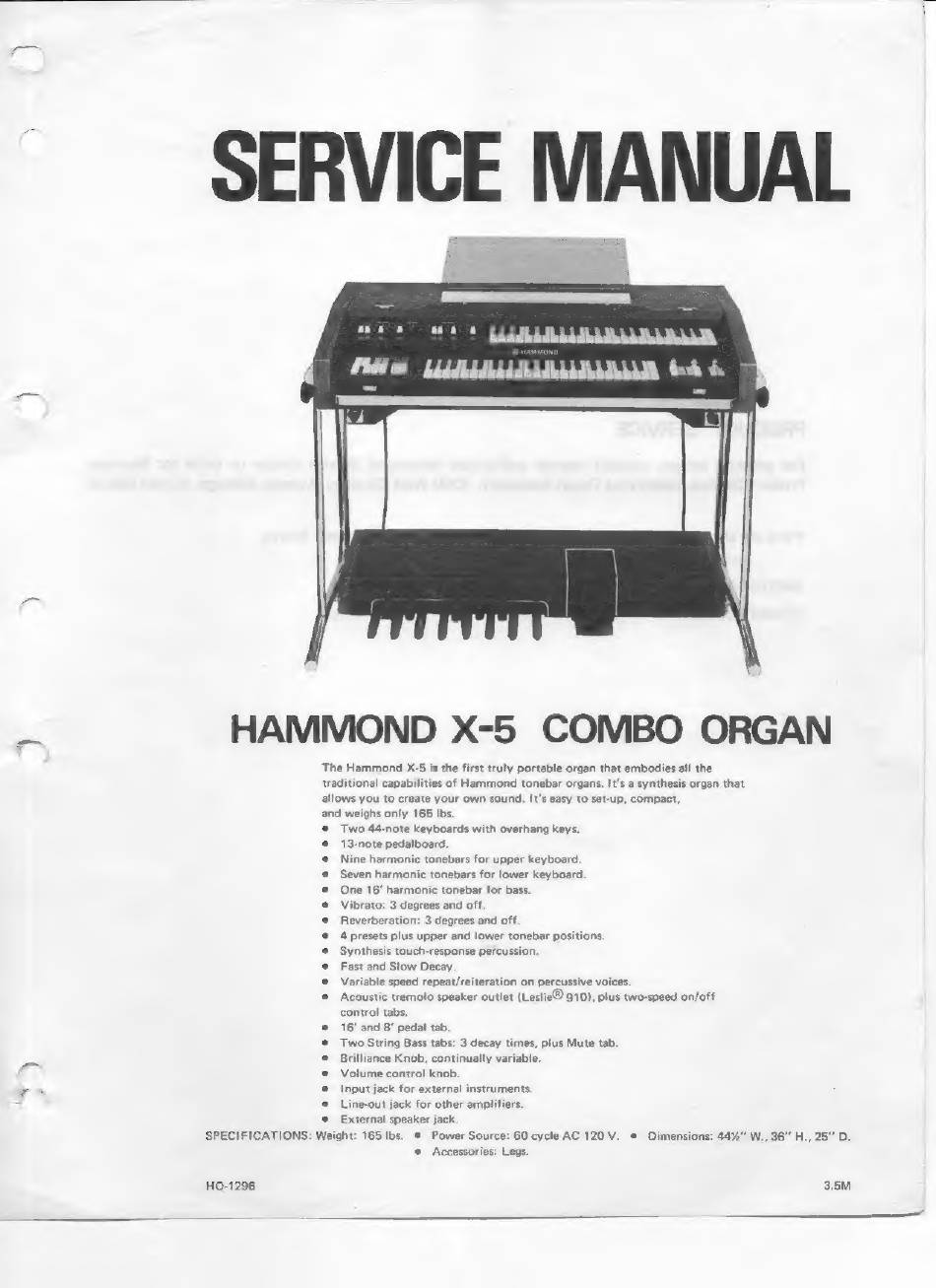

SERVICE MANUAL
вва в "á. Каа аја аы ЛХ А
Фі ва У dki kak kika] 4-4 á-

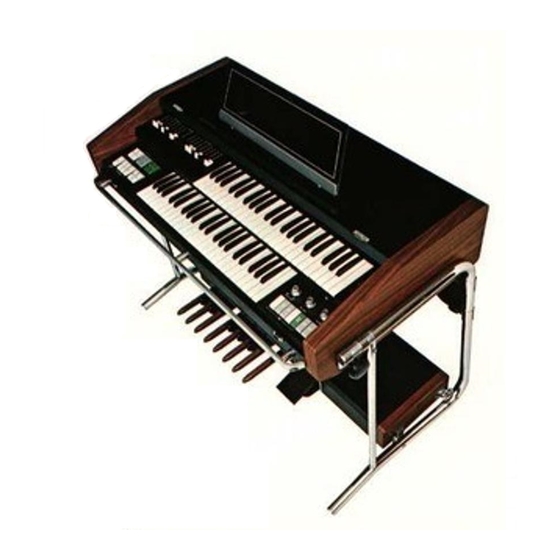

HAMMOND X-5 COMBO ORGAN
The Hammond X-5 is the first truly portable organ that embodies all the
traditional capabilities of Hammond tonebar organs. It's a synthesis organ that
allows you to create your own sound. It's easy to set-up, compact,
and weighs only 165 Ibs.
Two 44-note keyboards with overhang keys.
13-note pedalboard.
Nine harmonic tonebars for upper keyboard.
Seven harmonic tonebars for lower keyboard.
One 16' harmonic tonebar for bass.
Vibrato: 3 degrees and off.
Reverberation: 3 degrees and off.
4 presets plus upper and lower tonebar positions.
Synthesis touch-response percussion.
Fast and Slow Decay.
Variable speed repeat/reiteration on percussive voices.
Acoustic tremolo speaker outlet (Leslie 910), plus two-speed on/off
control tabs.
16' and 8' pedal tab.
Two String Bass tabs: 3 decay times, plus Mute таб.
Brilliance Knob, continually variable.
Volume control knob.
Input jack for external instruments.
Line-out jack for other amplifiers.
External speaker jack.
.,9.....0.0.0.0.0.9
SPECIFICATIONS: Weight: 165 Ibs. e Power Source: 60 cycle AC 120 V. e Dimensions: 44%" W., 36" H., 25" D.
* Accessories: Legs.
3.5M
