Hammond X-2 Service Manual

SERVICE MANUAL
HAMMOND X-2 COMBO ORGAN

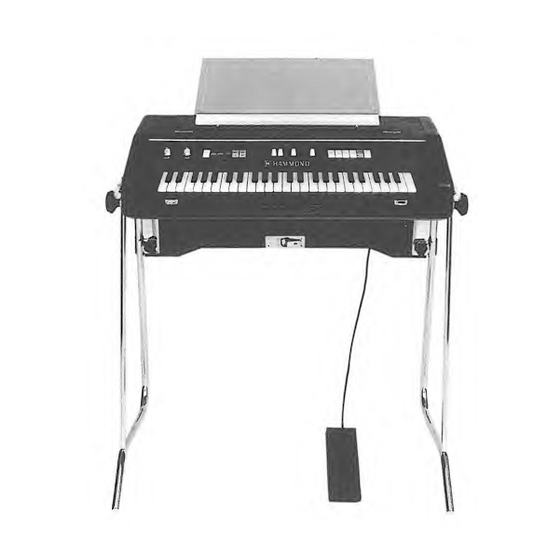

Create tone textures and sound with this new Hammond combo-size
synthesis tonebar organ. It's ultra-light, compact and flexible. The X-2 can
The X-2 can be used as a table-top organ, or placed on top of another organ
and played through that organ's amp. Or it can be placed on its legs,
hooked up to its swell (expression) pedal, plugged into an amplifier, and
used as a separate instrument. The organ is tuneable: a single knob
controls the pitch of all the notes simultaneously.
• One keyboard, 49 notes.
• Variable Pitch Control (Tuning).
• Nine harmonic tonebars.
• Synthesis Percussion with touch control.
• Four percussion harmonic tabs plus slow/fast decay and loud/soft tabs.
• Tibia and Brass Presets.
• Vibrato (3 degrees) and Delay Vibrato.
• Volume Control.
• Swell (Expression) Pedal.
SPECIFICATIONS: Weight: 44 lbs.
• Dimensions: With legs: 34
%"
W., 37" H., 23y2"
• Without legs: 341/*" W., 8" H., 181/*" D.
• Power Source: 115V, 60 cycle AC
• Accessories: Legs, Swell (Expression) Pedal.
HO-1297
3.5M
