Kogan KABIOV5F65A User Manual

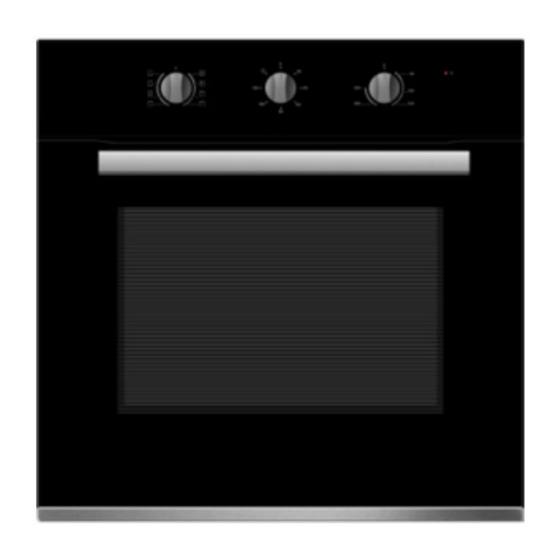

60cm electric built in oven (5 functions)
Hide thumbs

Advertisement

Table of Contents

60CM ELECTRIC BUILT IN
OVEN
(5 FUNCTIONS)
KABIOV5F65A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KABIOV5F65A and is the answer not in the manual?

Questions and answers

Related Manuals for Kogan KABIOV5F65A

Summary of Contents for Kogan KABIOV5F65A

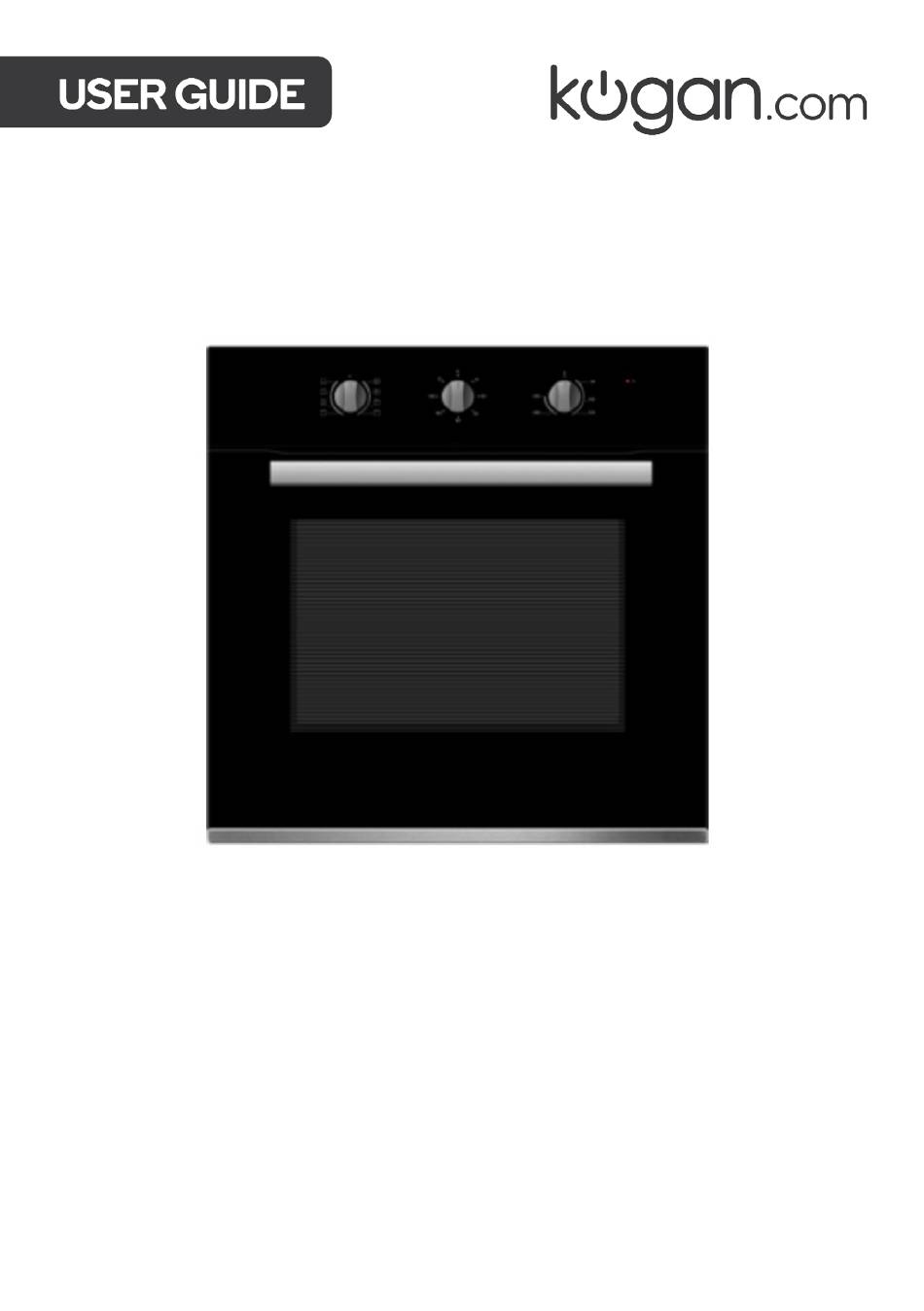

  • Page 1 60CM ELECTRIC BUILT IN OVEN (5 FUNCTIONS) KABIOV5F65A...

  • Page 2: Safety And Warnings

    • Accessible parts may become hot during use. Young children should be kept away. • If the power cord is damaged, cease use immediately and contact help.Kogan.com for support. • Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass as they can scratch the surface, which may result in shattering of the glass.
  • Page 3 • When unpacking the oven, ensure it is not damaged in any way. If the oven, power cord, or accessories are damaged, do not use the appliance and contact help.Kogan.com for support. • Keep packing materials such as plastic bags, polystyrene or nails out of the reach of...

  • Page 4: Installation

    INSTALLATION Space Requirements • Only plus deviations are admissible for all dimensions. • The cabinet is not including the power switch or socket. • The cabinet dimension is in mm.
  • Page 5 Ventilation Openings • When cooking is finished, if the temperature of the ventilation openings is over 70°C, the cooling fan will continue working. • The cooling fan will not stop working until the temperature is lower than 60°C. Ventilation Openings...
  • Page 6 Changing the Power Cord (Optional) This oven is equipped with a power plug that can be simply inserted into a grounded electrical outlet. To change the power cord or hardwire the oven, follow the steps below. WARNING: It is strongly recommended to have a licenced electrician change the power cord.
  • Page 7 Securing The Oven to The Cabinet Fit oven into the cabinet recess. Open the oven door and determine the location of the mounting screw holes. Secure the oven to the cabinet with two screws. Accessories Slider Bracket Wire Shelf Universal Pan...
  • Page 8 Wire Shelf: • For dishes, cake pans, and other containers used for roasting and grilling. • To ensure the oven shelves operate safely, correct placement of the shelves between the side rails is imperative. Shelves can only be used between the first and fifth rails. •...
  • Page 9 Slider Bracket: • For cooking larger food items. • The shelf rails on the right and left sides of the oven can be removed, so dishes and trays can be placed on the oven floor when using the Grill and Double Grill with Fan functions.

  • Page 10: Operation

    OPERATION Control Panel Function Knob Timer Knob Temperature Knob Functions Symbol Function Description Lamp Observe the progress of cooking without opening the door. The lamp will light for all cooking functions. The circulation of air at room temperature (without the use of any heat) enables quicker thawing of Defrost frozen food.
  • Page 11 Using the Oven Turn the Function knob to your preferred function. When setting a cooking time is necessary, turn the Timer knob clockwise to the desired time. Upon reaching the set cooking time, the timer will beep and automatically reset to ‘0’, and the oven will power off. If you do not need to set a cooking time, turn the Timer knob anti-clockwise to ‘...

  • Page 12: Cleaning And Care

    CLEANING & CARE Cleaning • To maintain an attractive appearance and ensure reliability, it's important to keep the oven clean. The contemporary design of the oven is engineered for minimal maintenance. Regular cleaning of the parts that come into contact with food is essential for hygiene and functionality.
  • Page 13 Removing The Door The removable door allows full access to entire interior of the oven for easier and quicker maintenance. To remove the door: Open the door to the maximum angle, then pull the buckle at the door hinge backward (Figure 1). Close the door to an angle approximately 15°.
  • Page 14 Push the glass into the position indicated by the arrow in Figure 5. Gently pull the glass out of the socket. After pulling out the inner glass, take out the middle layer glass as shown in Figure 6. Figure 5 Figure 6 When cleaning is completed, reverse the above procedure to return the door to its original position.

  • Page 15: Specifications

    SPECIFICATIONS Power Supply 220-240V~, 50Hz-60Hz Electric Power 3.0kW Lamp Power Cavity Volume 0.99kWh/cycle Electric, Cavity 0.89kWh/cycle Electric, Cavity Energy Efficiency Index Disposal This marking indicates that this appliance should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
  • Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
