Thank you for purchasing this quality product. Be sure to check all packing materials
carefully for small parts, which may have come loose during shipment. Identify and count
all items and compare with the parts list shown below. It is recommended to have two
people during assembling and to remove the back and base of the furniture out from the box.
Please follow the drawings below to assemble the item
NO.
A
Seat
B
Left Backrest
C
Middle Backrest
D
Right Backrest
E
Left ear
F
Right ear
G
Plug
ASSEMBLY INSTRUCTIONS
ORION COLLECTION
ITEM : U1769-30-BLK
DESCRIPTION :
Parts List
DESCRIPTION
All images shown are for illustration purpose only.
Actual product may vary due to product enhancement.
Page 1 of 2

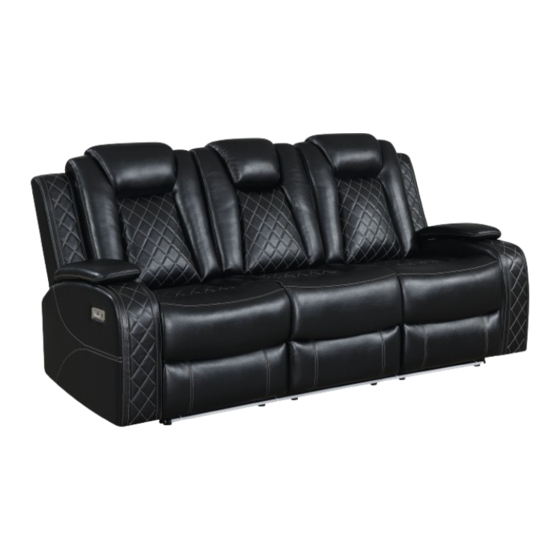

ORION SOFA WDUAL RECLINERS - BLACK
SKETCH
Q'TY
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
Advertisement
Table of Contents
Related Manuals for New Classic Furniture ORION U1769-30-BLK
Summary of Contents for New Classic Furniture ORION U1769-30-BLK
- Page 1 ASSEMBLY INSTRUCTIONS ORION COLLECTION ITEM : U1769-30-BLK DESCRIPTION : ORION SOFA WDUAL RECLINERS - BLACK Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose during shipment. Identify and count all items and compare with the parts list shown below.
- Page 2 ASSEMBLY INSTRUCTIONS ORION COLLECTION ITEM : U1769-30-BLK DESCRIPTION : ORION SOFA WDUAL RECLINERS - BLACK Step 2: Step 1: Attach the Left ear (E) and Right ear (F) to Attach Backrest (B/C/D) to the Seat (A) Left Backrest (B) and Right Backrest (D) Step 3: Open the footrest by pulling the handle.
