Please read these instructions carefully before beginning the assembly. Failure to understand and
follow assembly instructions may result in injury to technician and/or end user and may void the
warranty. If you have any questions call Sunrise Medical Technical Support at +1 (800) 333-4000.

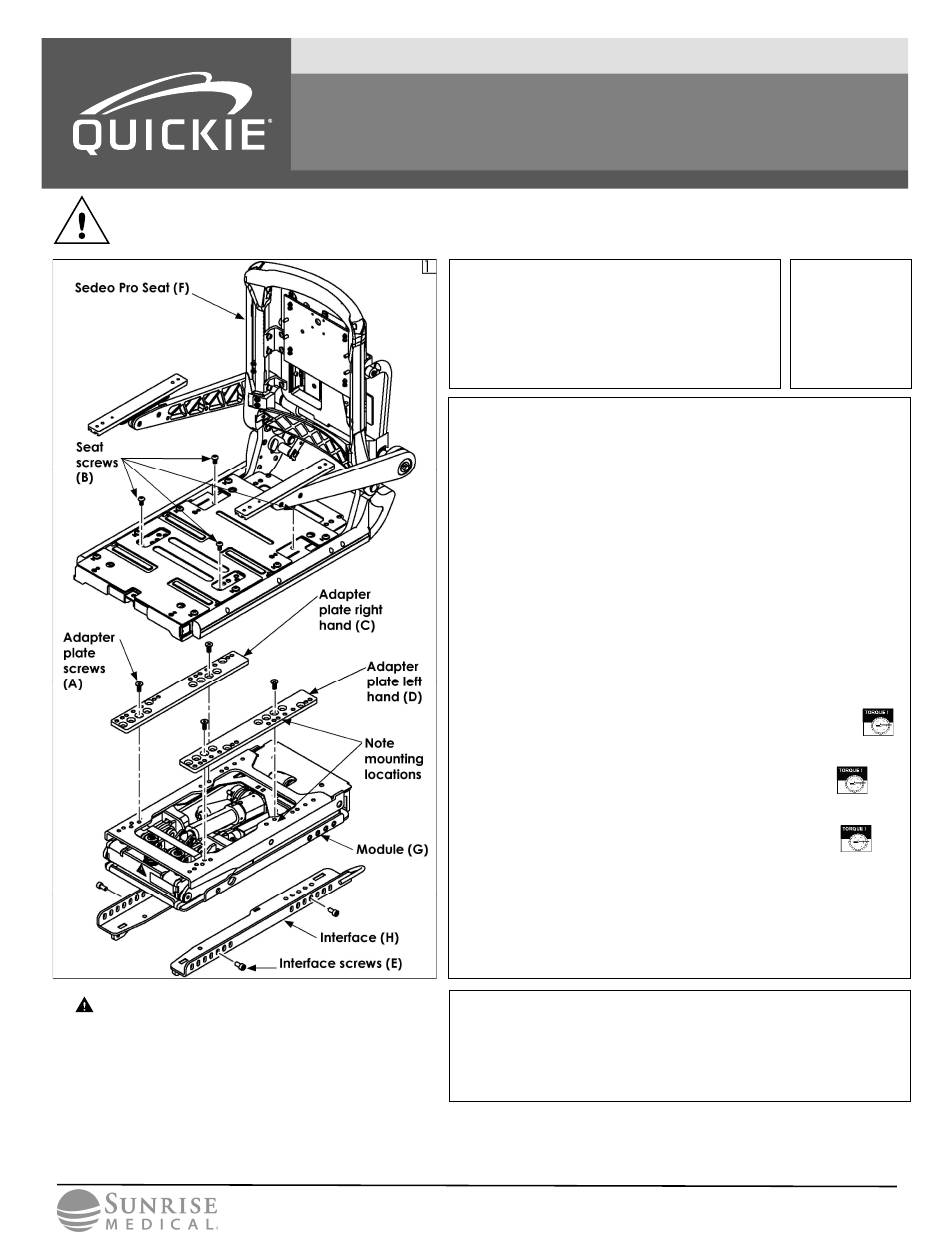

Sedeo Pro Seat (F)
Seat
screws
(B)
Adapter
plate
screws
(A)
DEALER/TECHNICIAN WARNING
Attention dealers and qualiÞ ed technicians, do not oper-
ate or service this device without Þ rst reading the owners
manual. If you do not understand the instructions and
warnings in the owners manual please contact the Quickie
Technical Service Department before operating and/or
servicing the Quickie device. Failure to do so may result in
damage and/or injury.
Find more information and important warnings in the wheel-
chair owner's manual or at: www.SunriseMedical.com.
1
Adapter
plate right
hand (C)
Adapter
plate left
hand (D)
Note
mounting
locations
Module (G)
Interface (H)
Interface screws (E)
Customer Service: +1 (800) 333-4000
In Canada (800) 263-3390
or visit www.SunriseMedical.com
Parts:
1.
4 ea Adapter plate screws (A)
2.
4 ea Seat screws (B)
3.
1 ea Adapter plate RH (C)
4.
1 ea Adapter plate LH (D)
5.
6 ea Interface screws (E)
6.
1 ea SEDEO Pro Seat (F)
7.
1 ea Module (Tilt, Lift, Tilt Lift Combo, Filler) (G)
8.
1 ea Interface (H)
A. REMOVE SEAT/ADAPTER PLATES/MODULE
1.
Remove Seat (F): Note position of seat screws (B) on the seat (F) as
well as the position to the adapter plates (C, D).
Remove the 4 seat screws (B) holding the seat to the adapter (C, D)
and remove the seat (F) (Fig 1). (Use 5mm hex key)
2.
Remove adapter plates (C and D): If your chair does not have
adapter plates (C, D) skip this step, move on to step 3. Note the
position of the adapter screws (A) to the plates (C, D) as well as to
the module (G). Remove the 4 screws (A) holding the adapter (C,
D) to the module (G) and remove the adapter plates (C, D) (Fig 1).
(Use 5mm hex key)
Note- tilt module is shown, but directions apply to all modules (lift,
tilt, tilt lift combo, or Þ ller).
3.
Remove module (G): Note the position of the interface screws (E) to
the interface (H) as well as to the module (G). Remove the 6 screws
(E) holding the module (G) to the interface (H) and remove the
module (G) (Fig 1). (Use 6mm hex key)
4.
Note position of all mounting locations if the seat depth is not
changing. If the seat depth is changing, see pages 2 to 7.
B. ASSEMBLE SEAT/ADAPTER PLATES/MODULE
1.
Assemble module (G) to the interface (H) using the interface
screws (E). See pages 2 and 6 for mounting location. Torque
to 13.6-14.9 Nm [120-132 in-lbs].
2.
Assemble adapter plates (C, D) to module (G). If adapter plates (C,
D) are not used, skip this step and move on to step 3. See
pages 3-6 for mounting location. Torque to 13.6-14.9 Nm
[120-132 in-lbs].
3.
Assemble seat (F) to the adapter plates (C, D) or the module (G)
using the seat screws (B). See pages 3-6 for mounting location,
and page 7 for seat depth detail. Torque to 13.6-14.9 Nm
[120-132 in-lbs].
C. INSPECT:
1.
All torque values with a torque wrench.
2.
Ensure that all the wire harnesses are out of the way and are not
being pinched.
3.
Verify that the harnesses are not put under tension in any position.
4.
Ensure the screws are mounted in the same location as they were
before removal or are mounted to new seat depth locations as
speciÞ ed in Mounting Matrices below.
Contents
Q300
M SEDEO
®
SEAT MOUNTING MATRIX
Required tools:
1.
2.
3.
© 2023 Sunrise Medical (US) LLC
08/2023
P/N 257045 Rev. A
PRO
®
5mm hex key
6mm hex key
Torque
wrench
Pg 1 of 7
