Pegaso
™
Powered Mobile Dock
Installation Guide

Advertisement

Table of Contents
loading

Related Manuals for Datalogic Pegaso

Summary of Contents for Datalogic Pegaso

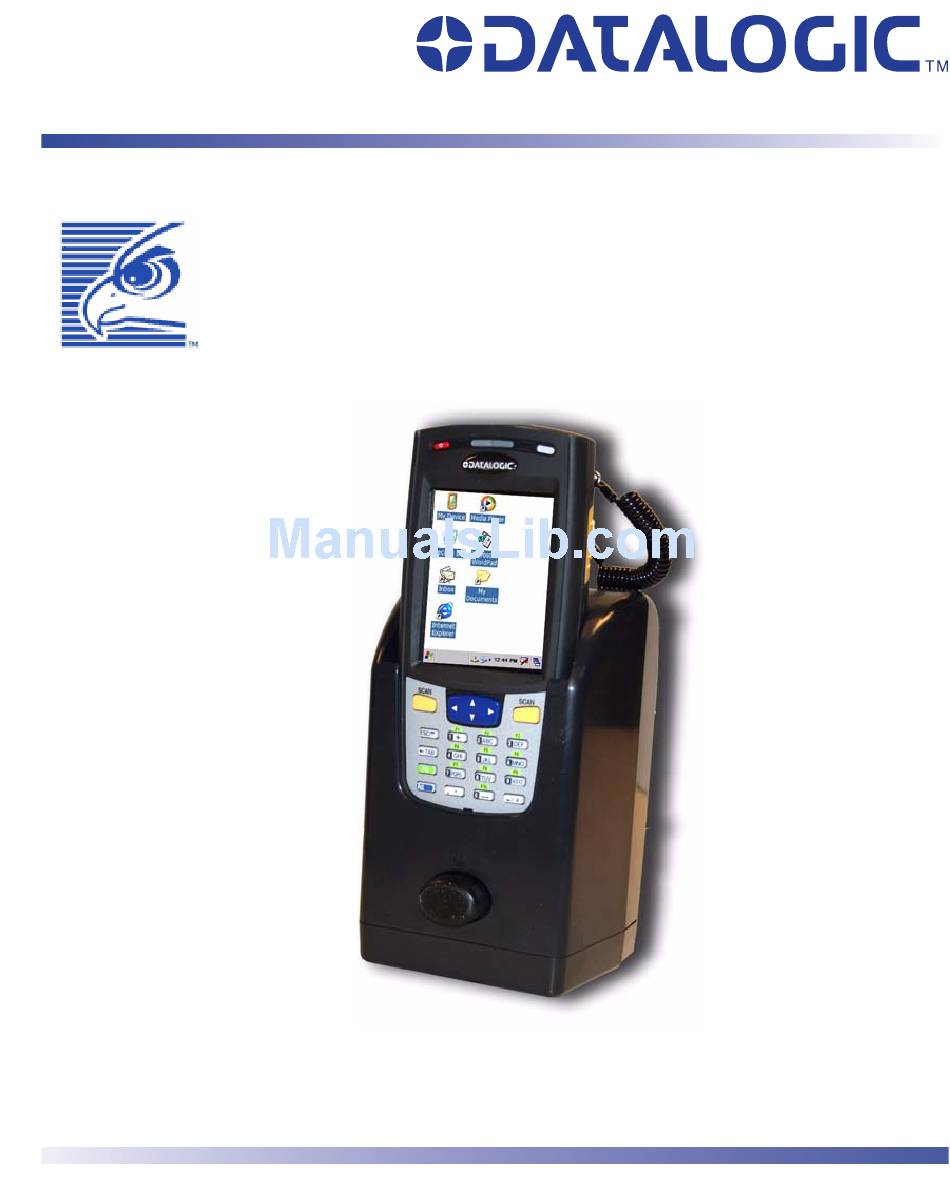

  • Page 1 Pegaso ™ Powered Mobile Dock Installation Guide...
  • Page 2 Datalogic Mobile, Inc 1505 Westec Dr. Eugene, Oregon 97402 Telephone: (541) 743-4800 Fax: (541) 743-4900 An Unpublished Work - All rights reserved. No part of the contents of this documentation or the procedures described therein may be reproduced or transmitted in any form or by any means without prior written permission of Datalogic Mobile, Inc. or its affiliates or subsidiaries ("Datalogic"...

  • Page 3: Table Of Contents

    Table of Contents... i Datalogic Pegaso™ Powered Mobile Dock Warranty ... iii Electrical Warnings, Safety Precautions & Regulatory Statements ... iv Safety Precautions ... iv Introduction ... 1 Manual Overview ...1 Document Conventions ...1 About the Powered Mobile Dock ...2 Features of the Powered Mobile Dock ...2...
  • Page 4 Technical Support ... 21 Datalogic Mobile Website Support ... 21 Reseller Technical Support ... 21 Telephone Technical Support ... 21 Appendix. Accessories and Peripherals ... 23 Overview ... 23 Index ... 27 Pegaso™ Powered Mobile Dock...

  • Page 5: Datalogic Pegaso™ Powered Mobile Dock Warranty

    Datalogic Pegaso™ Powered Mobile Dock Warranty Warranty Falcon products are guaranteed against defects in materials and workmanship for the period specified at the time of sale. This warranty shall apply to Falcon Portable Data Terminals (PDT's), Base Stations for the Falcon and Chargers for the Falcon. Cables, mounts and other accessory items are specifically war- ranted for a period of 90-days from product purchase.

  • Page 6: Electrical Warnings, Safety Precautions & Regulatory Statements

    Mobile Dock. However, there are some safety precautions you should take to protect the PDA from unnecessary damage. Do not place the Pegaso near a television or radio receiver. Keep the PDA away from magnets and from magnetic fields. CAUTION...

  • Page 7: Introduction

    Manual Overview • Chapter 1 (this chapter) provides an introduction to the features of the Powered Mobile Dock. • Chapter 2 specifies important electrical considerations to observe when installing the unit. • Chapter 3 contains instructions for mounting. • Chapter 4 describes the various peripheral connections made to the Dock, and their functions.

  • Page 8: About The Powered Mobile Dock

    About the Powered Mobile Dock The Powered Mobile Dock (PMD) is a rugged cradle for Pegaso PDAs, for use on mobile applications. This guide is intended to address some of the factors to consider when installing the PMD on gas, diesel, propane or electric pow- ered forklifts.

  • Page 9: Electrical Specifications

    Figure 1. Features of the Pegaso Powered Mobile Dock Release Button Electrical Specifications: • Input voltage range: +12 to +18V • Power consumption: <50 MA with no load • +5v available on COM port and as part of USB OTG Connection Unpacking Unpack the unit carefully and ensure you received everything you ordered.
  • Page 10 • Ram Ball Assembly • Assorted Screws • Any additional accessories required for your installation If any parts are missing, please contact your dealer or refer to “Troubleshoot- ing” on page 21 for Datalogic Mobile Technical Support contact information. Pegaso™ Powered Mobile Dock...

  • Page 11: Electrical Considerations

    Electrostatic Build-up One common characteristic of forklifts is the possibility of producing high lev- els of electrostatic voltage. Static is created by the wheels as they move about the floor and can also be generated when an operator slides on or off of a vehi- cle's cloth-covered seat.

  • Page 12: Ground Contact Anti-Static Straps

    This will provide an adequate level of redundancy, should one of the straps become dislodged from the lift. Ground Contact Anti-Static Straps should be checked at regular intervals to ensure proper installation or identify need for replacement. Ground Contact Anti-Static Straps Pegaso™ Powered Mobile Dock...

  • Page 13: Electrical Accessories

    Voltage step down device used to power the PDA from Used to provide backup DC power during sags or Provides automatic shut-off of power to a PDA or other equip- Used to suppress high voltage and RF voltage Forklift System Voltage...

  • Page 14: Electrical System Connections

    DC Conditioner/UPS (Optional) 5-Amp In-Line Fuse (Required) Delay Timer Use crimp connectors Noise/Spike Filter (Optional)* for all wire connections (Recommended) Pegaso™ Powered Mobile Dock Dock Power Cord Red (Pos) Black (Neg)

  • Page 15: Connection To +24V, +36V And +48V Systems

    Figure 5 illustrates a wiring diagram for +24, +36 and +48 volt systems. The use of a DC/DC converter is required to step down the battery voltage for use by the PDA. Proper installation requires that source power connections be made directly to the mobile platform’s positive and negative battery terminals.
  • Page 16 Electrical Considerations NOTES Pegaso™ Powered Mobile Dock...

  • Page 17: Mounting Options

    Install only on properly grounded mobile platforms. If this Dock is used on an electric vehicle, ensure that no part of the PMD and PDA can come into contact with the vehicle chassis. Electrical discharges can develop on these vehicles, which can damage the PMD and/or PDA.

  • Page 18: Components, Materials And Tools

    2. Secure the Ram Ball to the mounting area using the four supplied M3.5 x 15mm Phillips head screws. Ram Ball Assembly (sold separately) 1. Loosen the large adjustment knob handle on the Ram Ball assembly. 2. Remove both Ram Balls from the mount as demonstrated in Figure 8. Pegaso™ Powered Mobile Dock...

  • Page 19: Final Assembly

    Figure 8. Ram Ball Assembly Ram Balls 3. Use four screws (customer supplied) to secure one of the Ram balls to the desired mounting surface. Set the other Ram ball aside to use later in the assembly process. 4. Re-attach the Ram Ball Assembly to the Ram Ball you just affixed to the mounting surface.

  • Page 20: Inserting/Removing The Pegaso

    To insert a Pegaso into the Powered Mobile Dock, perform the following steps: 1. Slide the Pegaso into the Powered Mobile Dock. 2. Push gently downwards to insert the Pegaso until it is firmly seated in the Dock. Ram Ball...

  • Page 21: Removing The Pegaso From The Dock

    Removing the Pegaso from the Dock To remove the Pegaso from the Dock: 1. Grasp the Pegaso PDA with one hand, while pushing the Release Button with the other. 2. Lift the Pegaso straight upward to remove it from the Dock.
  • Page 22 Mounting Options Figure 11. Removing the Pegaso from the Dock Removal of the Pegaso from the Dock is complete. Pegaso™ Powered Mobile Dock...

  • Page 23: Power And Peripheral Device Connections

    This chapter describes connection of peripheral devices that are provided with or available for the Pegaso PMD system. For more on power connections, see “Electrical Considerations” starting on page 5. Connections on the Dock Figure 12 shows the connection located on the bottom of the dock. See the following pages for more information about these connections.

  • Page 24: Battery Charging

    Datalogic sales for additional information. Battery Charging The PMD provides battery charging for the Pegaso PDA when powered. The Pegaso will charge its installed battery when power is applied to the Powered Mobile Dock. COM Port Connection The PMD includes a powered DTE serial port connection to allow the Pegaso PDA to communicate with peripherals, such as a handheld scanner or a porta- ble printer.

  • Page 25: Usb Connection

    USB Connection The Pegaso Powered Mobile Dock includes a USB OTG connection (shown in Figure 12 on page 17) to allow the Pegaso PDA to communicate with peripherals such as handheld scanners and printers. The USB port is automat- ically configured to function as a USB host or client device when the proper cable is inserted into the Mini AB connector.
  • Page 26 Power and Peripheral Device Connections NOTES Pegaso™ Powered Mobile Dock...

  • Page 27: Appendix. Troubleshooting

    • When power to the unit is turned on, a light will appear on the Dock. Refer to the Pegaso Quick Reference Guide (QRG) for information about pow- ering on the Pegaso and a description of its LED functions. Technical Support Datalogic Mobile Website Support The Datalogic Mobile website (www.mobile.datalogic.com) is the complete...
  • Page 28 Troubleshooting NOTES Pegaso™ Powered Mobile Dock...

  • Page 29: Appendix. Accessories And Peripherals

    Overview Installation of the PMD may require accessory electronic equipment for proper and safe operation. Contact your reseller or Datalogic sales for informa- tion about availability. Table 3. Pegaso Mobile Dock Accessories Item Installation Guide Accessories and Peripherals Pegaso Powered Mobile Dock (Mounting hard- ware not included) Mount, RAM Base w/ 1.5"...
  • Page 30 Mount, RAM 3.5" 2x Socket, 1.5" Ball Mount, RAM 6" Base Plate Mount, RAM 7.35" Assy w/ 2x 1.5" BALLs Kit, RAM Mount, Base w/ 1.5" ball, 5.5" socket, 2.5" wide clamp w/1.5" ball. (Includes one each) Pegaso™ Powered Mobile Dock...
  • Page 31 Overview Item Description Mount, RAM 5.25" Assy w/ 2x1.5" BALLs Power Cord, Bare lead, 8' DC Converter, 18-55VDC IN / 13.8V 10Amp Out DC Noise Spike Filter, 4-60VDC, 8Amp Kit, Inline Fuse 5 Amp Installation Guide...
  • Page 32 Accessories and Peripherals NOTES Pegaso™ Powered Mobile Dock...

  • Page 33: Index

    +12V and +24V Systems +36V and +48V Systems Accessories Overview Attaching the Pegaso to a Dock Document Conventions Overview Electrical Accessories AC Power Adapter DC Conditioner DC/DC Converter Delay Timer Noise Spike/RF Filter Electrical Accessory Matrix Electrical Specifications Electrical warnings...
  • Page 34 Index Safety precautions Static Build-up on a Forklift Frame Style conventions The Ram Ball Mount Troubleshooting Power Unpacking Warranty Wiring Diagram for +12V and +24V Systems Wiring Diagram for +36V and +48V Systems Pegaso™ Powered Mobile Dock...
  • Page 36 Corporate Headquarters Datalogic S.p.A. Via Candini, 2 40012 Lippo di Calderara di Reno Bologna - Italy Telephone: +39 051 3147011 Fax: +39 051 726562 www.mobile.datalogic.com Datalogic Mobile, Inc. 1505 Westec Dr. Eugene, OR 97402 Telephone: (541) 743-4800 Fax: (541) 743-4900 ©2008 Datalogic Mobile, Inc.
