INSTALLATION DETAILS
▪ Recommended crew (Adult): 2
▪ Installation time: 4 hr (8 man hrs)
▪ User age: 5-12
▪ Use zone: 72" from all edges of slide
▪ Weight:
SURFACING: Use of safety surfacing in compliance with
ASTM specification F1292 is required.
MAINTENANCE:
▪ As the owner of the playground, you are responsible for
maintenance of the equipment and play area. A
maintenance schedule must be developed, and the
equipment inspected frequently. A maintenance section
that includes component specific maintenance
requirements is included at the end of this manual.
▪ Be sure to inspect surfacing for foreign objects that could
cause injury and that enough surfacing is in place in
accordance with ASTM and CPSC standards.
January 28, 2020

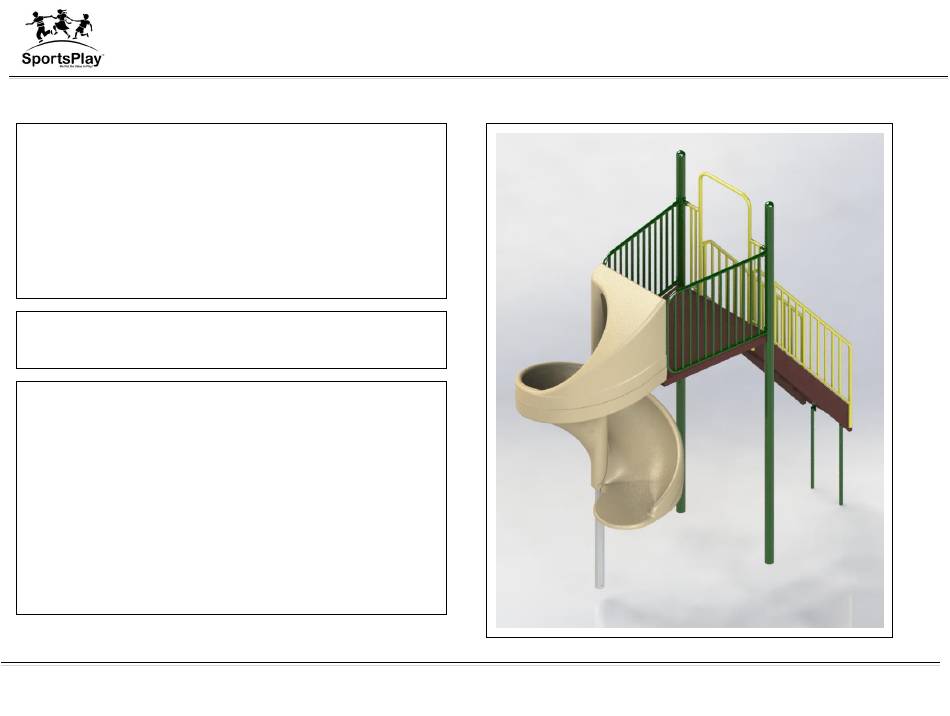

902-294 ORIGINAL 6' INDEPENDENT SPIRAL SLIDE
INSTALLATION INSTRUCTIONS
1
Advertisement
Related Manuals for SportsPlay 902-294
Summary of Contents for SportsPlay 902-294
- Page 1 902-294 ORIGINAL 6’ INDEPENDENT SPIRAL SLIDE INSTALLATION INSTRUCTIONS INSTALLATION DETAILS ▪ Recommended crew (Adult): 2 ▪ Installation time: 4 hr (8 man hrs) ▪ User age: 5-12 ▪ Use zone: 72” from all edges of slide ▪ Weight: SURFACING: Use of safety surfacing in compliance with ASTM specification F1292 is required.
- Page 2 902-294 ORIGINAL 6’ INDEPENDENT SPIRAL SLIDE INSTALLATION INSTRUCTIONS PARTS LIST PART # DESCRIPTION 435-623 Spiral Slide 126-704 3/8” x 3” Button Head Bolts NOTE: Keep a copy of these instructions on file to assist you 516-200 3/8” Togglers 903-201 Spiral Slide Filler Angle with maintenance and replacement parts.
- Page 3 902-294 ORIGINAL 6’ INDEPENDENT SPIRAL SLIDE INSTALLATION INSTRUCTIONS January 28, 2020...
- Page 4 902-294 ORIGINAL 6’ INDEPENDENT SPIRAL SLIDE INSTALLATION INSTRUCTIONS FOOTING INFORMATION ▪ Total footing depth is 24” less the height of the surfacing plus the height of the blocking material. If you are using 12” of surfacing the footing hole would need to be 12” plus the height of the blocking material (refer to both the side and front cutaway views to the right).
- Page 5 902-294 ORIGINAL 6’ INDEPENDENT SPIRAL SLIDE INSTALLATION INSTRUCTIONS January 28, 2020...
-
Page 6: Specifications
902-294 ORIGINAL 6’ INDEPENDENT SPIRAL SLIDE INSTALLATION INSTRUCTIONS SPECIFICATIONS INSTALLATION TIPS & TROUBLE SHOOTING ▪ Deck-12 GA HRPO steel ▪ SportsPlay Equipment Inc. recommends pre-drilling the holes in the post when attaching a four-hole bracket with a ▪ Deck Coating – Electrostatically applied & oven cured number #7 drill bit. -
Page 7: Before You Begin
902-294 ORIGINAL 6’ INDEPENDENT SPIRAL SLIDE INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN Detail A In addition to the components on the packing list you will need a level, blocking material, 9/16 wrench, shovel, Tape measure, drill with a ¾” Drill bit and a #7 Drill bit, and a post hole digger. - Page 8 902-294 ORIGINAL 6’ INDEPENDENT SPIRAL SLIDE INSTALLATION INSTRUCTIONS INSTALLATION STEPS CONTINUED __7) Attach the Arch Entry to the deck: Attach the arch entry (16) to the deck (9) using two 3/8” x 1” button head bolts (24), four 3/8” flat washers (26), and two 3/8” Nylon lock nuts (27). Do Detail C not tighten completely.
- Page 9 902-294 ORIGINAL 6’ INDEPENDENT SPIRAL SLIDE INSTALLATION INSTRUCTIONS INSTALLATION STEPS CONTINUED __9) Attach Independent Handrails: Attach the two independent slide handrails (15) to the arch entry (16) and steps (13). Attach the Detail E handrail to the arch entry using two 3/8” x 1 ¾” button head bolts (25) and two 3/8”...
- Page 10 902-294 ORIGINAL 6’ INDEPENDENT SPIRAL SLIDE INSTALLATION INSTRUCTIONS INSTALLATION STEPS CONTINUED __12) Completely tighten other bolts: With the arch entry positioned, the steps and handrails bolts can be completely tightened. __13) Attach Transfer Point Inside Legs: Place the two Transfer Point Inside Legs (14) into holes previously dug for them.
- Page 11 902-294 ORIGINAL 6’ INDEPENDENT SPIRAL SLIDE INSTALLATION INSTRUCTIONS INSTALLATION STEPS FOR SPIRAL SLIDE 2 __15) Set Spiral Slide Post: The spiral slide post is inside the slide. Measure from the lip of the slide where the Transition Deck attaches to the bottom of the post in the Spiral Slide (1). This...
- Page 12 902-294 ORIGINAL 6’ INDEPENDENT SPIRAL SLIDE INSTALLATION INSTRUCTIONS INSTALLATION STEPS CONTINUED __17) Attach the Walls to the Posts and Spiral Slide: The top of the Wall (10) for Spiral Slide should be 38” from the top surface of the deck (9) to the top of the Wall. Slide a four 4-Hole brackets onto the wall nubs.
- Page 13 902-294 ORIGINAL 6’ INDEPENDENT SPIRAL SLIDE INSTALLATION INSTRUCTIONS __11) Install the Spiral Slide Filler Angle: Attach the two Spiral Slide Filler Angles (4) with two togglers (3), two 3/8” x 1 ¾” (25) button head bolts, and two 3/8” flat washers (26). The Spiral Slide Filler Angles attach to the top of face of the Spiral Slide to prevent string entanglements.
- Page 14 902-294 ORIGINAL 6’ INDEPENDENT SPIRAL SLIDE INSTALLATION INSTRUCTIONS INSTALLATION STEPS CONTINUED __21) Pour concrete: When the independent spiral slide has been installed has verified that the entire playground is level, add the concrete to the footing holes. Use concrete with a minimum 2,500 psi and mix the concrete per the manufacturer’s directions...
