Summary of Contents for SportsPlay Jeremy 911-116-N

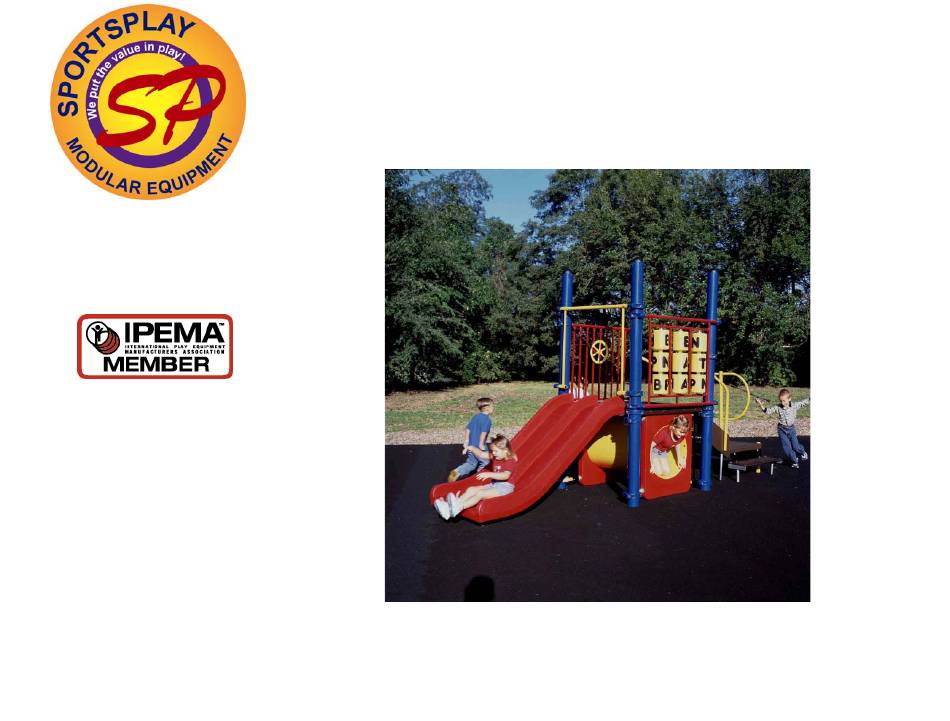

- Page 1 911-116-N Model Jeremy 800-727-8180 www.sportsplayinc.com Page 1...
-
Page 2: Table Of Contents
Top of Surfacing Label ............35 INDEX Warning Label ..............35 Manufacturer Label............. 35 INDEX ..................2 Trouble Shooting ..............36 Tool and Material Checklist............3 Safety Checklist ..............37 Introduction................4 Photo Appendix ..............38 Quick Guide ................5 Maintenance Checklist............ -
Page 3: Tool And Material Checklist
• Small, skinny, flat shims are helpful in raising posts etc. 2” by 4” and 2” by 6” and Plywood are also helpful Tool and Material Checklist • Pencils and markers • String line • To dig holes, the best method is a tractor with an auger. •... -
Page 4: Introduction
BEFORE STARTING INSTALLATION OF YOUR PLAYGROUND, PLEASE READ INSTRUCTIONS All SportsPlay Equipment play events have been engineered to THOROUGHLY. meet all applicable safety guidelines, but if installed improperly, these problems may occur: SITE REQUIREMENTS: •... -
Page 5: Quick Guide
Use both to identify, inventory and best position instructions. the parts around the perimeter of the area. If you find damaged or parts missing, contact your SportsPlay Distributor BRACING – As the decks and kick plates are installed, be immediately. - Page 6 MAINTENANCE - Consult your instruction booklet for the maintenance checklist. Schedule and complete periodic maintenance checks of the entire playground. If any hardware is worn, or any item missing or broken, close the playground and contact your SportsPlay distributor for replacement parts. Page 6...
-
Page 7: Safety Surfacing/Fall Heights
Safety Surfacing/Fall Heights 1. 12” below existing grade 2. 6” below and 6” above existing grade You must consider the type of safety surfacing you will use 3. 12” above existing grade before beginning the installation process. There are two general types, organic/loose fill or synthetic unitary. - Page 8 Safety Surfacing Chart Chart taken from The Handbook for Public Playground Safety written by the U.S. Consumer Product Safety Commission Table – Critical heights (in feet) of Tested Materials (CPSC) page 5 (www.cpsc.gov). Material Uncompressed Compressed Depths Depths 6” 9” 12”...
-
Page 9: Punch List
as necessary to make the lines level. Repeat this for the Punch List remaining two posts. Step 1: Layout Step 3: Deck and Post Installation 1. Lay square deck on ground in the desired location and 1. Measure 36” plus the amount of safety surfacing you measure from all corners to insure there is adequate are planning on using (example: 36”... - Page 10 3. Now install the Triple Rail Slide per instructions page 27. Level and tighten. Make sure water drains out of slide bedway and the slide guard is level, then tighten. 4. Install Guard wall per instructions page 29. 5. Install Steering wheel per instructions page 31. 6.
-
Page 11: Top Down View
Top Down View Accurate scale drawings have been included at the end of these instructions for your convenience. Page 11... -
Page 12: Footing Diagram
Footing Diagram Page 12... -
Page 13: Post Installation
• Use a marker to mark 22” from bottom of posts. Use Post Installation these marks so you can run a 4’ level across marks to make sure the tops of the posts are equal to each other. Footing size may vary due to local soil and weather conditions. If line marks are on bubble, then post tops should be on Base of footing MUST be below the frost line. - Page 14 Side view of installed post Page 14...
-
Page 15: Deck And Pipe Clamp Installation
Deck and Pipe Clamp Installation Deck Clamp 903-002 Item Part # Part Description Quantity 105-025 Clamp half FRONT 105-026 Clamp half BACK 116-600 1/2” x 2 1/2” Button Head Bolt 196-550 Roll Pin 1/4” x 1 3/4” 236-601 3/8” T-Nut 196-555 Roll Pin 1/4”... -
Page 16: Deck Clamp Plan
Deck Clamp Plan: IMPORTANT: Extra roll pins can be installed through certain high traffic clamp applications such as firepoles, roof clamps, The deck clamps connect to the main upright posts according handholds, etc. Finally smooth down any drill holes etc., with to the deck height(s) located on the Top Down View. -
Page 17: Pipe Clamp Plan
Pipe Clamp Plan: If the clamp is crooked to the pipe, and the pipe WILL NOT be able to enter the clamp. Sometimes, you can coax the clamp The pipe clamps connect to the main upright posts according to onto the pipe with a rubber hammer. If that will not work, take the height of the events found on the Top Down View. - Page 18 etc. Finally smooth down any drill holes etc., with steel wool or a file. SPECIFICATIONS: Event: Clamps shall be 606ITS aluminum fastener for 5” OD posts weighing 2.21 lbs. Paint shall be elecrtostatically applied oven cured powdercoat. Hardware: Stainless Steel tamper resistant MAINTENANCE: Touch up any marred paint surfaces.
-
Page 19: Deck Installation
Deck Installation Square Deck Item Part # Part Description Quantity 905-705 Square Deck 903-002 Deck Clamp Assembly 316-801 1/2” Washer 226-801 1/2” Lock Nut 126-703 3/8” x 1” Button Head Bolt Triangle Deck Item Part # Part Description Quantity 903-002 Deck Clamp Assembly 905-710 Triangle Deck... -
Page 20: Deck Plan
Deck Plan: Paint: Oven cured plastisol The deck(s) connect to the main upright posts according to the specifications found on the Top Down View. Hardware: Stainless Steel tamper resistant INSTRUCTIONS: MAINTENANCE: There are two methods: Touch up any marred paint surfaces. The BEST method is to make a table or stand to place your Periodically check hardware for integrity and tightness. -
Page 21: Transfer Station 902-258
Transfer Station 902-258 Item Part # Part Description Quantity 905-704 Transfer stairs 905-715 Transfer deck 905-716 Transfer step 913-224 Plank leg 913-225 Pipe w/ hand holds 913-226 Support pipe 903-001 Pipe clamp 913-227 Hand rail left 913-228 Hand rail right 913-230 Inside leg 105-016... - Page 22 Page 22...
-
Page 23: Transfer Station Plan
Transfer Station Plan: 10. The bottom end of transfer step is blocked up vertically and horizontally on bubble. The transfer station connects to a deck side. Consult the Top 11. Determine on which side the step plank will be located Down View for proper placement of the event. - Page 24 by 2” button bolts, washers on both sides, and (4) lock nuts underneath. 23. Install (2) re-bars in the bottom holes of these pipes. 24. Install the assembly into the ground holes, so that the top of the 27” angle plate matches to the holes in side of the bottom of the transfer assembly, and so your ground holes are correct so that they are on bubble and in middle of their holes etc.
-
Page 25: Crawl Tunnel 902-307
Crawl Tunnel 902-307 Item Part # Part Description Quantity 435-638 Crawl Tunnel 903-001 Pipe clamp Crawl Tunnel is factory assembled. Installers need only to attach the event to the upright posts. Please refer to Pipe Clamp Instructions for additional information. Page 25... -
Page 26: Crawl Tunnel Plan
Crawl Tunnel Plan: Periodically check hardware for integrity and tightness. Superficial scarring of the plastic can be ‘healed’ by gentle use The Crawl Tunnel connects to the playground below the deck of a heat gun or torch. with the openings directly below the Guard Wall and Wheel and Alpha Panels. -
Page 27: Triple Rail Slide 902-203
Triple Rail Slide 902-203 Item Part # Part Description Quantity 435-612 3’ Triple Rail Slide 905-204 Connector Plate 903-103 48” Slide Guard 903-001 Pipe Clamp 903-214 T Legs 126-704 3/8” x 3” Button Head Bolt 126-702 3/8” x 3/4” Button Head Bolt 226-602 3/8”... -
Page 28: Triple Rail Slide Plan
Triple Rail Slide Plan: SPECIFICATIONS: The Triple Rail Slide connects to the deck via a plastisol coated Event: Triple Rail Slide shall be constructed of 3/8” double connector plate. The connector plate attaches to the top of the wall construction has plastisol coated connector plate to deck deck holes which are 15”... -
Page 29: Guard Wall 902-135-W
Guard Wall 902-135-W Item Part # Part Description Quantity 913-117-W Guard Wall /fitting 903-001 Clamps 196-807 3/8” x 3/8” Socket Set Screw 196-550 1/4” x 3/4” Roll Pin 236-601 3/8” T-Nut 126-706 3/8” x 1 3/4” Button Head Bolt Page 29... -
Page 30: Guard Wall Plan
Guard Wall Plan: The 10 Rung Guard Wall attaches above the deck to the “deck side” of the posts with 4 post clamps. There is a mounting plate for the Steering Wheel that will be attached later. INSTRUCTIONS: • Install the wall on the “deck side” of the posts. •... -
Page 31: Steering Wheel 902-114
Steering Wheel 902-114 Item Part # Part Description Quantity Welded wheel fitting 905-117 Steering Wheel 902-135- Guard Wall with welded wheel fitting 116-600 1/2” x 1/2” Button Head Bolt 316-801 1/2” Flat Washer 226-802 1/2” Nylon Lock Nut Page 31... -
Page 32: Steering Wheel Plan
Steering Wheel Plan: The Steering Wheel attaches to the 10 Rung Guard Wall onto the welded bracket. INSTRUCTIONS: • Place the 1/2” lock nut INSIDE the wheel so as not to create a protrusion. • Place one washer between the bolt head and the plate •... -
Page 33: Alpha Panel 902-121-A
Alpha Panel 902-121-A Item Part # Part Description Quantity 903-121A Alpha Panel 903-001 Post Clamp 196-807 3/8” x 3/8” Socket Set Screw 196-555 1/4” x 3/4” Roll Pin 236-601 3/8” T Nut 126-706 3/8” x 1 3/4” Button head bolt Page 33... -
Page 34: Alpha Panel Plan
Alpha Panel Plan: The Alpha Panel attaches above the deck to the “deck side” of the posts with 4 post clamps. INSTRUCTIONS: • Install the wall on the “deck side” of the posts • Install with the centered welded bracket toward the top •... -
Page 35: Label Installation
Install them where they will not be disturbed during play. Inspect labels regularly. If torn, disfigured, damaged or faded, contact your SportsPlay distributor for replacement labels. Top of Surfacing Label Install one to each upright post at the level you have determined will be your “Top of Surfacing”... -
Page 36: Trouble Shooting
Problem: There is interference between a vertical portion of Trouble Shooting one component and another vertical portion of another component going into the opposite direction. (For instance, in Problem: Incorrect sized hole or no hole where there is the case of a tunnel or bubble window that has a vertical spacer supposed to be one. -
Page 37: Safety Checklist
• Roll pins; make sure they are flush and to not stick out. Safety Checklist • Clamps, when aluminum is hammered, it can cause a rough area. De-burr if necessary. Carefully go over each post, deck and component with bare •... -
Page 38: Photo Appendix
Photo Appendix Explosion drawings are included throughout the instructions. Photographs have been included for those who prefer them. 1. Mark post hole positions 2. Install post 3. Install deck 4. Install deck clamp 5. Install pipe clamp 6. Install panel (slide guard/arch wall/etc.) to pipe clamp 7. - Page 39 Page 39...
- Page 40 Page 40...
-
Page 41: Maintenance Checklist
Maintenance Checklist LOCATION______________________ INSPECTOR_____________________ DATE___________________________ INSTRUCTIONS: All playground components are listed below. Check monthly. Train personnel (through study of CPSC Guidelines and ASTM standards) to be alert to playground hazards and report them promptly. Avoid use of hazardous equipment until repaired. Check in equipment column means satisfactory.
