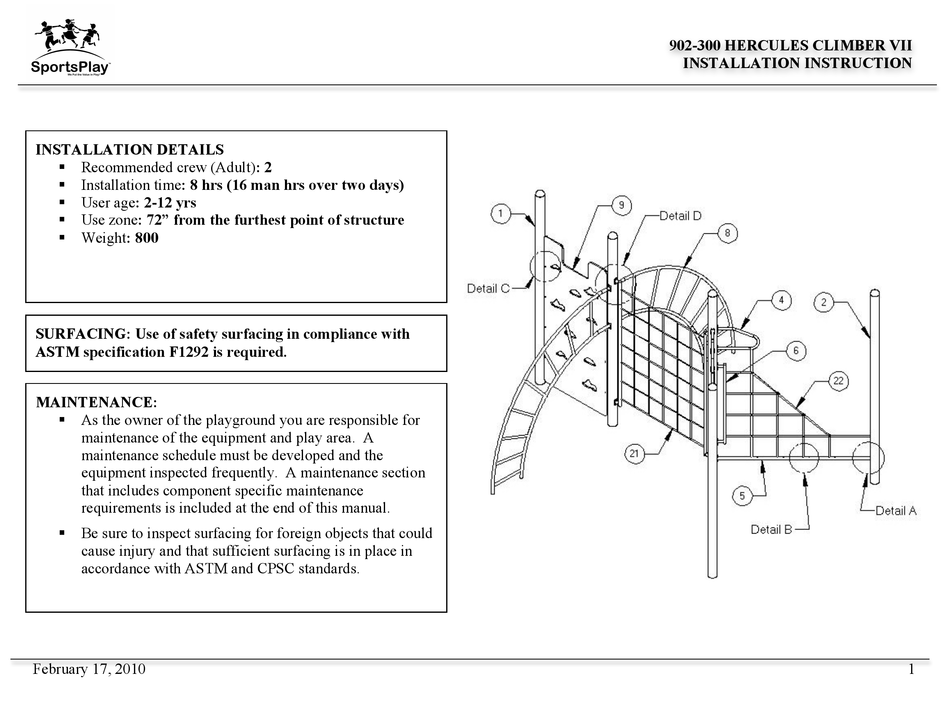

SportsPlay HERCULES CLIMBER VII Installation Instruction

INSTALLATION DETAILS
 Recommended crew (Adult): 2
 Installation time: 8 hrs (16 man hrs over two days)
 User age: 2-12 yrs
 Use zone: 72" from the furthest point of structure
 Weight: 800
SURFACING: Use of safety surfacing in compliance with
ASTM specification F1292 is required.
MAINTENANCE:
 As the owner of the playground you are responsible for
maintenance of the equipment and play area. A
maintenance schedule must be developed and the
equipment inspected frequently. A maintenance section
that includes component specific maintenance
requirements is included at the end of this manual.
 Be sure to inspect surfacing for foreign objects that could
cause injury and that sufficient surfacing is in place in
accordance with ASTM and CPSC standards.
February 17, 2010
902-300 HERCULES CLIMBER VII
INSTALLATION INSTRUCTION
1
