H2/4 GREEN/WHITE (-) factory alarm rearm

This wire sends a negative pulse every time the remote start shuts down or the doors are locked. This can

be used to pulse the arm wire of the vehicle's factory anti-theft device. Use a relay to send a (-) or (+)

pulse to the arm wire.

H2/5 GRAY/BLACK (-) diesel wait-to-start bulb input

Connect this wire to the wire in the vehicle that sends the signal to turn on the WAIT-TO-START bulb in

the dashboard. In most diesels the wire is negative (ground turns on the bulb) and the GRAY/BLACK wire

can be directly connected to the wire in the vehicle. If the vehicle uses a positive wire (12V to turn on the

bulb) a relay must be used to change the polarity. (See Finding the Wires You Need section of this guide.)

Here are some common colors of this wire:

■ Chevrolet and GMC trucks - Light blue or dark blue

■ Ford Trucks - Black/pink

■ Dodge Ram Trucks - Orange/black or black/orange

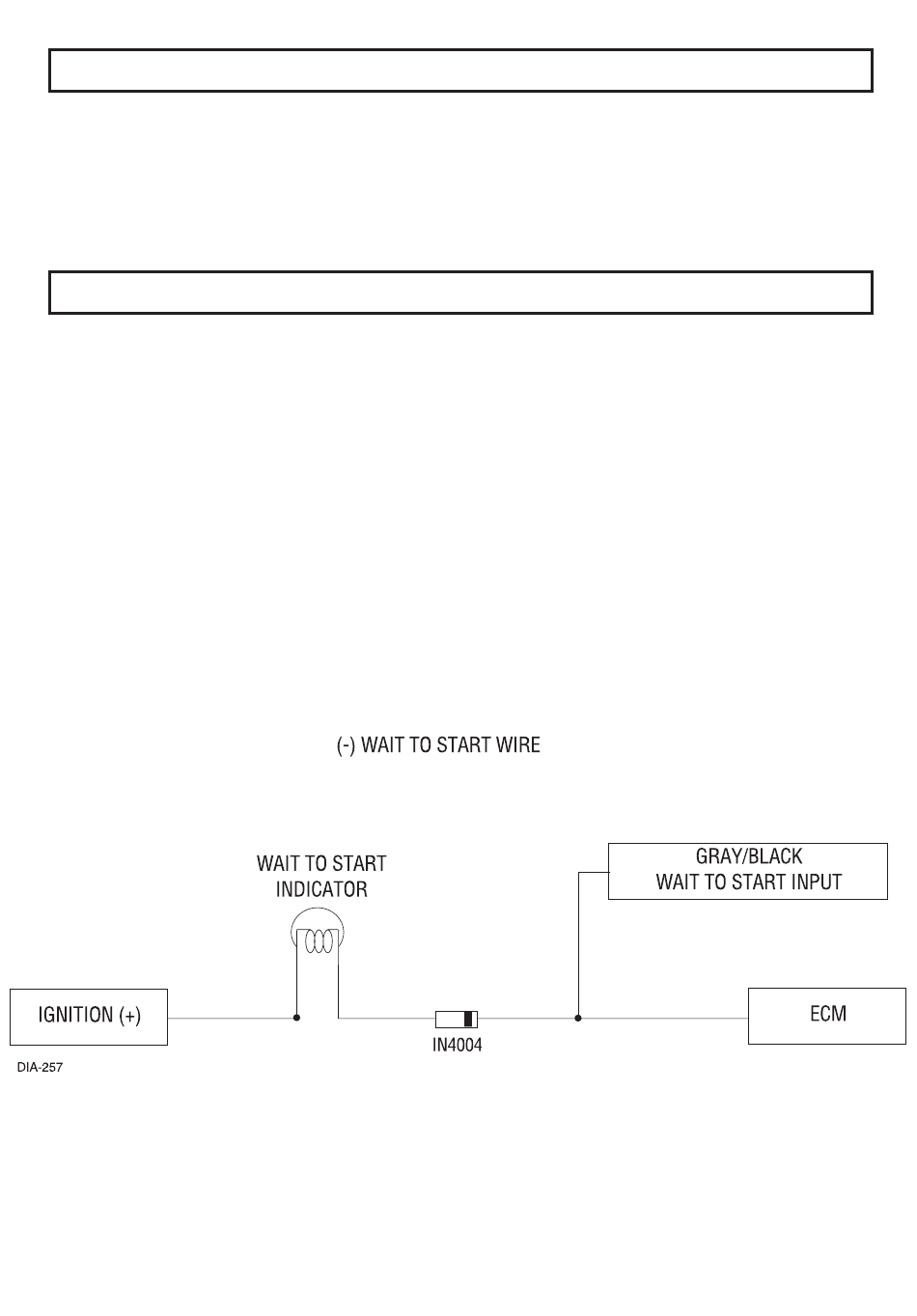

NOTE! A 1-amp diode must be installed in line on the factory wire between the wait-to-start indicator and

the ECM. (See the following diagram for details.)
