Part No.
TG03X, TG14X, TG18X
Do not over tighten as screws can be stripped out.
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
#40 Torx Head Driver,
Power Screwdriver with Phillips Bit
1/8" drill bit.
1. INSTALLATION PROCEDURE:
WARNING:
Do not transport a pickup truck facing backward with a liner installed.
Air can get under the liner which may result in the liner coming out of the truck and causing damage or injury.
Truck Box Preparation:
Clean truck box of all foreign matter and open any floor drains to ensure ventilation and moisture drainage.
NOTE:
Bed liner can be installed by one person. However, using two people is recommended by the manufacturer.
2. Tailgate Cover Installation Steps with Screws
NOTE: Your tailgate cover kit may have more or less hardware than shown. Toyota & Isuzu tailgate does not use latch screws.

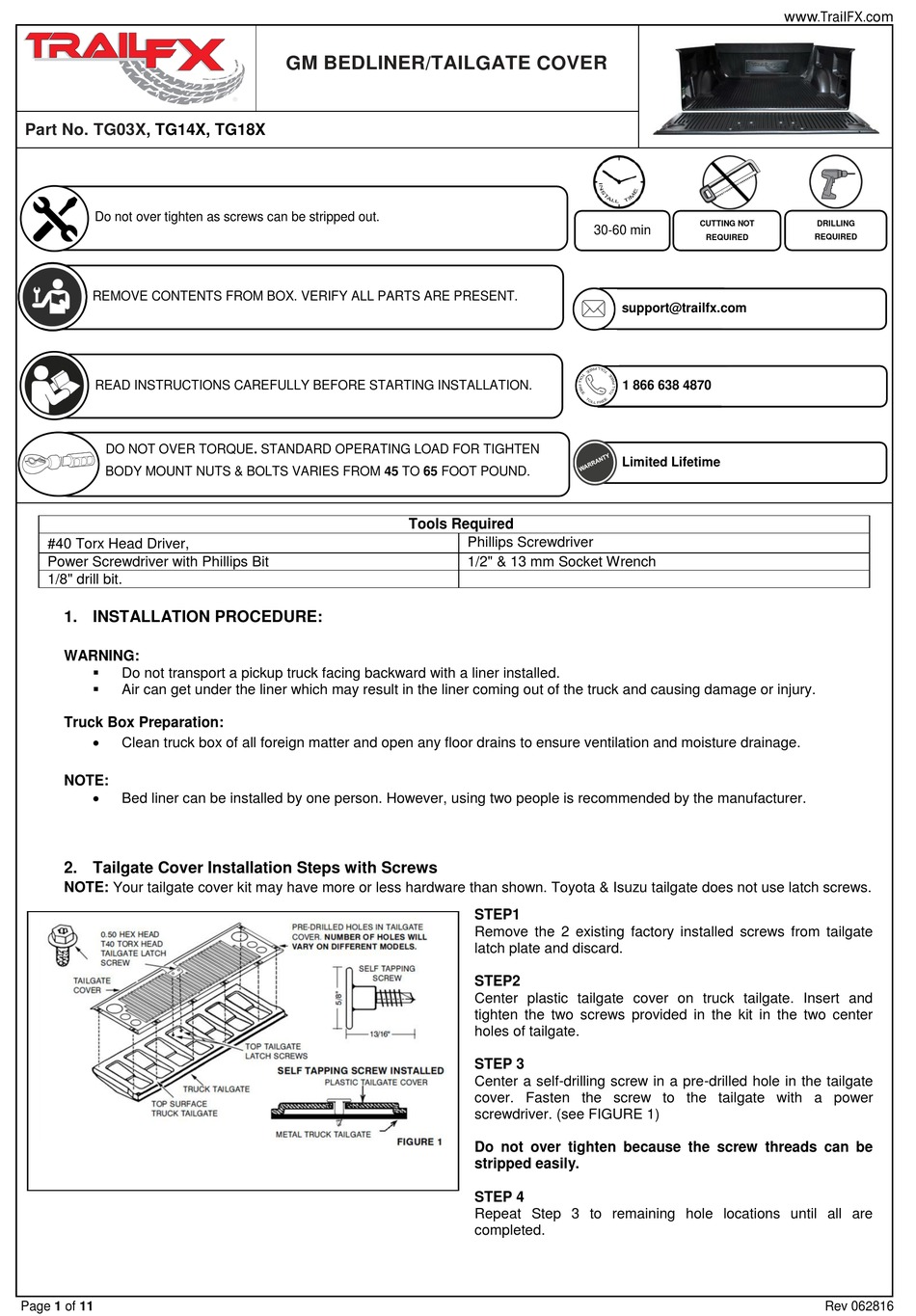

Page 1 of 11

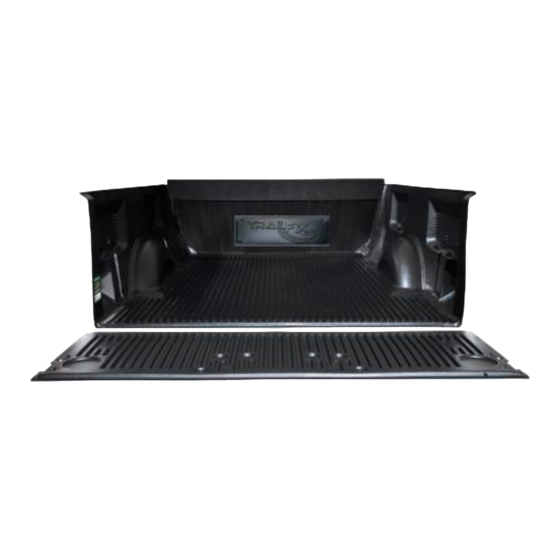

GM BEDLINER/TAILGATE COVER
Tools Required
30-60 min
support@trailfx.com
1 866 638 4870
Limited Lifetime
Phillips Screwdriver
1/2" & 13 mm Socket Wrench
STEP1
Remove the 2 existing factory installed screws from tailgate
latch plate and discard.
STEP2
Center plastic tailgate cover on truck tailgate. Insert and
tighten the two screws provided in the kit in the two center
holes of tailgate.
STEP 3
Center a self-drilling screw in a pre-drilled hole in the tailgate
cover. Fasten the screw to the tailgate with a power
screwdriver. (see FIGURE 1)
Do not over tighten because the screw threads can be
stripped easily.
STEP 4
Repeat Step 3 to remaining hole locations until all are
completed.
www.TrailFX.com
CUTTING NOT
DRILLING
REQUIRED
REQUIRED
Rev 062816
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TrailFX TG03X
Summary of Contents for TrailFX TG03X
- Page 1 GM BEDLINER/TAILGATE COVER Part No. TG03X, TG14X, TG18X Do not over tighten as screws can be stripped out. CUTTING NOT DRILLING 30-60 min REQUIRED REQUIRED REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. support@trailfx.com READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
- Page 2 Tailgate Cover Installation Steps with Factory Screws NOTE: Your tailgate cover kit may have more or less hardware than shown. Toyota & Isuzu tailgate does not use latch screws. STEP 1 Remove the two factory installed screws from the truck tailgate (SEE FIGURE 1).
- Page 3 STEP 1 (Figure 1) Place bedliner in the truck bed, such that the front rail retainer fits over the front rail of the truck bed. While standing on the side of the truck, lift one side of the bedliner and slip the sidewall of the bedliner under the opposite wall of truck box.
- Page 4 GM DOUBLURE DE BOÎTE/HAYON Part No. TG03X, TG14X, TG18X Outils nécessaires : Tournevis Phillips Clé à empreinte Torx #40, 1/8” mèche Tournevis Électrique avec Mèche Phillips, 1/2” & 13 mm clé à douille 1. Préparation pour installation AVERTISSEMENT: ...
- Page 5 2B. Étapes d’installation de doublure de hayon avec des vis d’usine NOTE: Votre kit de couverture du hayon peut avoir plus ou moins de matériel que montré. TLa doublure de hayon de Toyota et de Isuzu n’utilise pas les vis de verrou ÉTAPE 1...
- Page 6 4. Doublure de caisse à poser sous les longerons (NOTE: Quelques doublure de caisses peuvent ne pas avoir la lèvre avant de rail.) PRUDENCE : Il est conseillé à deux (2) personnes d’installer la doublure du plateau afin d’éviter des dégâts à la surface peinte du pick-up.
- Page 7 ÉTAPE 4 Monter dans la caisse du camion. Commencer par le côté cabine de la caisse. Pousser le longeron de la doublure contre le rebord de la caisse en serrant la vis de l’attache “Liner-Lok” dans le sens des aiguilles d’une montre (voir fig. 6). Vous devrez “sentir”...
- Page 8 DE LA CUBIERTA DEL CAJON/COMPUERTA DEL GM Part No. TG03X, TG14X, TG18X Herramientas necesarias: llave de zócalo de ½” y 13mm Destornillador de estrella, taladro de 1/8”. Destornillador Eléctrico con broca de estrella 1. Preparación para la instalación ADVERTENCIA: ...
- Page 9 Pasos para la instalación del protector de la puerta trasera del ISUZU (con agujeros pretaladrados). NOTA: El kit del protector de la puerta posterior puede tener más o menos hardware que el mostrado. PASO 1 Centre el protector de la puerta trasera en la puerta del truck, colocando cualquier tornillo de fábrica en los agujeros petaladrados.
- Page 10 5. Pasos de instalación del forro bajo la baranda PAS0 1 Con el Bedliner fuera de la caja de la camioneta: Monte sujetadores Bedliner “Liner-Lok”, deslizando el clip metálico sobre la tuerca girante plástica (Vea Figura 1). Inserte los tornillos através de los orificios provistos en la pared del Bedliner, con la cabeza del tornillo hacia el interior de la caja de la camioneta.
-
Page 11: Product Care
Product not installing properly. Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. Check out these other TrailFX Products!! www.TrailFX.com Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
