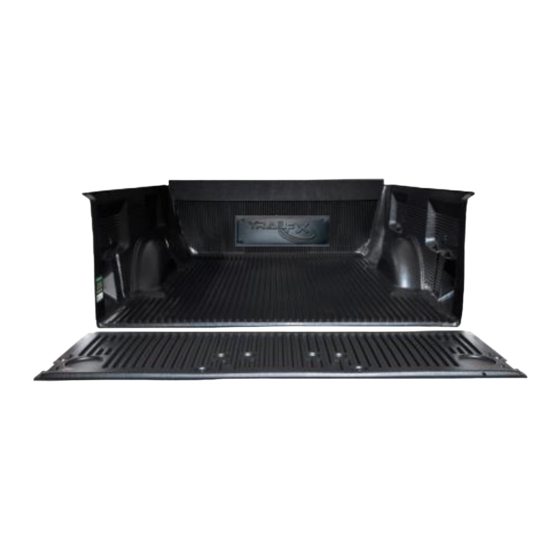

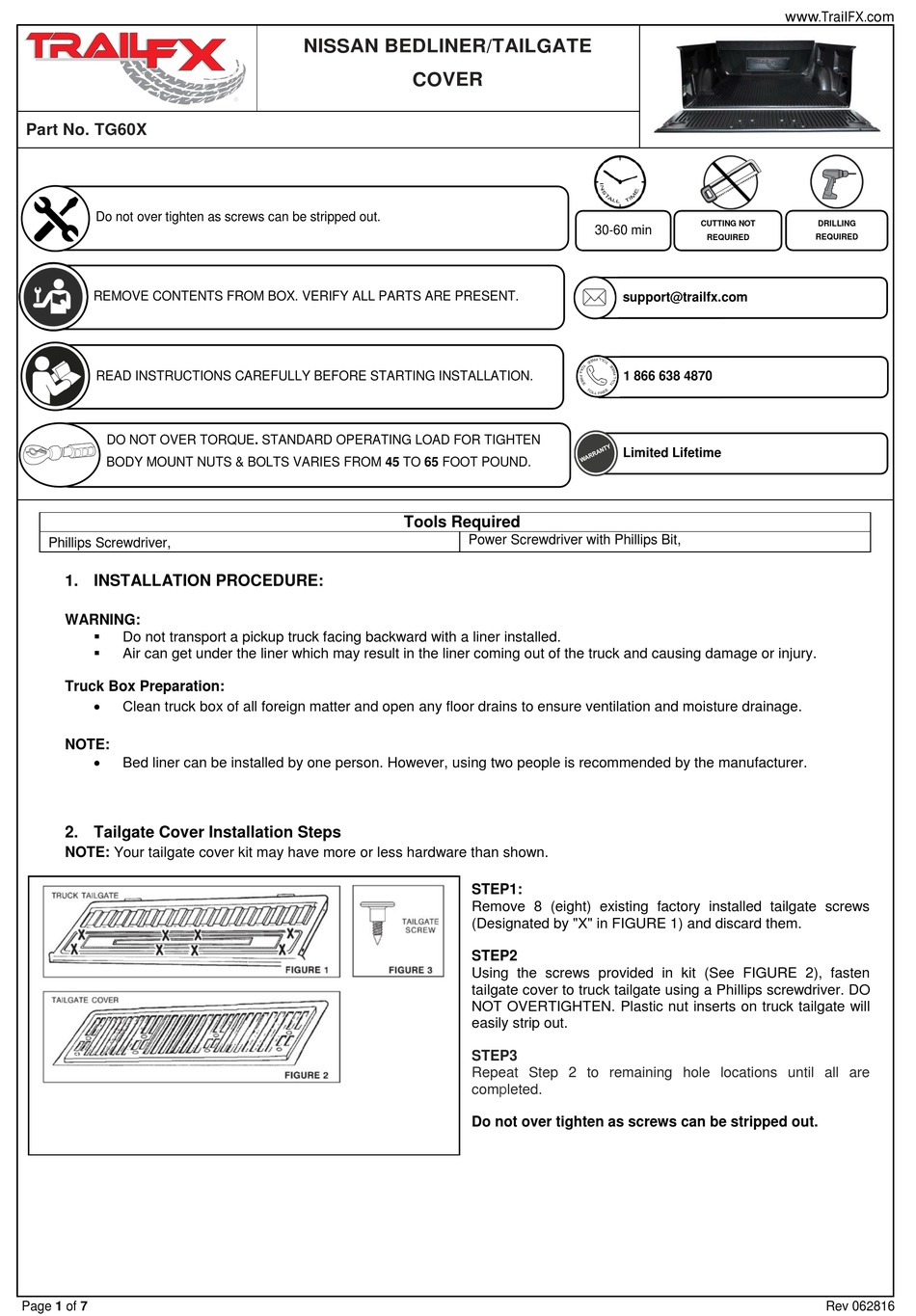

TrailFX TG60X Manual

`
Part No. TG60X
Do not over tighten as screws can be stripped out.
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Phillips Screwdriver,

1. INSTALLATION PROCEDURE:

WARNING:

Do not transport a pickup truck facing backward with a liner installed.

Air can get under the liner which may result in the liner coming out of the truck and causing damage or injury.
Truck Box Preparation:

Clean truck box of all foreign matter and open any floor drains to ensure ventilation and moisture drainage.
NOTE:

Bed liner can be installed by one person. However, using two people is recommended by the manufacturer.

2. Tailgate Cover Installation Steps

NOTE: Your tailgate cover kit may have more or less hardware than shown.
Page 1 of 7
NISSAN BEDLINER/TAILGATE
COVER

Tools Required

Power Screwdriver with Phillips Bit,
STEP1:
Remove 8 (eight) existing factory installed tailgate screws
(Designated by "X" in FIGURE 1) and discard them.
STEP2
Using the screws provided in kit (See FIGURE 2), fasten
tailgate cover to truck tailgate using a Phillips screwdriver. DO
NOT OVERTIGHTEN. Plastic nut inserts on truck tailgate will
easily strip out.
STEP3
Repeat Step 2 to remaining hole locations until all are
completed.
Do not over tighten as screws can be stripped out.
CUTTING NOT
30-60 min
REQUIRED
