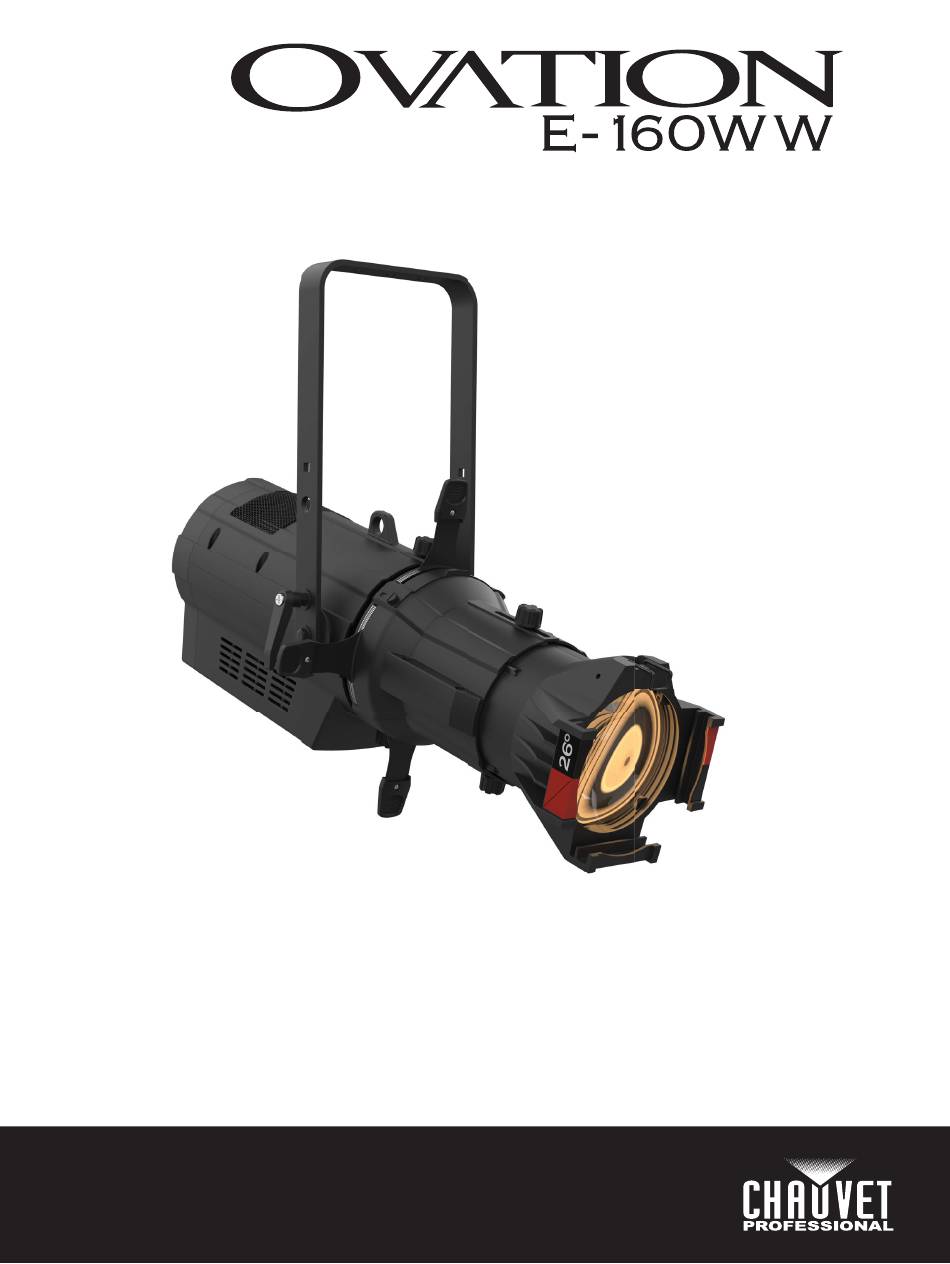

- Page 1 User Manual *Lens tubes sold separately Model ID: OVATIONE160WW-2...
-
Page 2: Edition Notes
Edition Notes The Ovation E-160WW User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the Ovation E-160WW as of the release of this edition. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, and Ovation are registered trademarks or trademarks of Chauvet &... -
Page 3: Table Of Contents
Static Mode ........................Focus Mode ........................Auto Programs ....................... Master/Slave ........................Dimmer Curve ........................ Dimmer Profiles......................LED Frequency ......................Fan Mode ........................Back Light ........................System Information ......................Error Codes....................14 5. Technical Information ..............Ovation E-160WW User Manual Rev. 8... - Page 4 Table of Contents Product Maintenance ..................15 6. Technical Specifications ............Contact Us ..................Warranty & Returns..................17 Ovation E-160WW User Manual Rev. 8...
-
Page 5: Before You Begin
Any reference to data or power connections in this manual assumes the use of Seetronic IP rated cables. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Ovation E-160WW User Manual Rev. 8... -
Page 6: Safety Notes
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it. • In the event of a serious operating problem, stop using immediately. If a Chauvet product requires service, contact Chauvet Technical Support. Ovation E-160WW User Manual Rev. 8... -
Page 7: Fcc Statement Of Compliance
LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. Ovation E-160WW User Manual Rev. 8... -
Page 8: Introduction
2. Introduction Description The Ovation E-160WW delivers an excellent white light with a warm color temperature and a beautiful flat field. It also features standard beam shaping shutters, a gobo/effect slot and lens barrels that are interchangeable with other popular ERS fixtures. Selectable dimming curves ensure smooth fading cues that intermix well with the output of conventional theatre ellipsoidals. -
Page 9: Product Overview
Beam focus knobs (x2) Gel frame holder Light engine Barrel assembly Lens tube (sold separately) Menu buttons Fuse holder Seetronic powerkon IP65 input/ output Display 3- and 5-pin DMX in 3- and 5-pin DMX out Rear View Ovation E-160WW User Manual Rev. 8... -
Page 10: Product Dimensions
506 mm 13.46 in 9.33 in 342 mm 237 mm 12.56 in 6.97 in 177 mm 319 mm 25.71 in 653 mm 6.30 in 6.85 in 160 mm 174 mm 27.95 in 710 mm Ovation E-160WW User Manual Rev. 8... -
Page 11: Setup
3. Remove the blown fuse and replace with another fuse of same type and rating (T 3.15 A, 250 V). Screw the fuse holder cap back in place and reconnect power. Power Linking It is possible to power link Ovation E-160WW products. See the table below for the current draw at each voltage and frequency: 100 V, 60 Hz... -
Page 12: Overhead Mounting
When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity. Procedure The Ovation E-160WW comes with an Omega/adjustable bracket. The user can directly attach a mounting clamp (sold separately) to this Omega bracket. Make sure the clamp is capable of supporting the weight of this product. -
Page 13: Manual Beam Focus Control
Make sure the barrel assembly is oriented with the pattern holder and accessory slots at the top of the product. Accessory Slot The Ovation E-160WW has an accessory slot, which holds a drop-in iris, a motorized pattern device, or various other optional accessories (sold separately). Loosen the thumbscrews on the slot cover. -
Page 14: Operation
<DOWN> Navigates downward through the menu list or decreases the numeric value when in a function Control Options Set the Ovation E-160WW starting address in the 001-507 DMX range. This enables control of up to 85products in the 6-channel 6Ch personality. -
Page 15: Dmx Configuration
Each product will respond to a unique starting address from the controller. All products with the same starting address will respond in unison. To set the starting address in DMX mode: Go to the DMX Address main level. Select the starting address (001–512). Personality Highest Address Ovation E-160WW User Manual Rev. 8... -
Page 16: Dmx Values
072 079 Dimmer speed 3 (slowest) 080 087 Fan auto 088 095 Fan on 096 103 Fan off 104 111 Fan silent 112 255 Reserved for future use Ovation E-160WW User Manual Rev. 8... -
Page 17: Standalone Configuration
Select the desired option from SCurve, Linear, Square, or Inverse Square. Dimmer Profiles This setting determines how fast the output of the Ovation E-160WW changes when the user modifies the output value. This setting provides four different options to simulate the dimming curve of an incandescent lighting product. -
Page 18: Fan Mode
Back Light This setting allows for selection of the amount of time the backlight on the Ovation E-160WW’s display stays on after the last button is pressed on the control panel. -
Page 19: Technical Information
6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Ovation E-160WW User Manual Rev. 8... -
Page 20: Technical Specifications
I/O Connector Channel Range 3- and 5-pin XLR 1, 2, 3 or 6 Ordering Product Name Item Name Item Code UPC Number Ovation E-160WW OVATIONE160WW-2 03032341 781462226893 UL 1573 CSA C22.2 No. 166 E113093 Ovation E-160WW User Manual Rev. 8... -
Page 21: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Ovation E-160WW User Manual Rev. 8...
