User Manual
*Lens tubes
sold separately

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OVATION E-260WW and is the answer not in the manual?

Questions and answers

Related Manuals for Chauvet Professional OVATION E-260WW

Summary of Contents for Chauvet Professional OVATION E-260WW

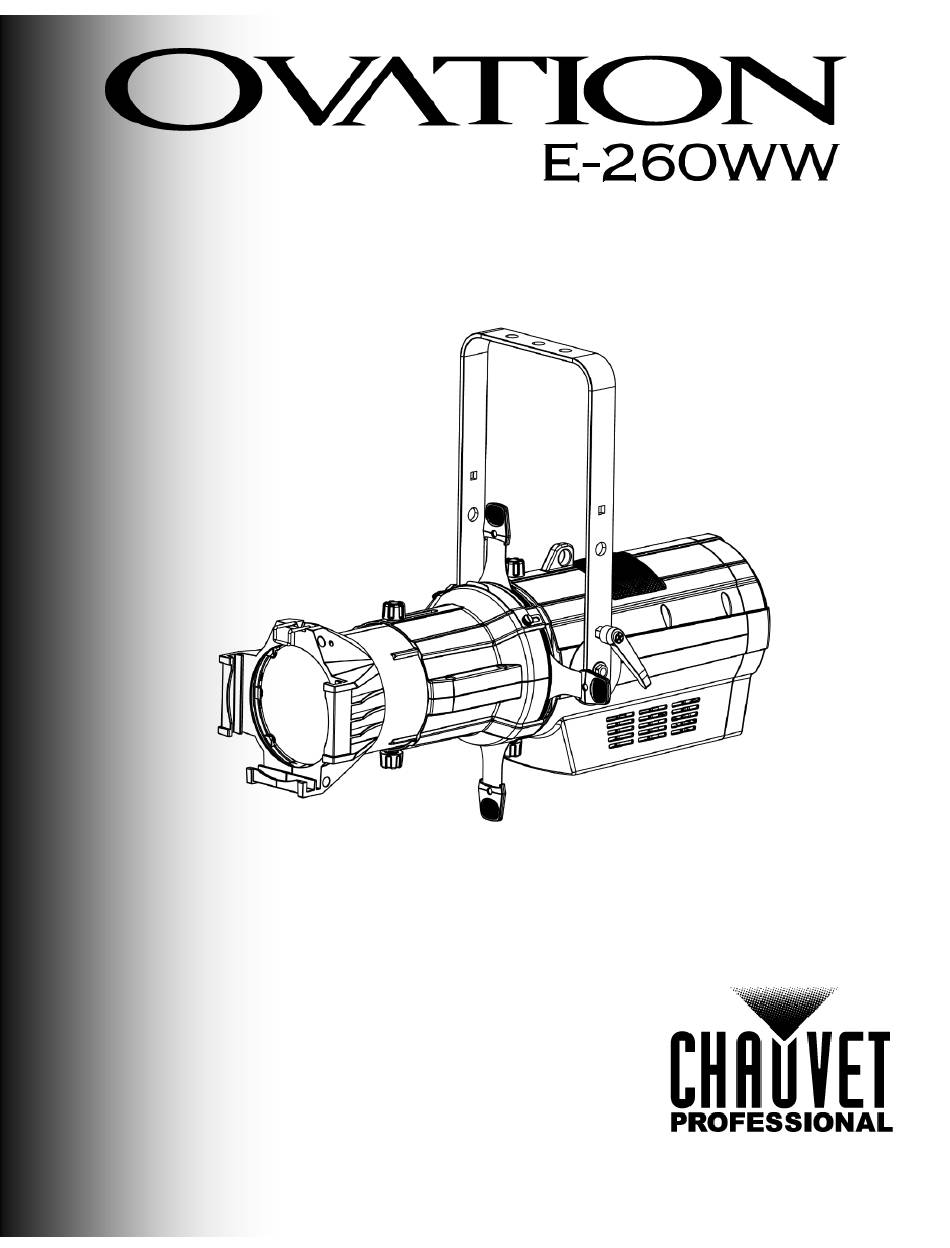

  • Page 1 User Manual *Lens tubes sold separately...
  • Page 2 Edition Notes Edition The Ovation E-260WW User Manual includes a description, safety precautions, and installation, programming, operation, and maintenance instructions for the Ovation E-260WW as of the Notes release date of this edition. Trademarks CHAUVET, the Chauvet logo and Ovation E-260WW are registered trademarks or trademarks of Chauvet &...

  • Page 3: Table Of Contents

    Dimmer Curve .................................... 12 Dimmer Profiles ..................................12 LED Frequency ..................................13 Fan Mode ....................................13 Back Light ....................................13 Run Time ....................................13 LED Time ....................................13 Software Information .................................. 13 RDM ......................................13 Ovation E-260WW User Manual Rev. 9...
  • Page 4 DMX Values ................................14 6Ch ......................................14 3Ch ......................................14 2Ch ......................................14 1Ch ......................................14 5. Technical Information ..........................15 Product Maintenance ..............................15 Technical Specifications ..........................16 Returns ................................17 Contact Us ..............................18 -ii- Ovation E-260WW User Manual Rev. 9...

  • Page 5: Before You Begin

    2. This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Ovation E-260WW User Manual Rev. 9...

  • Page 6: Safety Notes

    LEDs, contributing to shorter lifespans if always used at full intensity. The Lifespan average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. Ovation E-260WW User Manual Rev. 9...

  • Page 7: Introduction

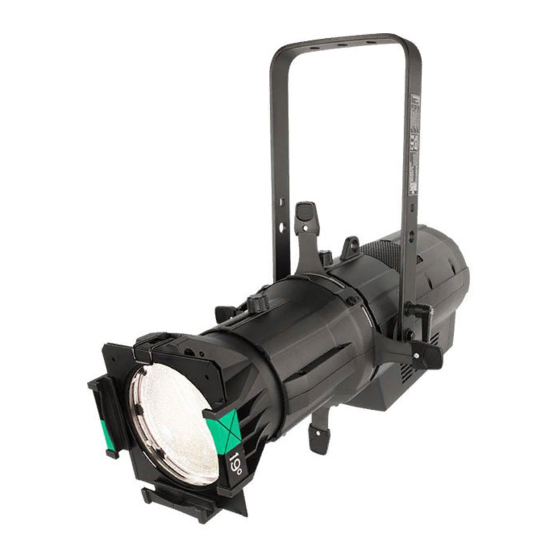

    Introduction 2. Introduction The Ovation E-260WW delivers an excellent white light with a warm color temperature and a Description beautiful flat field. It also features standard beam shaping shutters, a gobo/effect slot and lens barrels that are interchangeable with other popular ERS fixtures. Selectable dimming curves ensure smooth fading cues that intermix well with the output of conventional theatre ellipsoidals.

  • Page 8: Overview

    Gel Frame Holder Side View Barrel Lens Tube Light Assembly (sold separately) Engine Handle Menu Buttons Fuse Holder Display powerCON® Input 3- and 5-pin DMX In powerCON® 3- and 5-pin DMX Out Output Rear View Ovation E-260WW User Manual Rev. 9...

  • Page 9: Dimensions

    6.7 in 8.7 in 15 in 171 mm 222 mm 380 mm 12 in 7.1 in 305 mm 180 mm 25.4 in 645 mm Top View 6.25 in 6.9 in 159 mm 174 mm Ovation E-260WW User Manual Rev. 9...

  • Page 10: Setup

    0 to 100% switch. AC Plug The Ovation E-260WW comes with a power input cord terminated with a Neutrik powerCON A connector on one end and an Edison plug on the other end (U.S. market). If the power input cord that came with your product has no plug, or if you need to change the Edison plug, use the table below to wire the new plug.

  • Page 11: Dmx Linking

    Setup You can link the Ovation E-260WW to a DMX controller using a 3- or 5-pin DMX connection. If DMX Linking using other DMX-compatible products with the Ovation E-260WW, you can control each individually with a single DMX controller. The Ovation E-260WW uses the standard DMX data connection for the 1-, 2-, 3- and 6- channel DMX modes.

  • Page 12: Mounting

    CHAUVET Professional line of safety cables, go to http://trusst.com/products/. Procedure The Ovation E-260WW comes with a hanging/mounting bracket to which you can attach mounting clamps. The bracket has 13-mm holes, which are appropriate for this purpose. You must supply your own mounting clamps, so be sure the clamps are capable of supporting the weight of this product.

  • Page 13: Manual Beam Focus Control

    Accessory Slot The Ovation E-260WW has an accessory slot, which holds a drop-in iris, a motorized pattern device, or various other optional accessories (sold separately). 1. Loosen the thumbscrews on the slot cover.

  • Page 14: Operation

    Navigates downward through the menu list or decreases the numeric value when in a function Control Set the Ovation E-260WW starting address in the 001–512 DMX range. This enables control of Options up to 85 products in the 6-channel 6CH personality.

  • Page 15: Menu Map (Cont.)

    Shows total hours the LED has been LED Hours _ _ _ _H Information powered on Version V_._ Shows installed software version UID: _ _ _ _ _ _ _ _ _ _ _ _ Shows product UID Ovation E-260WW User Manual Rev. 9 -11-...

  • Page 16: Configuration (Standalone)

    Select the desired option (SCurve, Linear, Square, or Inverse Square). Dimmer Profiles This setting determines how fast the output of the Ovation E-260WW changes when you modify the values of the white, and dimmer faders. This setting provides four different options to simulate the dimming curve of an incandescent lighting product.

  • Page 17: Led Frequency

    2. Select a fan mode (Auto, On, Off, or Silent). Back Light This setting allows you to set the amount of time the backlight on the Ovation E-260WW’s display stays on after the last button is pressed on the control panel.

  • Page 18: Dmx Values

    000010 No function Strobe 011255 Strobe (slow to fast) Channel Function Value Percent/Setting Dimmer 000  255 0–100% Dimmer Fine 000  255 0–100% Channel Function Value Percent/Setting Dimmer 000  255 0–100% -14- Ovation E-260WW User Manual Rev. 9...

  • Page 19: Technical Information

    7. Gently polish the lens surfaces until they are free of haze and lint. Always dry the external surfaces thoroughly and carefully after cleaning them. Do not spin the cooling fans while blowing compressed air into them. Ovation E-260WW User Manual Rev. 9 -15-...

  • Page 20: Technical Specifications

    113 °F (45 °C) Fan-Assisted Convection I/O Connectors Connector Type Channel Range 3- and 5-pin XLR Sockets 1, 2, 3, 6 Ordering Product Name Item Name Item Code UPC Number Ovation E-260WW OVATIONE260WW 03121186 781462215347 -16- Ovation E-260WW User Manual Rev. 9...

  • Page 21: Returns

    Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be the customer’s responsibility. FedEx packing or double-boxing is recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Ovation E-260WW User Manual Rev. 9 -17-...

  • Page 22: Contact Us

    Voice: +52 (728) 690-2010 Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record. Ovation E-260WW User Manual Rev. 9...
