Summary of Contents for Chauvet Professional Ovation E-910FC

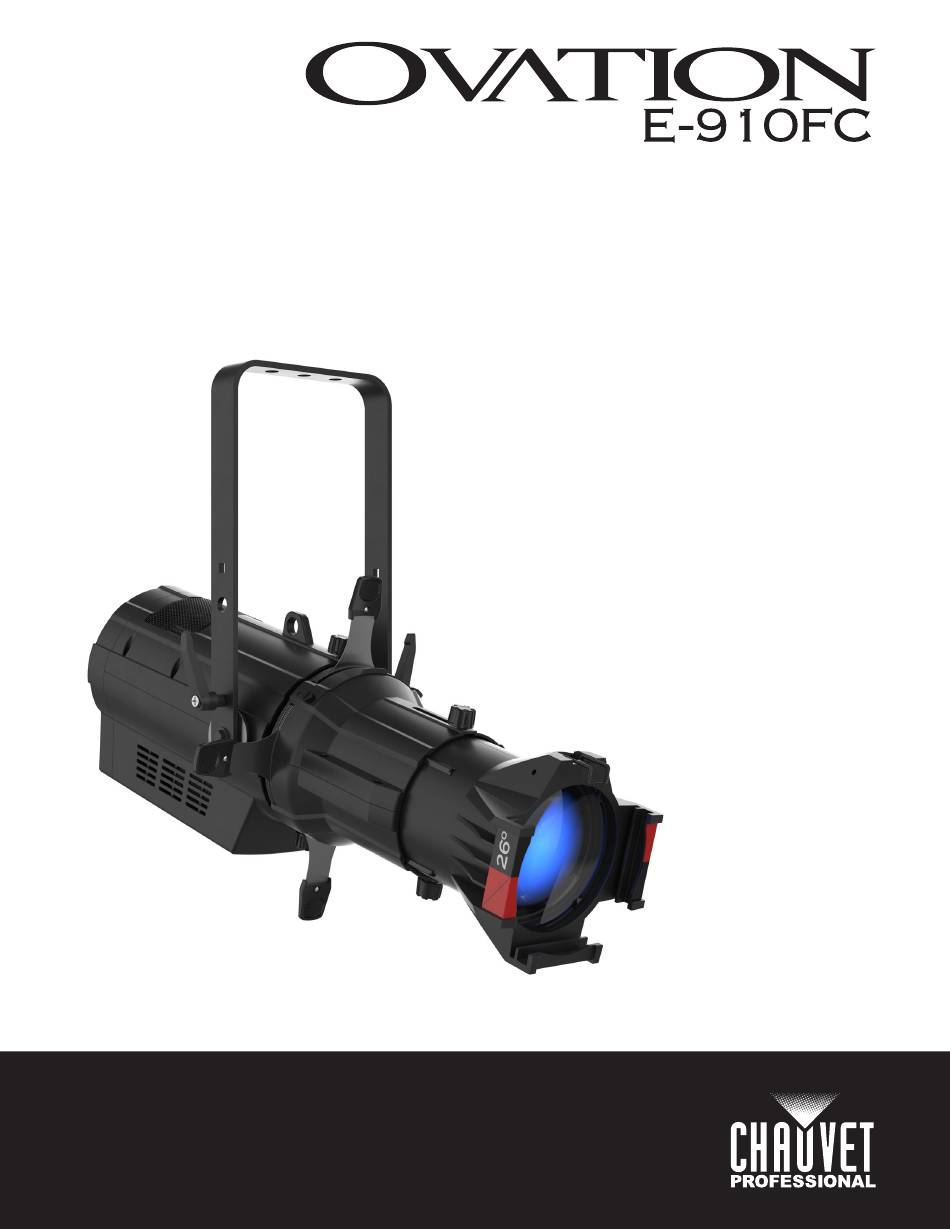

- Page 1 User Manual *Lens tube sold separately Model ID: OVATIONE910FC-2...
-
Page 2: Edition Notes
Edition Notes The Ovation E-910FC User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the Ovation E-910FC as of the release date of this edition. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, and Ovation are registered trademarks or trademarks of Chauvet &... -
Page 3: Table Of Contents
Control Panel Description ................Control Options ..................... Programming....................Menu Map ..................... DMX Configuration..................DMX Personalities....................14 Starting Address....................14 Virtual Color Wheel ..................Virtual Color Wheel Chart .................. 15 Color Temperature Chart ................... 15 Ovation E-910FC User Manual Rev. 18... - Page 4 White Balance ....................18 Pulse Width Modulation ..................18 Fan Mode ......................18 Display Backlight....................18 Information ......................18 Error Codes....................5. Maintenance................Product Maintenance ..................6. Technical Specifications ............Contact Us ..................Warranty & Returns..................Ovation E-910FC User Manual Rev. 18...
-
Page 5: Before You Begin
The product has XLR sockets for DMX input and output. • Notice: This control circuit is isolated and belongs to the Class 2 data port. The control circuit has a cumulative leakage current of less than 3.5 mA. Ovation E-910FC User Manual Rev. 18... -
Page 6: Safety Notes
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it. • In the event of a serious operating problem, stop using immediately. If this Chauvet product requires service, contact Chauvet Technical Support. Ovation E-910FC User Manual Rev. 18... -
Page 7: Fcc Statement Of Compliance
LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. Ovation E-910FC User Manual Rev. 18... -
Page 8: Introduction
9 3-pin and 5-pin DMX out 10 Gel frame holder 11 Beam focus knob (x2) 12 Pattern holder 13 Barrel rotation knob 14 Safety loop A Lens tube (sold separately) B Barrel assembly C Light engine Ovation E-910FC User Manual Rev. 18... -
Page 9: Product Dimensions
526 mm 13.47 in 6.87 in 9.33 in 342 mm 174.5 mm 237 mm 17.72 in 450 mm 14.76 in 375 mm 15.81 in 401.5 mm 20.71 in 526 mm 18.39 in 467 mm Ovation E-910FC User Manual Rev. 18... -
Page 10: Setup
4. Screw the fuse holder cap back in place and reconnect power. Power Linking It is possible to power link Ovation E-910FC products. See the table below for the current draw at each voltage and frequency: 100 V, 60 Hz... -
Page 11: Dmx Linking
Setup DMX Linking The Ovation E-910FC can be linked to a DMX controller using a 3- or 5-pin DMX connection. If using other DMX-compatible products with this product, it’s possible to control each individually with a single DMX controller. DMX Personalities The Ovation E-910FC uses a 3- or 5-pin DMX data connection for its 9 DMX personalities, ranging from 1Ch to 16Ch. -
Page 12: Mounting
Only loosen or tighten the bracket knobs manually. Using tools could damage the knobs. Procedure The Ovation E-910FC comes with an adjustable yoke. The user can directly attach a mounting clamp (sold separately) to this yoke. Make sure the clamp is capable of supporting the weight of this product. For the Chauvet Professional line of mounting clamps, go to http://www.trusst.com/products. -
Page 13: Manual Beam Focus Control
Ensure that the barrel assembly is oriented with the pattern holder and accessory slots at the top of the product. Accessory Slot The Ovation E-910FC has an accessory slot, which holds a drop-in iris, a motorized pattern device, or various other optional accessories (sold separately). 1. Loosen the thumbscrews on the slot cover. -
Page 14: Soft Focus Filter
Setup Soft Focus Filter The Ovation E-910FC comes with a soft-focus filter included in the box. • To install the soft-focus filter into the fixture, gently squeeze the filter and carefully slide it under the filter holders. Make sure to follow the orientation direction printed on the filter. -
Page 15: Operation
<DOWN> Navigates downwards through the menu list or decreases the value when in a function Control Options Set the Ovation E-910FC starting address in the 001–497 DMX range. This enables control of up to 32 products in the 16-channel 16Ch personality. - Page 16 Speed X-Fade Speed 3 fast (X-Fade Speed 1) to slow (X-Fade Speed 4) X-Fade Speed 4 Selects automatic programs and auto Auto Show Auto 1–5 1–100 program speed Red Shift Mimics halogen lamp dimming Ovation E-910FC User Manual Rev. 18...
- Page 17 When operating in Fan Mode: Off and Fan Mode: Silent, the product will become hotter to the touch than when using other fan modes. Use proper protective equipment to prevent burns. Keep a safe distance from flammable objects. Ovation E-910FC User Manual Rev. 18...
-
Page 18: Dmx Configuration
To set the starting address in DMX mode: 1. Go to the DMX Address main level. 2. Select the starting address (001–512). Personality Highest Address Products per Universe 10Ch 12Ch 13Ch 16Ch Ovation E-910FC User Manual Rev. 18... -
Page 19: Virtual Color Wheel
Operation Virtual Color Wheel The Ovation E-910FC includes a feature called the Virtual Color Wheel (VCW). This feature is available as a standalone control mode for manual use and as a control channel in select DMX personalities. More than 30 colors, custom blended by Chauvet engineers, are available to call up for easier programming. -
Page 20: Dmx Channel Assignments And Values
096 103 X-fade speed off 104 111 X-fade speed 1 (fastest) 112 119 X-fade speed 2 120 127 X-fade speed 3 128 135 X-fade speed 4 (slowest) 136 255 Reserved for future use Ovation E-910FC User Manual Rev. 18... -
Page 21: 1Ch
Standalone Configuration Focus Mode Focus mode allows for focusing of the Ovation E-910FC without changing any menu settings. 1. Press and hold <ENTER> for 3 seconds. The intensity will increase to 100%. 2. Press <MENU> to exit to previous settings. -
Page 22: Settings Configuration
1. Go to the Red Shift main level. 2. Select from On or Off. Master/Slave To set the Ovation E-910FC product to master or slave mode: 1. Go to the Master/Slave main level. 2. Select from Master (sends control signal) or Slave (receives control signal). -
Page 23: Error Codes
Check the wire connection or has poor connection The thermistor is not welded properly Replace the board or weld the thermistor Temperature shows The temperature control connector Check the temperature control wire 125°C short circuited connector Ovation E-910FC User Manual Rev. 18... -
Page 24: Maintenance
6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Ovation E-910FC User Manual Rev. 18... -
Page 25: Technical Specifications
51° 3,813 457 lux 15°–30° 13° to 24° 15° to 29° 4,028 to 1,553 4,260 lux to 1,620 lux 25°–50° 23° to 36° 26° to 50° 5,261 to 7,263 1,790 lux to 825 lux Ovation E-910FC User Manual Rev. 18... - Page 26 3- and 5-pin XLR 1, 3, 5, 7, 10, 12, 13, 16, or 3 (HSV) Ordering Product Name Item Name Item Code UPC Number Ovation E-910FC OVATIONE910FC-2 03032177 781462225254 UL 1573 CSA C22.2 No. 166 E113093 Ovation E-910FC User Manual Rev. 18...
-
Page 27: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Ovation E-910FC User Manual Rev. 18...
