- Page 1 User Manual *Lens tube sold separately Model ID: OVATIONE4WWIP...
- Page 2 Edition Notes The Ovation E-4WW IP User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the Ovation E-4WW IP as of the release date of this edition. Trademarks Chauvet, Chauvet Professional, the Chauvet logo and Ovation are registered trademarks or trademarks of Chauvet &...
-
Page 3: Table Of Contents
Control Panel Description ................Control Options ..................... Programming....................Control Panel Lock..................Passcode ...................... Menu Map ..................... Configuration (Standalone) ................Static Mode ......................14 Focus Mode ....................... 14 Auto Programs ....................14 Gobo Rotator...................... 14 Ovation E-4WW IP User Manual Rev. 1... - Page 4 System Information .................... 15 Factory Reset..................... 15 Configuration (DMX) ..................DMX Personalities....................16 DMX Control....................... 16 DMX Values ....................5. Maintenance................Product Maintenance ..................6. Technical Specifications ............Contact Us ..................Warranty & Returns..................Ovation E-4WW IP User Manual Rev. 1...
-
Page 5: Before You Begin
Any reference to data or power connections in this manual assumes the use of Seetronic IP rated cables. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Ovation E-4WW IP User Manual Rev. 1... -
Page 6: Fcc Statement Of Compliance
• Connect this product to a grounded and protected circuit. • DO NOT: • Open this product. It contains no user-serviceable parts. • Look at the light source when the product is on. Ovation E-4WW IP User Manual Rev. 1... -
Page 7: Expected Led Lifespan
LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. Ovation E-4WW IP User Manual Rev. 1... -
Page 8: Introduction

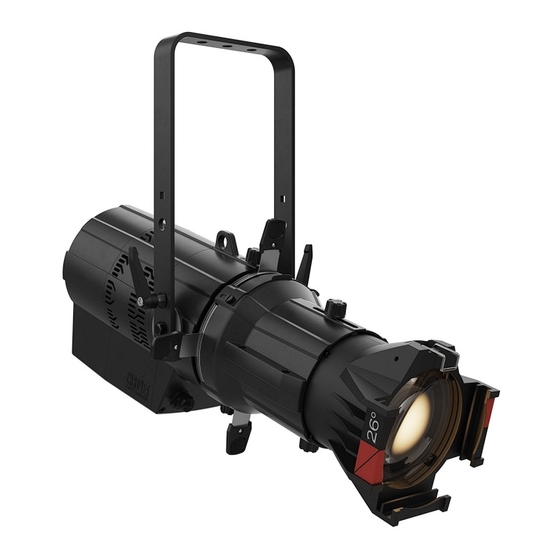

2. Introduction Description The Ovation E-4WW IP is a high-powered warm white ellipsoidal light that projects a flat, even field. Standard framing shutters, a gobo/effect slot, and interchangeable lens barrels provide versatility to fit any application. The Ovation E-4WW IP is IP65 rated and features IP rated power and DMX connections. -
Page 9: Product Overview
Pattern holder slot (A-size holder for 3-in patterns. B-size holder for 2.5-in and 2.75- in patterns, sold separately) Accessory slot Framing shutter (x4) Barrel rotation knobs Ovation GR-1 IP power/signal Light engine Barrel assembly Ovation E-4WW IP User Manual Rev. 1... -
Page 10: Product Dimensions
Introduction Product Dimensions 14.96 in 487mm 11.9 in 302 mm 11.9 in 302 mm 26 in 660 mm Ovation E-4WW IP User Manual Rev. 1... -
Page 11: Setup
4. Screw the fuse holder cap back in place and reconnect power. Power Linking It is possible to power link Ovation E-4WW IP products. See the table below for the current draw at each voltage and frequency: 100 V, 60 Hz... -
Page 12: Dmx Personalities
Setup DMX Personalities The Ovation E-4WW IP uses a 5-pin DMX data connection for the 2 Ch, 3 CH, 4 Ch, and 7 Ch, DMX personalities. • Refer to the Introduction for a brief description of each DMX personality. •... -
Page 13: Soft Focus Filter
Setup Soft Focus Filter The Ovation E-4WW IP comes with a soft focus filter. To keep the soft focus filter in good condition: • Ensure that no fingerprints are left on the filter, as this may cause the filter to heat unevenly and eventually warp. -
Page 14: Accessory Slot
Setup Accessory Slot The Ovation E-4WW IP has an accessory slot, which holds a drop-in iris, a motorized pattern device, or various other optional accessories (sold separately). Loosen the thumbscrews on the slot cover. • Note: Do not remove the thumbscrews. -
Page 15: Mounting
*Secure the safety cable using the passageway on the top of the product Adjustable Yoke The Ovation E-4WW IP comes with an adjustable yoke for mounting in low-clearance areas. To modify the height of the yoke, do the following: 1. Loosen the yoke adjustment knob. -
Page 16: Operation
Navigates downwards through the menu list or decreases the value when in a function Control Options Set the Ovation E-4WW IP starting address in the 001-512 DMX range. This enables control of up to 85 products in the 7-channel 7Ch personality. -
Page 17: Menu Map
Operation Menu Map Refer to the Ovation E-4WW IP product page on www.chauvetprofessional.com for the latest menu map. Main Level Programming Levels Description Selects DMX address (highest channel restricted DMX Address <001–512> to personality chosen). 2 Ch 2-channel: dimmer, gobo rotate... -
Page 18: Configuration (Standalone)
Select the desired value (0–255). Focus Mode Focus mode allows for focusing of the Ovation E-4WW IP without changing any menu settings. Press and hold <ENTER> for 3 seconds. The output intensity will increase to 100%. Press <MENU> to exit focus mode and restore the settings. -
Page 19: Master/Slave
Select the desired option (SCurve, Linear, Square, or Inverse Square). Dimmer Profiles This setting determines how fast the output of the Ovation E-4WW IP changes when you modify the output value. This setting provides four different options to simulate the dimming curve of an incandescent lighting product. -
Page 20: Configuration (Dmx)
Fan auto Fan on Fan off Fan silent Reserved for future use Index CW Fast to Slow Gobo Rotator Stop CCW Slow to Fast Ovation E-4WW IP User Manual Rev. 1... -
Page 21: Maintenance
6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Ovation E-4WW IP User Manual Rev. 1... -
Page 22: Technical Specifications
I/O Connector Channel Range 5-pin XLR 2, 3, 4 or 7 Ordering Product Name Item Name Item Code UPC Number Ovation E-4WW IP OVATIONE4WWIP 03122048 781462223960 UL 1573 CSA C22.2 No. 166 E113093 Ovation E-4WW IP User Manual Rev. 1... -
Page 23: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Ovation E-4WW IP User Manual Rev. 1...
