Summary of Contents for Chauvet Professional OVATION REVE E-3 IP

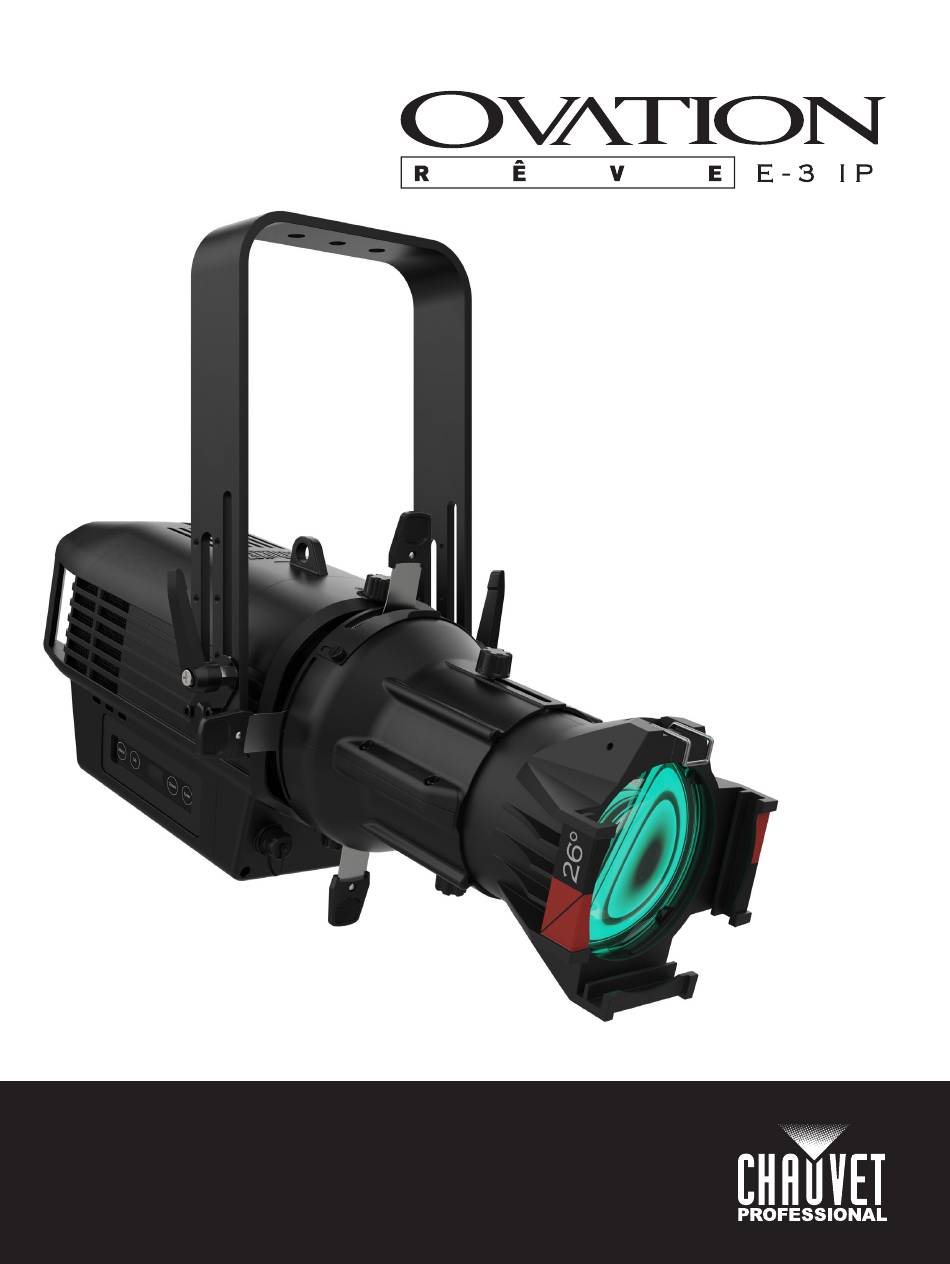

- Page 1 User Manual Model ID: OVATIONREVEE3IP...
- Page 2 Ovation Rêve E-3 IP. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, Ovation, and Ovation Rêve E-3 IP are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries.
-
Page 3: Table Of Contents
Table of Contents TABLE OF CONTENTS 1. Before You Begin ............... What Is Included ................... 1 Claims ......................1 Manual Conventions ..................1 Symbols ......................1 RF Exposure Warning for North America and Australia........ 1 Expected LED Lifespan................. 1 Safety Notes....................2 2. - Page 4 Table of Contents Color Calibration ......................LED Frequency ......................Fan Mode ........................Back Light ........................Key Lock ........................System Information ......................Virtual Color Wheel ..................17 Virtual Color Wheel Chart ....................Color Temperature Chart ....................Color Temperature DMX Chart ..................DMX Values ....................
-
Page 5: Before You Begin
EFORE EGIN 1. Before You Begin What Is Included • Ovation Rêve E-3 IP • Soft focus filter • Seetronic Powerkon IP65 power cord • Quick Reference Guide • Ovation metal gobo holder Claims Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition. -
Page 6: Safety Notes
EFORE EGIN Safety Notes Read all the following safety notes before working with this product. These notes contain important information about the installation, usage, and maintenance of this product. This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained, certified technicians. -
Page 7: Introduction

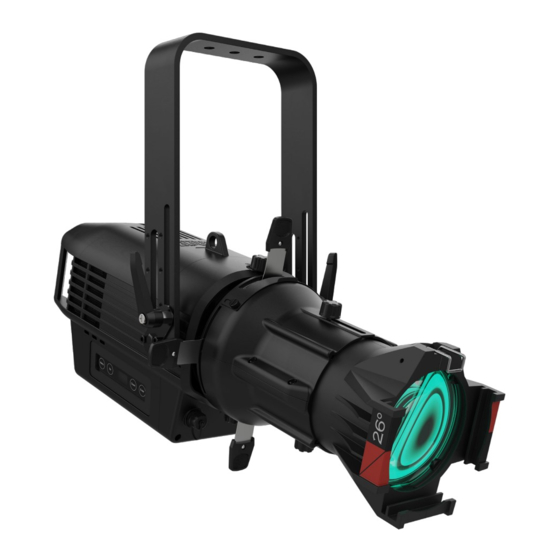

NTRODUCTION 2. Introduction Description Ovation Rêve E-3 IP is an outdoor-ready, LED Ellipsoidal Reflector Spotlight (ERS)-style lighting fixture that is virtually silent and IP65 rated. It’s perfect for studio, theatre, and film applications—both indoors and out. It has the brightest light engine that can produce full-spectrum colors and tunable whites. Ovation Rêve E-3 IP features adjustable PWM, +/- green adjustment and emulated red-shift, and ultra-smooth 16- bit dimming curves and speeds to complement any lighting scheme, anywhere. -
Page 8: Product Overview
NTRODUCTION Product Overview Beam focus knobs (x2) Bracket adjustment knobs (x2) Framing shutters (x4) Power in USB port Focus mode button 5-pin DMX Power out Handle / in /out Mounting Safety loop bracket Lens tube Display Menu buttons (sold separately) Page 4 of 23 Ovation Rêve E-3 IP User Manual Rev. -
Page 9: Product Dimensions
NTRODUCTION Product Dimensions 20.84 in (529 mm) 6.28 in (24.72 mm) 19.75 in (502 mm) 3.15 in (80 mm) 12.72 in (323 mm) Page 5 of 23 Ovation Rêve E-3 IP User Manual Rev. 3... -
Page 10: Setup
ETUP 3. Setup AC Power Each Ovation Rêve E-3 IP has an auto-ranging power supply that works with an input voltage range of 100 to 240 V~, 50/60 Hz. To determine the power requirements for each Ovation Rêve E-3 IP, refer to the label affixed to the product or to the Technical Specifications chart in this manual. -
Page 11: Master/Slave Connectivity
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. For CHAUVET Professional line of mounting clamps, go to: http://trusst.com/products/. Orientation Always mount this product in a safe position, ensuring that there is adequate room for ventilation, configuration, and maintenance. -
Page 12: Procedure
ETUP Procedure The Ovation Rêve E-3 IP comes with a double-bracketed yoke that can be used as a floor stand or to which mounting clamps can be attached for hanging. Mounting clamps must be purchased separately. Ensure that the clamps can support the weight of this product. Use at least one mounting point per product where necessary. Mounting Diagram Mounting clamp Safety cable... -
Page 13: Soft Focus Filter
ETUP Soft Focus Filter The version 2 of the Ovation Rêve E-3 IP comes with the soft focus filter already pre-installed in the shutter barrel, in front of the shutter blades and is being held by four filter holders. • To remove the soft focus filter, gently squeeze and slide the filter out from under the four filter holders. -
Page 14: Usb Software Update
ETUP USB Software Update The Ovation Rêve E-3 IP allows for software update through USB using the built-in USB port. To update the software using USB flash drive, do the following: 1. Power on the fixture and plug the flash drive into the USB port. 2. -
Page 15: Operation
PERATION 4. Operation Control Panel Operation Button Function <MENU> Exits from the current menu or function Enables the currently displayed menu or sets the currently selected value in to the current <ENTER> function <UP> Navigates upward through the menu list or increases the numeric value when in a function Navigates downward through the menu list or decreases the numeric value when in a <DOWN>... -
Page 16: Menu Map
PERATION Menu Map Refer to the Ovation Rêve E-3 IP product page on www.chauvetprofessional.com for the latest menu map. Main Level Programming Levels Description Selects DMX address (*highest channel 001–512* Address restricted to personality chosen) Virtual Color Wheel Color Temperature 1-channel: dimmer Manual Color Mixer 5-channel: dimmer, virtual color wheel... - Page 17 PERATION Main Level Programming Levels Description 2800K 2900K 3000K 3100K 3200K 3300K 3400K 3500K Dimmer 0–255 3600K 3700K 3800K 3900K 4000K 4100K 4200K 4300K Preset white color temperatures. Emulates 4400K Color a tungsten lamp at the specified color 4500K Temperature temperature.
- Page 18 PERATION Main Level Programming Levels Description SCurve Linear Dimmer Sets the dimmer curve Curve Square Inverse Square Linear dimmer Dimmer Dimming curves, from fast (Dimmer 1) to Mode Dimmer 1–3 slow (Dimmer 3) Deactivates color calibration Sets red LED maximum value Green Sets green LED maximum value Color...
-
Page 19: Configuration (Standalone)
PERATION Configuration (Standalone) Use standalone configuration to operate the product without a DMX controller. Virtual Color Wheel Go to the Virtual Color Wheel main level. Select Virtual Color Wheel. Select the desired gel color (see Virtual Color Wheel Chart). Select the desired output level (000–255). Color Temperature To select a color temperature, do the following: Go to the Virtual Color Wheel main level. -
Page 20: Dimmer Curve
PERATION Dimmer Curve To set the dimmer curve, follow the instructions below: Go to the Dimmer Curve main level. Select the desired option (SCurve, Linear, Square, or Inverse Square). Dimmer Profiles This setting determines how fast the output of the Ovation Rêve E-3 IP changes when the output value is modified. -
Page 21: Virtual Color Wheel
PERATION Virtual Color Wheel The Ovation Rêve E-3 IP includes a feature called the Virtual Color Wheel (VCW). This feature is available as a standalone control mode for manual use and as a control channel in select DMX personalities. More than 30 premixed colors, custom blended by Chauvet engineers, are available to call up for easier programming. -
Page 22: Color Temperature Chart
PERATION Color Temperature Chart Color Temperature Red Value Green Value Blue Value Amber Value Mint Value 2800K 2900K 3000K 3100K 3200K 3300K 3400K 3500K 3600K 3700K 3800K 3900K 4000K 4100K 4200K 4300K 4400K 4500K 4600K 4700K 4800K 4900K 5000K 5100K 5200K 5300K 5400K... -
Page 23: Dmx Values
PERATION DMX Values 18Ch / 14Ch1 / 14Ch2 / 12Ch 12Ch 14Ch1 14Ch2 18Ch Function Value Percent/Setting Dimmer 000 255 0–100% – Dimmer fine 000 255 0–100% 000 255 0–100% – Red fine 000 255 0–100% Green 000 ... -
Page 24: 8Ch / 6Ch / 5Ch / 1Ch
PERATION 8Ch / 6Ch / 5Ch / 1Ch Function Value Percent/Setting – Dimmer 000 255 0–100% – – 000 255 0–100% – – Green 000 255 0–100% – – Blue 000 255 0–100% – – Amber 000 ... -
Page 25: Technical Information
ECHNICAL 5. Technical Information Product Maintenance To maintain optimum performance and minimize wear, clean this product frequently. Usage and environment are contributing factors in determining the cleaning frequency. Clean this product at least twice a month. Dust build-up reduces light output performance and can cause overheating. -
Page 26: Technical Specifications
ECHNICAL PECIFICATIONS 6. Technical Specifications Dimensions and Weight Length Width Height Weight Fixture only 20.84 in (529.3 mm) 12.72 in (323 mm) 19.75 in (501.7 mm) 20.6 lbs (9.34 kg) Power Power Supply Type Range Voltage Selection Switching (internal) 100 to 240 VAC, 50/60 Hz Auto-ranging Parameter 100 V, 60 Hz... -
Page 27: Contact Us
ONTACT Contact Us General Information Technical Support Chauvet World Headquarters Address: 3360 Davie Rd. Voice: (844) 393-7575 Davie, FL 33314 Fax: (954) 756-8015 Voice: (954) 577-4455 Email: chauvetcs@chauvetlighting.com Fax: (954) 929-5560 Toll Free: (800) 762-1084 Website: www.chauvetprofessional.com Chauvet U.K. Address: Pod 1 EVO Park Email: UKtech@chauvetlighting.eu Little Oak Drive, Sherwood Park...
