Parallel control unit II UP/AP
Operating and installation instructions
General information

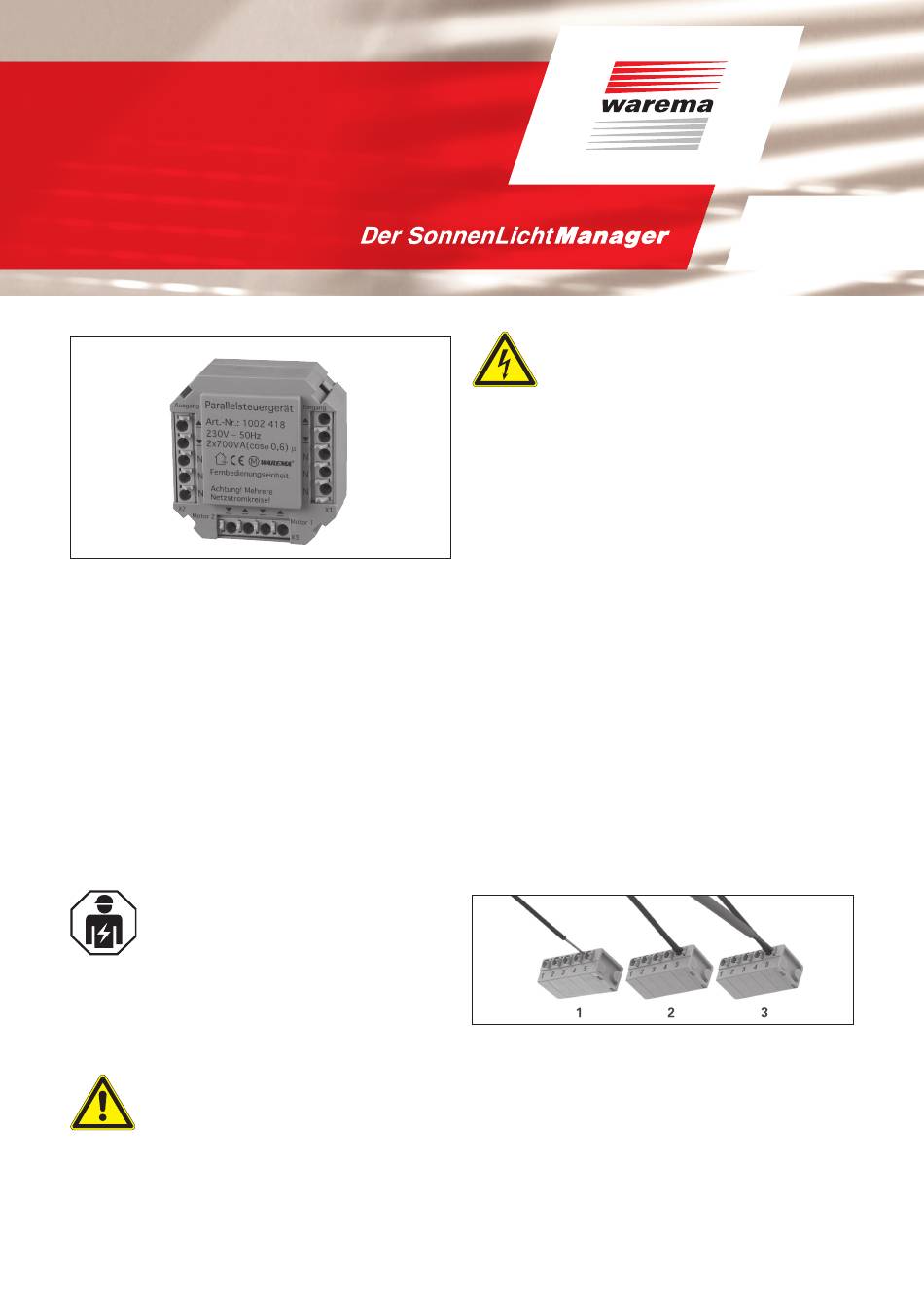

Fig. 1 Parallel control unit II UP/AP
The parallel control unit enables the simultaneous opera-
tion of two 230 VAC asynchronous motors. The drives are
supplied via the driving element. The parallel control unit
II UP is equipped with terminals for looping through lines,
making it possible to form larger drive groups that can be
controlled globally. Because of its compact design, the
unit can be mounted in a flush-mounted junction box. A
surface-mounted variant (parallel control unit II AP) with a
preassembled line STAK/STAS-3 is also available.
Intended use
The parallel control unit was developed to control sun
shading systems. The approval of the manufacturer must
be obtained for uses outside of the purposes listed in
these instructions.
Safety instructions
WARNING
The electrical installation (assembly)/
dismantling must be performed by a certi-
fied electrician in accordance with VDE
0100 and/or with the standards and legal
requirements of the country in which the
device is being installed. The electrician
must observe the installation instructions
included with the electrical devices sup-
plied.
WARNING
If hazard-free operation cannot be as-
sumed, the device may not be started or
must be deactivated. This assumption is
justified if:
 t he housing or the connecting lines show
signs of damage,
 the device is no longer working.
warema_890341_alhb_en_v9•2022-10-01
W ARNING
It is important to comply with the follow-
ing instructions in the interest of personal
safety.
Do not allow children to play with the operating elements
■
of the control or remote control. Store the remote controls
out of reach of children.
Make sure that no persons or objects are in the range of
■
movement of the driven parts (blinds, window, etc.).
Disconnect the device from the supply voltage if cleaning
■
or other maintenance work must be performed.
Function
The corresponding Motor 1 and Motor 2 outputs are acti-
vated throughout a 230 V control command at the HIGH or
DOWN input.
Installation
The device is designed for installation in a flush-mounted
junction box ø70 mm.
■ Only such lines as are used for the wiring of the device
should be routed into this box.
The motor control unit is electrically connected according
to the wiring diagram on the reverse.
Electrical installation
An on-site overload current protection device (fuse) and a
disconnecting and isolating switch to switch off the entire
system must be provided.
Handling the spring terminals
Fig. 2 Connecting and disconnecting the line connections
After the wire is stripped, it is pressed into the terminal (1)
until the insulation on the wire enters the terminal and the
line is securely held in the terminal (2). To disconnect the
line, the appropriate unlock button needs to be pressed in
as far as it will go using a screw driver, and the line then
removed from the terminal (3).
Commissioning
After the device is fully mounted and the power supply is
connected, the device is ready for operation.
We reserve the right to make technical modifications
Valid from
1 October 2022
Keep for future use.
