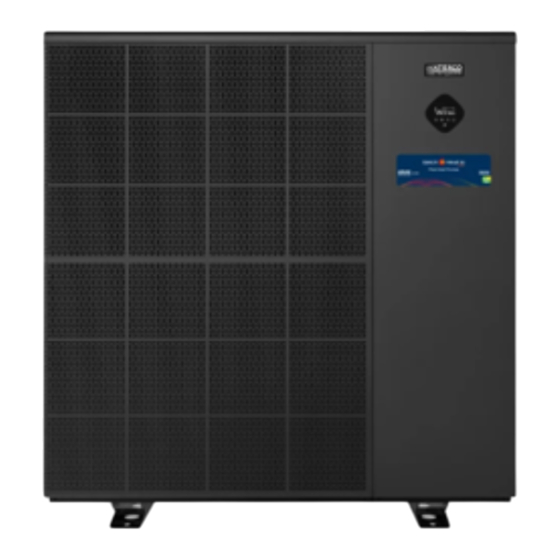

WATERCO POOL HEAT PUMP
Installation and
Operation Manual
WARNING
This equipment must be installed and serviced by a qualified technician.
!
Improper installation can create electrical hazards which could result in property
damage, serious injury or death. Improper installation will void the warranty.
Notice to Installer
This manual contains important information about the installation, operation and
safe use of this product. Once the product has been installed this manual must
be given to the owner/operator of this equipment.
60kW
www.waterco.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ElectroHeat Pro 60kW and is the answer not in the manual?

Questions and answers

Summary of Contents for Waterco ElectroHeat Pro 60kW

  • Page 1 AUCKLAND, NEW ZEALAND TEL: +64 9 525 7570 ACT DISTRIBUTION TEL: +61 2 6280 6476 WATERCO (C) LIMITED GUANGZHOU, CHINA TEL: +86 20 3222 2180 www.waterco.com Waterco Limited ABN 62 002 070 733 Waterco Limited ABN 62 002 070 733 (ZZM1835) 09/2024...
  • Page 2: Table Of Contents

    • The pool heat pump should be deactivated if the pool or spa has been drained. Remote Control Connections Pool Heat Pump Has Ice Formed On The Operating Range • Waterco pool heat pumps must be installed by a suitably qualified person in accordance Evaporator Coil Introduction of Different Modes with current Regulatory Standards, the applicable Wiring Rules (AS3000) and local...
  • Page 3: A Note To You

    Keep this manual and your original proof of purchase receipt for warranty and Congratulations! future reference. Thank you for choosing a Waterco Electroheat PRO 60 inverter heat pump to heat On the base of your pool heat pump is a name plate which contains information such your pool.
  • Page 4: Installation Instructions

    05 I Pool Heat Pump Pool Heat Pump I 06 INSTALLATION INSTRUCTIONS Installation Clearances Air is pulled through the evaporator coil at the rear of the unit and discharged from Location the two front fan grills. Clearances must be allowed in front and around the unit for To gain maximum efficiency for your pool heat pump please follow all instructions unrestricted air discharge and service access.
  • Page 5: Installation

    Please connect a pipe with 1 inch diameter to Water By-pass Kit drainage hole to drain the condensation water away from the unit. A bypass kit consisting of 3 X two way valves must be installed for adjustment of water flow and ease of service. Waterco offer prefabricated water bypass kits to fit their heat pump domestic range. Ask your local Waterco sales office for details.
  • Page 6: Plumbing Diagram

    It may be necessary to install Vertical Trap an earth leakage circuit breaker. Water By-pass POOL Waterco recommend connecting the unit to an isolating switch to allow ease of service Check and maintenance. Valve Water In...
  • Page 7: How To Connect To The Terminal Board

    11 I Pool Heat Pump Pool Heat Pump I 12 How to connect to the terminal board Electrical Wiring Diagram For power supply: 400V 50Hz Remove the screws Disassemble the right down panel References for protecting devices and cable specification and terminal board cover MODEL IMC60WAT...
  • Page 8: Bonding Diagram

    13 I Pool Heat Pump Pool Heat Pump I 14 Operating Range Bonding Diagram To provide you comfort and pleasure, please set swimming pool water temperature efficiently and economically. Pool House Breaker Box Chlorine Generator a. The heat pump can work between air -20°C - 43°C, b.
  • Page 9 15 I Pool Heat Pump Pool Heat Pump I 16 Electrical wiring schematic Water pump control and timer connection 1: Water pump timer Water Pump: 400V Voltage Please install contactor Breaker/fuse (Customer prepare) Power Cord Power Supply 400V~/50Hz 2: Water pump wiring of Heat Pump Earthing Note: The installer should connect 1 parallel with 2 (as above picture).
  • Page 10: Performance Specifications

    17 I Pool Heat Pump Pool Heat Pump I 18 Performance Specifications Wi-Fi Operation PERFORMANCE CONDITION: Air 27°C/ Water 27°C/ Humid. 80% NOTE: It is essential the heat pump is able to connect to the premise wifi signal. Premise owners are responsible for supplying a strong wifi signal to the area the heat pump will be installed to ensure Turbo Mode Heating capacity (kW)
  • Page 11: Create Family

    19 I Pool Heat Pump Pool Heat Pump I 20 Wi-Fi Operation Wi-Fi Operation APP Pairing Register through third-party application a. With Bluetooth 1. Please confirm that you’re connected to Wi-Fi and your Bluetooth is on. 2. Click “Add Device”, and then follow the instructions to pair device. Create Family Please set family name and choose location of device.
  • Page 12: Operation

    21 I Pool Heat Pump Pool Heat Pump I 22 Wi-Fi Operation Wi-Fi Operation a. With Wi-Fi Operation 1. Please make sure you are connected to Wi-Fi. 1. For heat pump with Heating function only: 2. Press “ ”for 3 seconds to unlock the screen. Press “...
  • Page 13: Share Devices To Your Family Members

    10°C / 50°F Adjustment Of The Bypass Valves Waterco PRO 60 pool heat pumps do not require the water by pass valves adjusted to cope with cooler water temperatures. In the event of low water temperatures, the PRO 60 inverter pool heat pumps increase the operating frequency of the compressor which in turn increases the output capacity of the unit.
  • Page 14: Pool Heat Pump Running Time

    25 I Pool Heat Pump Pool Heat Pump I 26 Pool Heat Pump Running Time Operation Guide Most units should be sized to operate during the pool filtering cycle time of 8-10 daytime hours daily during warmer months and up to 8 hours daily during the daytime Key Function in winter months.
  • Page 15: Screen Display

    27 I Pool Heat Pump Pool Heat Pump I 28 Screen Display Operation Instruction Plugged without turning on Screen Lock 1. There is automatic screen lock function. No operation for more than 30 seconds, screen will automatically lock, and screen will dim while the lock button will light on, and other button light will be off.
  • Page 16 29 I Pool Heat Pump Pool Heat Pump I 30 Operation Instruction Operation Instruction Operating frequency Defrosting Compressor icon lights on during operation. Operation frequency speed will be 1. Automatic defrosting: When machine is auto defrosting, will flash, and return showed on screen as below: to previous working mode when it finishes.
  • Page 17: Maintenance Of Your Pool Heat Pump

    MAINTENANCE OF YOUR POOL HEAT PUMP Winterising Procedure Waterco pool heat pumps have been specifically engineered to give you years of satisfaction and enjoyment in the pool. If the pool heat pump is stored in a place where the temperature drops below the freezing point of 0˚C / 32°F;...
  • Page 18: General Safety Instructions

    Please ensure the unit and any related equipment is installed in accordance with the HOURS WITHOUT DRAINING IT. Make sure you leave the bypass valves as shown installation manual. If not, the Waterco warranty will not apply and the customer may in Figure 1.
  • Page 19: Fan Blades Turn, But Compressor Is Not Functioning

    2. Open the bypass valve. (refer to drawing on page 5) 3. Close the IN and OUT water valves on the unit. 4. Waterco recommend the use of a solar cover to retain heat in pool water. Pools 4. Restart the pool pump. The pool heat pump must remain OFF.
  • Page 20: Circuit Breaker Trips

    If you have purchased a remote control (or other equipment), ensure the equipment is correctly installed. If an operational issue originates from incorrect operation or installation of this equipment, Waterco’s warranty will not apply and you will have to pay the cost of the service call.
  • Page 21: Failure Solution And Code

    39 I Pool Heat Pump Pool Heat Pump I 40 Failure solution and code Protection & Failure Code Failure Reason Solution NO. Display Protection code description When powered on, the This is normal. Please wait until No water protection (not failure) Startup code controller displays a code it disappears.
  • Page 22: Warranty

    E. Damage, issues caused by the use of an accessory, component or equipment not 7. Prior to contacting Waterco for assistance or service, in order to qualify for a warranty supplied by Waterco. claim, the original purchaser must have the model name and serial number along with a proof of the original purchase date.
