Grizzly G0603X Parts Manual

25" extreme series planer

Hide thumbs Also See for G0603X:

Owner's manual (72 pages)

Table Of Contents

Table of Contents

Quick Links

Download this manual See also: Owner's Manual

��

�

��

�

��

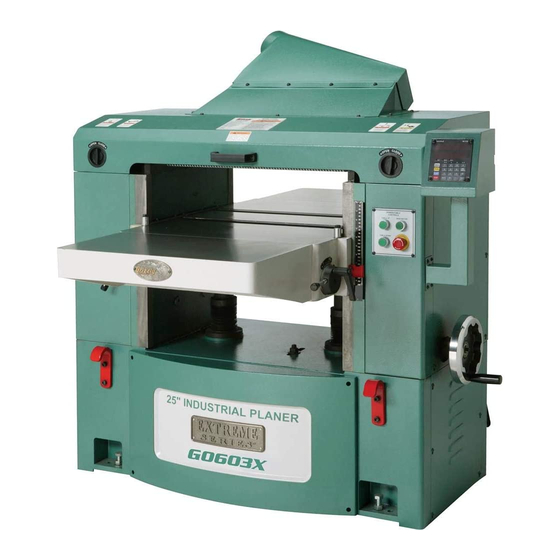

G0603X 25" Extreme Series Planer

Base Parts Breakdown

��

�

��

�

��

�

��

�

��

�

��

�

��

�

��

�

��

�

��

-51-

Table of Contents

Summary of Contents for Grizzly G0603X

Page 1: Base Parts Breakdown
�� -51- G0603X 25" Extreme Series Planer...
Page 2: Base Parts List
SHAFT P6203 BALL BEARING 6203ZZ P0603X204 LEAD SCREW P0603X161 BEARING P0603X205 SPECIAL RING PR06M EXT RETAINING RING 16MM PFB13M FLANGE BOLT M4-.7 X 8 P0603X163 GEAR P0603X207 DUST BOOT P0603X164 SHAFT P0603X208 LEAD SCREW -52- G0603X 25" Extreme Series Planer...
Page 3 P0603X253 BUTTON HD CAP SCR M5-.8 X 10 P0603X225 LIFTING HOOK P0603X261 CORD PSB72M CAP SCREW M10-1.5 X 30 P0603X263 SPACER PB159M HEX BOLT M16-2 X 80 P0603X267 IDLER SPROCKET PN13M HEX NUT M16-2 -53- G0603X 25" Extreme Series Planer...
Page 4: Column Parts Breakdown
�� -54- G0603X 25" Extreme Series Planer...
Page 5: Column Parts List
SPONGE 40 X 10 X 2 P0603X070 WAVY WASHER P0603X257 HEX BOLT M10-1.5 X 70 P0603X095 SHAFT P0603X262 PAD 33 X 10 X 2 PRP94M ROLL PIN 5 X 14 P0603X267 IDLER SPROCKET P0603X101 RIGHT COLUMN -55- G0603X 25" Extreme Series Planer...
Page 6: Electric Parts Breakdown
�� -56- G0603X 25" Extreme Series Planer...
Page 7: Electric Parts List
CONTROL 220V CONTACTOR TABLE MOTOR 220V OVERLOAD P0603X313 CSA CORD 18AWG/2C/1300MM P0603X339 RELAY P0603X314 CSA CORD 18AWG/3C/1320MM P0603X340 WAVE FILTER 1MF, 120 OHM, 2E P0603X315 CSA CORD 18AWG/2C/820MM P0603X341 TRANSFORMER P0603X316 STRAIN RELIEF NB-2430 -57- G0603X 25" Extreme Series Planer...
Page 8: Gearbox Parts Breakdown
�� -58- G0603X 25" Extreme Series Planer...
Page 9: Gearbox Parts List
GEAR BOX PSB158M CAP SCREW M3-.5 X 16 P0603X451 LEFT GEAR BOX COVER P0603X424 SHAFT P0603X452 RIGHT GEAR BOX COVER PK06M KEY 5 X 5 X 10 PLW03M LOCK WASHER 6MM P0603X426 OIL SEAL -59- G0603X 25" Extreme Series Planer...
Page 10: Headstock Parts Breakdown
�� -60- G0603X 25" Extreme Series Planer...
Page 11: Headstock Parts List
COLLAR P0603X289 CHEATER BAR FOR 1/4" BIT P0603X077 KEY 8 X 7 X 16 P0603X290 PRESSURE GAUGE FOR A/S KIT P0603X078 SHAFT P0603X291 PRESSURE VALVE FOR A/S KIT P0603X079 BUSHING P0603X292 AIR SCREWDRIVER KIT -61- G0603X 25" Extreme Series Planer...
Page 12: Table Parts Breakdown
Table Parts Breakdown -62- G0603X 25" Extreme Series Planer...
Page 13 CAP SCREW M8-1.25 X 20 PB01M HEX BOLT M10-1.5 X 30 P0603X259 SPECIAL SCREW P0603X117 ROLLER BRACKET P0603X260 BUSHING P0603X118 BALL BEARING 6203-2NSE PEC015M E-CLIP 8MM P0603X119 ROLLER P0603X265 BRACKET PW01M FLAT WASHER 8MM P0603X266 BRACKET P0603X121 SHAFT -63- G0603X 25" Extreme Series Planer...
Page 14: Label Placement
MUST maintain the original location and readability of the labels on the machine. If any label is removed or becomes unreadable, REPLACE that label before using the machine again. Contact Grizzly at (800) 523-4777 or www.grizzly.com to order new labels. -64-...
