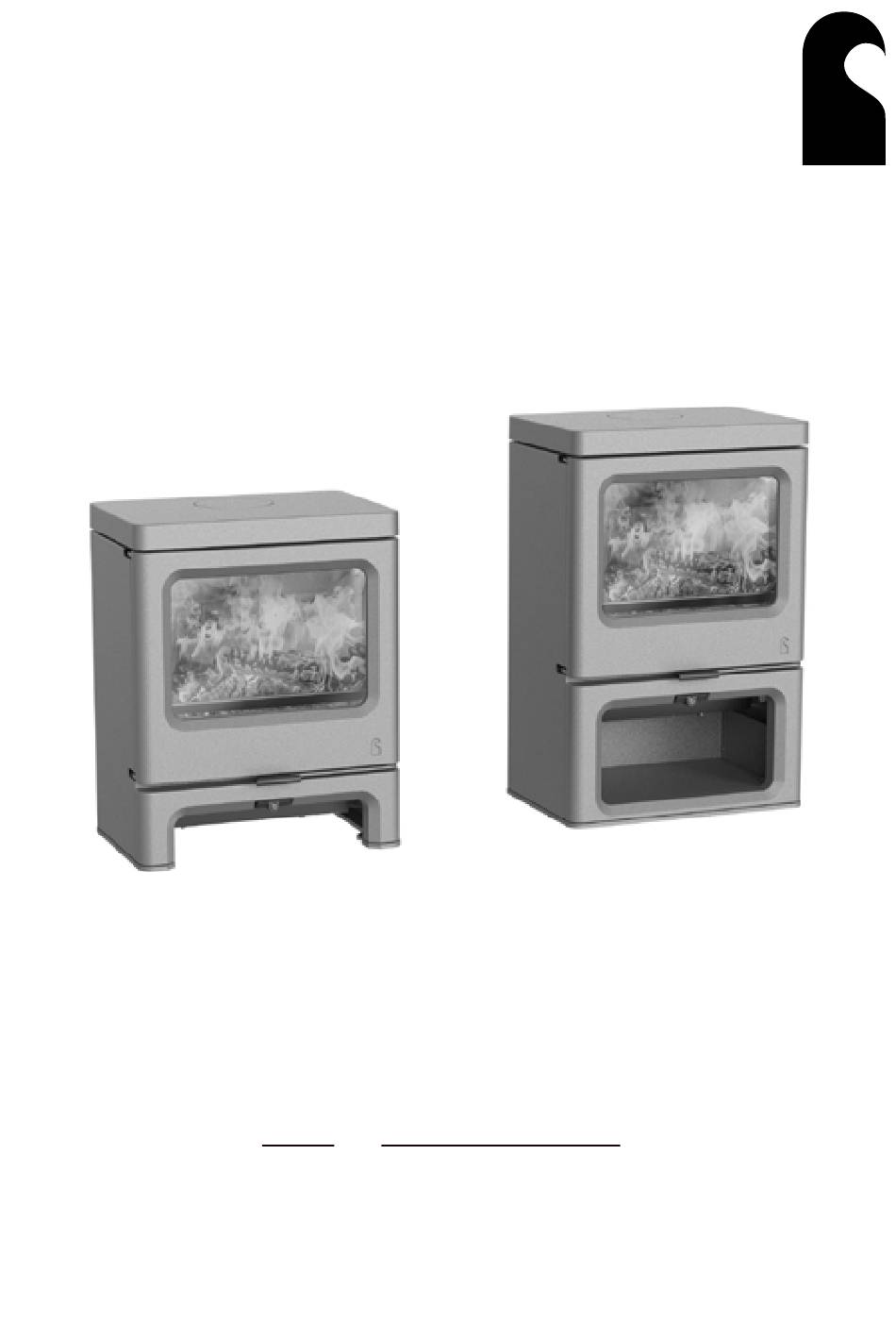

- Page 1 ® skye E700D E700D c h ar n wo o d c h ar n wo o d Operating & Installation Instructions...
-
Page 3: Table Of Contents
CONNECTIONS TO FLUES SOOT DOORS PRE LIGHTING CHECK COMMISSIONING AIR CONTROL CONNECTIONS ELECTRONIC COMPONENT END OF LIFE CONSIDERATIONS. MARKET SURVEILLANCE SKYE E700 DIMENSIONS PRODUCT FICHE EU INFORMATION SHEET MARKING AND TECHNIC AL DATASHEET CERTIFIC ATION Ref. Skye E700D v2 07.2024... -
Page 4: Quick Guide
Avoid damaging the temperature sensor, located on the right hand side, above upper baffle. SERVICING Stove should be serviced by a professional at least once a year. LIGHTING AND CONTROLLING THE FIRE Suitable fuel for your Charnwood: Wood logs Unsuitable fuels: Petroleum coke Liquid fuel Household waste... -
Page 5: Operating Instructions
Always use the gloves provided when re-fueling and when removing the ashpan. Your Charnwood Skye E700D is fitted with a fixed grate to enable wood to be burned and ash to be removed with ease. Do not use or store any flammable liquids, substances or gases... -
Page 6: Controlling The Fire
OPERATING INSTRUCTIONS ® CONTROLLING THE FIRE allowing manual operation during a power cut). A long press then selects the chosen emergency mode and it is recommended that the There are two ways to control the fire - using the air control power to the stove is turned off after approximately 30 seconds, button on the stove (see Fig.1) or by using the app (see Fig.2) . -
Page 7: Controlling The Fire During Apower Cut
Rotate to change burn intensity CONTROLLING THE FIRE WITH THE APP Alerts The stove can also be controlled by the Charnwood app, which De/activates Overnight mode reload light on gives more refined controls and feedback to the user. This can be... -
Page 8: Refuelling
To make ash disposal easier there is a special ash container available long as possible. In normal operation the stove door should be shut - the Charnwood ash carrier. This may be purchased from your imediately after refueling and the stove will light the fuel. If the supplier or, in case of difficulty, from Charnwood. -
Page 9: Creosote Formation And Need For Removal
Most deposits on the glass will be burnt off simply by running the stove. If it becomes necessary to clean the glass then allow the stove USE ONLY GENUINE CHARNWOOD REPLACEMENT PARTS, to cool before opening the door: do not clean when hot. Clean the DO NOT USE SUBSTITUTE MATERIALS. -
Page 10: Throat Plate And Flueway Cleaning
OPERATING INSTRUCTIONS ® When wood is burned slowly, it produces tar and other organic They should be cleaned at least monthly, and more frequently if vapors, which combine with expelled moisture to form creosote. necessary. It is necessary to let the fire burn out and for the stove to The creosote vapors condense in the relatively cool chimney flue of be cold to carry out these operations. -
Page 11: Trouble Shooting
OPERATING INSTRUCTIONS ® to damage the stove temperature sensor that protrudes 50mm into should be noted and with a little care should enable the glass to be the right hand side of the firebox above the brick throat plate, when kept clean in most situations: sweeping the chimney. -
Page 12: Co Alarm
“Warning Note” (page 11). IF YOU NEED FURTHER HELP If you need further help with your Charnwood then your Installer will be able to provide the answers to most questions. Your Local Charnwood Premier Dealer has a great deal of experience and will also be able to provide helpful advice. -
Page 13: Health And Safety Precautions
HEALTH AND SAFETY PRECAUTIONS for combustion. The stove should be installed in compliance with local, national, and External air supply kits are available, please contact Charnwood for European standards. more information. Please take care when installing the stove that all local, national and... -
Page 14: Chimney
150mm (6 in.). When the fire door is open, it extends beyond the flat front of the stove by 480mm - Skye E700D. CHIMNEY If in doubt as to the positioning of the stove, expert advice should be In order for the appliance to perform satisfactorily the chimney sought either from the supplier or the local building inspector. -
Page 15: Soot Doors
Soot Door Positions A spacer (part 54 page 21/ part 52, page 22) is required to attach the optional vertical rear flue connector to the Skye E700D. Horizontal lengths of flue must be kept to a minimum and should not be more in length than the flue diameter. -
Page 16: Pre Lighting Check
(Fig. 14). Make sure bolt is replaced after test. FITTING THE REAR HEAT SHIELD M8 Nut The Skye E700D is supplied with a rear heat shield. The rear heat Glass Fibre Webbing Fig. 14 Flue draught sampling point... -
Page 17: Air Control Connections
INSTALLATION INSTRUCTIONS ® AIR CONTROL CONNECTIONS Fig. 17 Power and sensor plugs On installing the stove, the 9V AC/DC power supply will need to be connected to the DC power extension lead at the back of the stove Numbered and then plugged into a power source. sensor plugs The power supply and extension lead should be routed to the power outlet at the same height or lower than the point at which it exits the... -
Page 18: Considerations
INSTALLATION INSTRUCTIONS ® Fig. 19 Power connections of the Skye E700 when they reach the end of their life. A description of how to remove all the electrical components from the body of the stove, can be found below. 9V AC/DC wall mount adapter Air control The EPA website provides links to other sites that summarise the state specific legislation concerning electronic waste and also... -
Page 19: Market Surveillance
MARKET SURVEILLANCE ® To replicate the nominal performance results obtained in the type test, the following parameters must be used. Flue: 1m single wall stainless steel flue fitted to the appliance. Mode: Automatic Setting: level 2 Basic firebed: 0.23kg Kindling: 2kg / 32 x 200mm long sticks stacked in 5 layers of 4 pieces Pretest / main test: 1.6kg / 2 x 250mm long logs arranged from side to side. -
Page 20: Skye E700 Dimensions
SKYE E700 DIMENSIONS ® Top flue exit To suit 150mm (6”) flue pipe Optional rear flue adaptor Rear flue exit Air inlet FRONT SIDE REAR... -
Page 21: Parts List
PARTS LIST Charnwood Skye E700d Store Stand Parts List ® Issue C Item Part No. Description Item Part No. Description 008/TH085 Door Seal Adhesive 008/CU261 Room Thermocouple Assembly 002/DU008 Deepening Bar 010/CU066 Switch and Bracket Assembly 002/DU022 Grate 010/CU250 Manual Control Button Assembly... - Page 22 PARTS LIST Charnwood Skye E700d Low Stand Parts List ® Issue C Item Part No. Description Item Part No. Description 008/TH085 Door Seal Adhesive 008/CU260 Firebox Thermocouple Assembly 002/DU008 Deepening Bar 008/CU261 Room Thermocouple Assembly 002/DU022 Grate 010/CU066 Switch and Bracket Assembly...
- Page 23 PARTS LIST Charnwood Skye E700 Air Box Assembly Parts List ® Issue A Item Part No. Description 008/CU110 Air Control Gasket 008/CU235 Circuit Board Mount 008/CU242 Airbox Cover Gasket 008/EL325 Ribbon Cable Connector 010/CU231 Lower Plate Assembly 010/CU040 Airbox Cover...
-
Page 24: Product Fiche
EN - PRODUCT FICHE FR - FICHE DE PRODUIT PRODUCT FICHE MANUFACTURER ® MARQUE MARCHIO Bishops Way, Newport, Isle of Wight PO30 5WS, United Kingdom MARKA A Division of A.J.Wells & Sons Limited Registered in England No. 03809371 MODEL MODÈLE MODELLO MODEL EFFICIENCY CLASS... -
Page 25: Eu Information Sheet
(EU)2015/1185 - (EU)2015/1186 EU INFORMATION SHEET Model identifier(s): Charnwood Skye E700 D Store Stand Test laboratory: RRF ® Indirect heating functionality: No Notified body no: 1625 Direct heat output: 7.4(kW) Test report no: RRF – 1021 24 1070 Indirect heat output: (kW) - Page 26 (EU)2015/1185 - (EU)2015/1186 EU INFORMATION SHEET Model identifier(s): Charnwood Skye E700 D Low Test laboratory: RRF ® Indirect heating functionality: No Notified body no: 1625 Direct heat output: 7.4(kW) Test report no: RRF – 1021 24 1070 Indirect heat output: (kW)
-
Page 27: Marking And Technic Al Datasheet
BS EN 16510-1:2022 EN 16510-1:2022 (E) MARKING AND TECHNIC AL DATASHEET Model identifier(s): Charnwood Skye E700 D Low, Charnwood Skye E700 D Store Stand ® Test laboratory: RRF Notified body no: 1625 Designation of Room Leakage Combustion air Door closure Tightness Test report no: RRF –... - Page 28 BS EN 16510-1:2022 EN 16510-1:2022 (E) ® Parameter Unit Explanation Value slow Particulate matter emission at 13 % oxygen content at heat output at slow combustion if specified, rounded mg/m (13 % O to the nearest integer Minimum flue draught at nominal heat output, rounded to the nearest integer part Minimum flue draught at part load heat output if specified, rounded to the nearest integer slow...
- Page 29 BS EN 16510-1:2022 EN 16510-1:2022 (E) ® Please see table on Page 2 of 3 for for figures. Page 3 of 3...
-
Page 30: Certific Ation
A Division of A.J.Wells & Sons Limited Registered In England No. 03809371 CE certificate for compliance with BS EN16510-2-1:2022 BS EN16510-2-1:2022 ROOMHEATERS FIRED BY SOLID FUEL Model: SKYE E700D EC Certificate of conformity no: DU11-CPD-2024 & DUL11-CPD-2024 Fuel type: WOOD LOGS Rated space heating thermal output: 7.4kW... - Page 31 ®...
- Page 32 your premier dealer...
