INTERSECTOR UNDER MIRROR LED LIGHT
UNDER MIRROR MOUNT INSTALLATION:
The Intersector LED Light is designed to be mounted
under the vehicle's side mirrors and provide a warning
signal to the front and sides. It can also be surface
mounted.

INSTALLATION:

1. Loosely assemble Intersector Light, correct wedge block
and curve block (P=Passenger, D=Driver's side, Crown
Vic and Dodge Charger only) and position assembly
below side rear view mirror as shown on Page 1.
2. Carefully remove light from stack without changing
position of wedge block. Mark and drill pilot holes for #6
sheet metal screw.
3. Drill Ø3/8" hole in mirror shell if wire is to be routed
internally. If wire will be routed external of the mirror
shell this step can be ignored.
4. Dismount mirror from door.
5. The following is referencing the Ford Utility but can be
applied to other vehicles as well:
6. After pilot holes for #6 sheet metal screws are drilled
a Ø3/8" hole should then be made between the pilot
holes. It is important to avoid drilling through the power
cable as this will damage the mirror.
7. Using #6 machine screw, washer and square nut
assemble light and appropriate wedge block, curve block
(if required) and gasket. Route wire carefully through
3/8" hole and into door. Use appropriate #6 sheet metal
screws to attach light to underside of mirror. DO NOT
OVERTIGHTEN SCREWS AS THIS MAY DAMAGE THE
MIRROR OR LIGHT. Mirror may now be replaced on
vehicle.
3/4" SHEET 1/2" SHEET
METAL METAL
SCREW SCREW
USE WHEN USE WHEN
CURVE BLOCK CURVE BLOCK
IS USED IS NOT USED
UTILITY BLOCK WEDGE BLOCKS
0° (HORIZON-
10° FOR TAHOE*
TAL)*
* INDICATES FOR WHAT PART WAS DESIGNED. INSTALLATION ON
3
OTHER VEHICLES IS INSTALLER'S RESPONSIBILITY.
1.800.338.7337 / www.soundoffsignal.com
SQUARE NUT
1" SHEET
METAL
SCREW
USE WHEN
THICKER CURVE
BLOCK IS
NEEDED & 3/4"
SCREW IS NOT
LONG ENOUGH
5° FOR CROWN VIC, 15° FOR
IMPALA, CHARGER 2015-2019
& CAPRICE* FORD F-150*

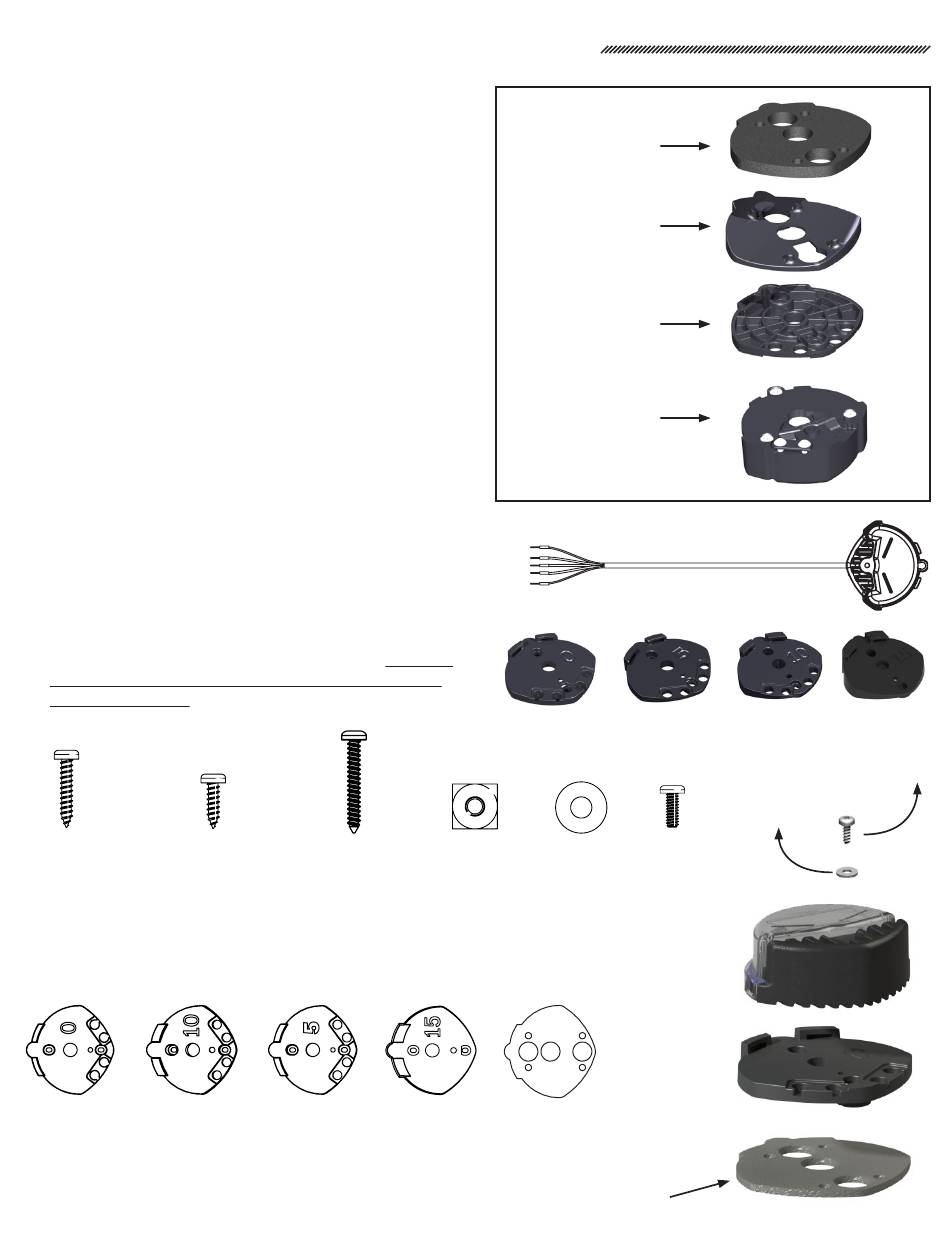

FIG. 1 FIG. 1
FOAM GASKET
CURVED SURFACE
ADAPTOR*
WEDGE*
(0°, 5°, 10° or 15°)
INTERSECTOR
UNDER MIRROR
LIGHT
UNDER MIRROR MOUNT
DEGREE DESIGNATION IS EMBOSSED IN PART
WASHER
USE TO JOIN LIGHT TO WEDGE BLOCK
AFTER CORD EXIT IS DETERMINED
GASKET
GASKET IS ALWAYS
POSITIONED NEXT TO
MIRROR SHELL
Intersector™ LIGHT CABLE
3/8" MACHINE SCREW
WASHER
3/8"
MACHINE
SCREW
INTERSECTOR UNDER MIRROR MOUNT
ENGLISH 0000JL 0923 REV A
