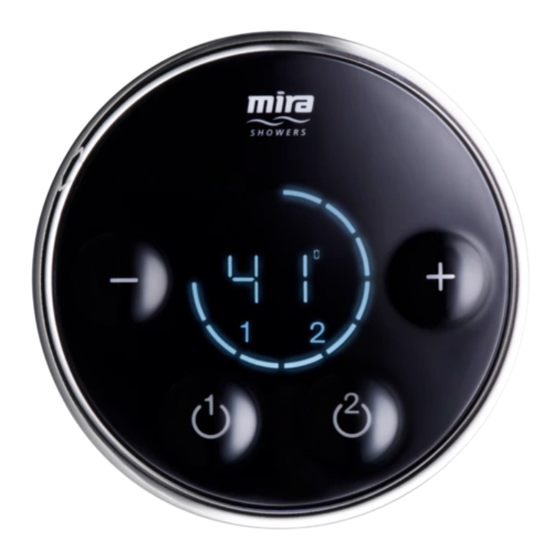

Kohler Mira Showers Platinum Dual User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Mira Platinum Dual
These instructions must be left with the user
User Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mira Showers Platinum Dual and is the answer not in the manual?

Questions and answers

Related Manuals for Kohler Mira Showers Platinum Dual

Summary of Contents for Kohler Mira Showers Platinum Dual

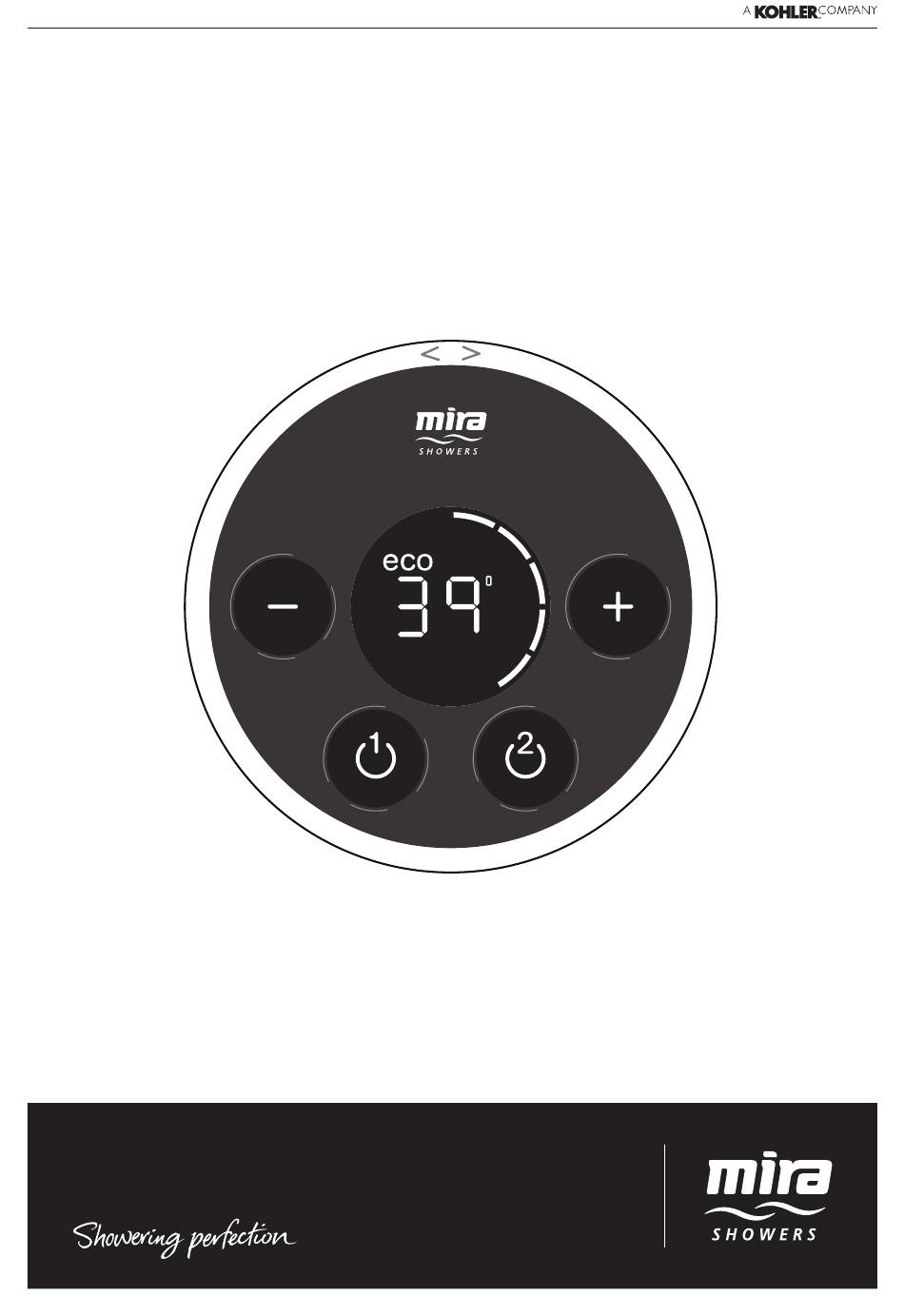

  • Page 1 Mira Platinum Dual These instructions must be left with the user User Guide...

  • Page 2: Safety Information

    INTRODUCTION General Thank you for purchasing a quality Mira product. To enjoy the full potential of your new product, please take the time to read this guide thoroughly and keep it handy for future reference. The Mira Platinum Dual Wireless Controller is a remote user interface and controls the following functions: •...

  • Page 3: Control Layout

    CONTROL LAYOUT Turn Outer Ring Showering Water Flow Adjustment Decrease Increase Flow Flow Decrease Increase Temperature Temperature Outlet 1 Outlet 2 Display Start/Stop Start/Stop...

  • Page 4: Display Symbols

    DISPLAY SYMBOLS Control Out Of Range Economy Flow Display Low Battery Display Temperature Display Flow Display Outlet 1 Selected Outlet 2 Selected Countdown Mode Enabled Clock Display...

  • Page 5: Switch On/Off

    USING THE SHOWER Switch On/Off Press “ ” or “ ” to start or stop shower. Temperature and flow settings will be same as when last used. After a short period, display will dim to help extend battery life. Approximately 5 seconds after shower has stopped, display will turn off automatically. Shower will not run continuously for more than 30 minutes before stopping automatically (5 minutes when “ECO”...

  • Page 6: Adjust Temperature

    Adjust Temperature While shower is running, press “ + ” or “ - ” to adjust temperature. Showering temperature appears on display in degrees Celsius (°C). Adjust Flow Turn outer ring clockwise or anticlockwise to adjust flow. Showering flow level appears on display in white segments.
  • Page 7 FUNCTIONS The following functions can be altered individually to adjust how the shower operates: F1 - Maximum Showering Water Temperature. Adjustable per outlet, this is the temperature the shower cannot go beyond when in use. F2 - Eco. The shower will stop automatically after 5 minutes.
  • Page 8 F7 - Control Frequency. An unreliable functioning of the appliance (not always able to change settings of shower) may indicate radio interference by another device transmitting locally on same channel. Changing channel may resolve this problem. F8 - Count Down Display Enable. If enabled, the remaining shower time is shown instead of the clock.

  • Page 9: Enter The Function Menu

    FUNCTION MENU Enter the Function Menu Note! If the display of the Wireless User Interface is asleep press buttons “+” and “ ” simultaneously to ‘wake’ it before attempting to enter Function Menu. Press and hold “+” and “ ” buttons simultaneously for approximately 5 - 10 seconds until “End”...

  • Page 10: Exit The Function Menu

    Exit the Function Menu When finished, use “+” or “-” buttons to cycle back through functions until “End” appears. Press “ ” to exit. Control is ready to use within 10 seconds of exiting the menu. If necessary, test shower to see if functions are working as expected.

  • Page 11: Changing Functions/Settings

    CHANGING FUNCTIONS/SETTINGS Maximum Showering Water Temperature Factory default “45°C”. Cycle menu to “F 1” and press “ ” to enter, then press “+” or “-” to toggle between which outlet you wish to set the maximum showering temperature to. The outlet selected will be indicated on the display.
  • Page 12 Factory default “off”. C y c l e m e n u t o “ F 2 ” a n d p r e s s “ ”. Press “+” or “-” to change setting “on” or “off”. Press “ ” to set. Press “...
  • Page 13 Warm-Up Factory default “off”. Note! Function will not work with combination boilers. C y c l e m e n u t o “ F 3 ” a n d p r e s s “ ”. Press “+” or “-” to change setting: Selected outlet will warm up.

  • Page 14: Clock Setting

    Clock Setting Factory default “04:00” (“10:00” once successfully paired to a digital mixer valve and batteries removed / re-inserted) C y c l e m e n u t o “ F 4 ” a n d p r e s s “...

  • Page 15: Clock Display

    Clock Display Factory default “on”. C y c l e m e n u t o “ F 5 ” a n d p r e s s “ ”. Press “+” or “-” to change setting “on” or “off”. Press “...

  • Page 16: Flow Range

    Flow Range For use with High Pressure / Combi Valve version only. Factory default “1 - 99” Cycle menu to “F 6” and press “ ” to enter, then press “+” or “-” to toggle between which outlet you wish to adjust the flow range of.
  • Page 17 H i g h e r l i m i t i s d i s p l a y e d , e . g . “H 99”. Turn the chrome outer ring adjust flow to desired higher limit 1-99. (Most plumbing systems may achieve maximum flow before 99.) Press “...

  • Page 18: Control Frequency

    Control Frequency Factory default “1”. Note! This should only be changed if you are experiencing wireless intererence. C y c l e m e n u t o “ F 7 ” a n d p r e s s “...

  • Page 19: Countdown Enable

    Countdown Enable Factory default “off “. C y c l e m e n u t o “ F 8 ” a n d p r e s s “ ”. Press “+” or “-” to change setting “on” or “off ”. Press “...

  • Page 20: Shower Run Time

    Shower Run Time Factory default “30 minutes“. C y c l e m e n u t o “ F 9 ” a n d p r e s s “ ”. Press “+” or “-” to change the amount of time the shower will run before switching itself off.

  • Page 21: Bath Fill Mode

    Bath Fill Mode Factory default “off ”. Cycle menu to “F 10” and press “ ”. Press “+” or “-” to toggle between options “on” ,”Lrn” and “off”. Note! selecting either ‘on’ and ‘Lrn’ will enable further options in the function menu: = see “Bath Fill Duration and Temperature”...
  • Page 22 Bath Fill Duration and Temperature - (ON) Cycle through menu and set “Bath Fill Mode” to “on”. Press “+” or “-” to toggle between which outlet you have selected to use as a bath fill. The outlet selected will be indicated on the display.
  • Page 23 Press “+” or “-” to adjust the temperature of the water supplied to the outlet selected as a bath fill. Adjustable between 30° - 48°C. Note! The maximum temperature set in function F 1 will reflect the maximum selectable outlet temperature in Bath Fill Mode. Press “...
  • Page 24 Bath Fill Learn Mode - (Lrn) Note! This function allows you to set Bath Fill parameters by actually filing the bath. Cycle through menu and set “Bath Fill Mode” to “Lrn”, press “ ” to select. Press “+” or “-” to toggle between which outlet has been selected as a bath fill.
  • Page 25 Press “+” or “-” to adjust temperature. Maximum = 48°C Minimum = 30°C When the water has reached the desired level and temperature press “ ” to store the information. Press “ ” to exit back to Function Menu. See section “Exit the Function Menu”.

  • Page 26: Replacing The Batteries

    REPLACING THE BATTERIES Change the batteries when the low battery symbol is displayed. To access the batteries, the controller must be removed from the wall. Press button to release and remove the controller from the wall. Make sure the controller is dry before removing the battery cover.

  • Page 27: Error Codes

    FAULT DIAGNOSIS Error Codes A specific problem relating to the electronic function of the shower will result in an error code being displayed on the control. The display will briefly flash “Err” followed by the error code number. Over Temperature at Control Sensor (E3 - E7) 1.

  • Page 28: Error During Function Change

    Digital Mixer Temperature Motor (E61) 1. Turn Digital Mixer off for 15 seconds. Turn back on and allow 15 seconds to reset. 2. If shower operation does not return to normal, check and, if necessary, replace Mixer Valve. (To be performed by competent tradesperson only!) 3.

  • Page 29: General Faults

    General Faults Malfunction Cause Remedy No display. The batteries are flat or Check and rectify. incorrectly fitted. Shower will not operate. Water supply isolated. Check water supply. Flat batteries. Replace batteries. Electrical supply isolated or fuse Check electrical supply. If fuse blown.
  • Page 30 Fluctuating or reduced flow. Filters blocked. Refer to “Fault Diagnosis” in the “Digital Mixer Installation Water pressure too low. Guide”. Flow rate is too low. Fluctuating water temperature. Maximum blend temperature Incorrect maximum Refer to “Maximum Shower too hot or too cold. temperature setting.

  • Page 31: Disposal And Recycling

    CLEANING Many household cleaners contain abrasives and chemical substances, and should not be used for cleaning chrome plated or plastic fittings. These finishes should be cleaned with a mild washing up detergent or soap solution, and then wiped dry using a soft cloth. DISPOSAL AND RECYCLING End of Product Life When the appliance has reached the end of its serviceable life, it should be disposed...
  • Page 32 ● Accidental or wilful damage. CustomerServiceEire@mirashowers.com ● Products purchased ex-showroom display. Mira is a registered trade mark of Kohler Mira Limited. The company reserves the right to alter product specifi cations without notice. 14648 1199703-W2-B (N86F) (1796) Kohler Mira Ltd. February 2016...
