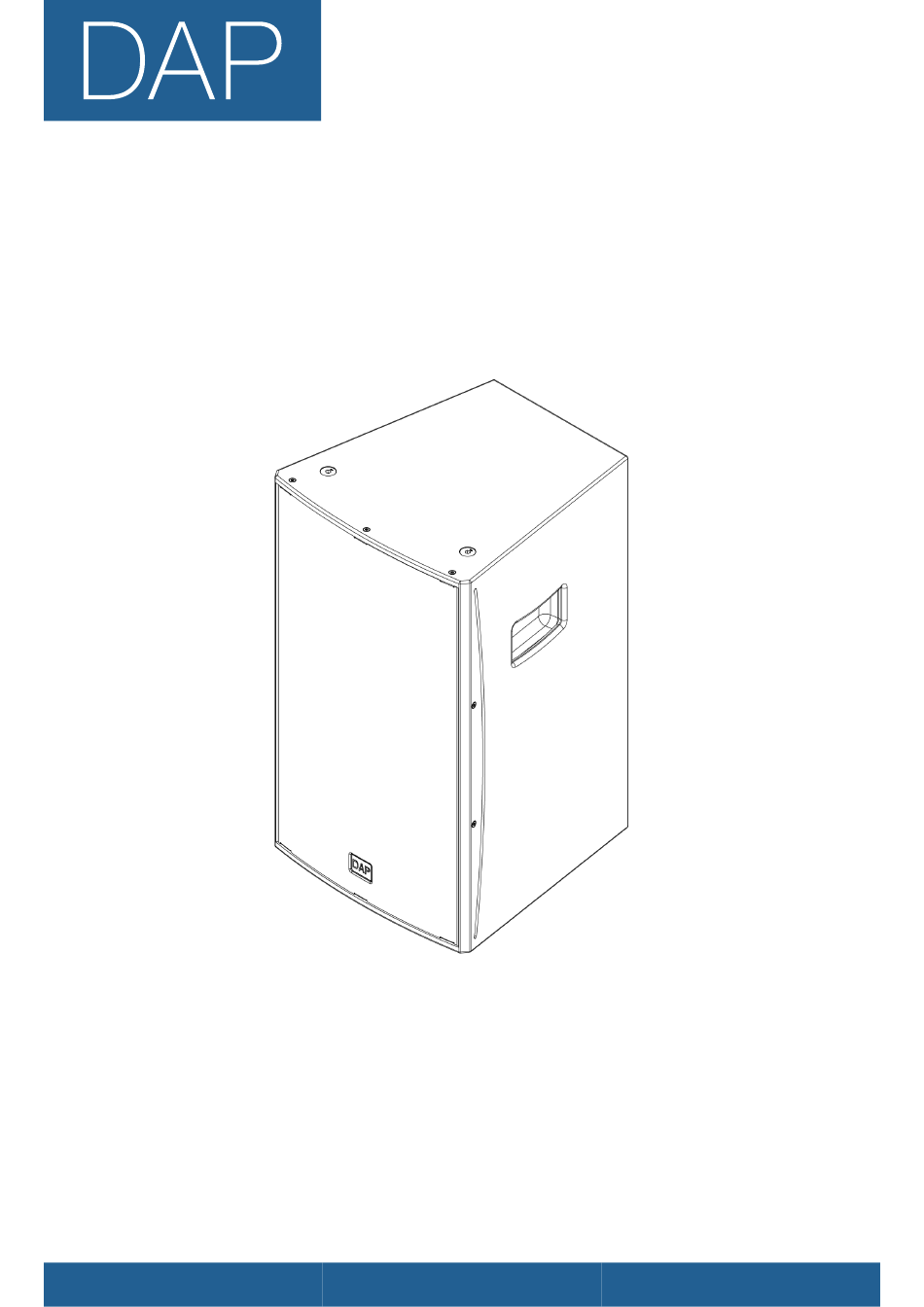

- Page 1 USER MANUAL ENGLISH V1.0 NRG-12 Mobile Product code: D3650...
- Page 2 NRG-12 Mobile Preface Thank you for purchasing this DAP product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
NRG-12 Mobile Table of contents 1. Introduction ............................ - Page 4 NRG-12 Mobile 11. Approval ............................
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: Figure 1 • • DAP NRG-12 Mobile • • User manual • • IEC cable 1.2. -
Page 6: Symbols And Signal Words
NRG-12 Mobile 1.4. Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in death or DANGER serious injury. -
Page 7: Safety
NRG-12 Mobile Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. 2.1. Warnings and Safety Instructions... - Page 8 NRG-12 Mobile • • Do not charge the battery in a sealed container. • • Do not use the battery in dusty environments. WARNING Risk of leakage caused by incorrect handling Lead-acid batteries contain diluted sulfuric acid, which is a toxic substance. If the battery leaks and the liquid inside spills, it can cause severe skin burns and eye damage.
-
Page 9: Requirements For The User
NRG-12 Mobile Attention Do not expose the device to conditions that exceed the rated IP class conditions. This device is IP20 rated. IP (Ingress Protection) 20 class provides protection against solid objects greater than 12 mm, such as fingers, and no protection against harmful ingress of water. -
Page 10: Description Of The Device

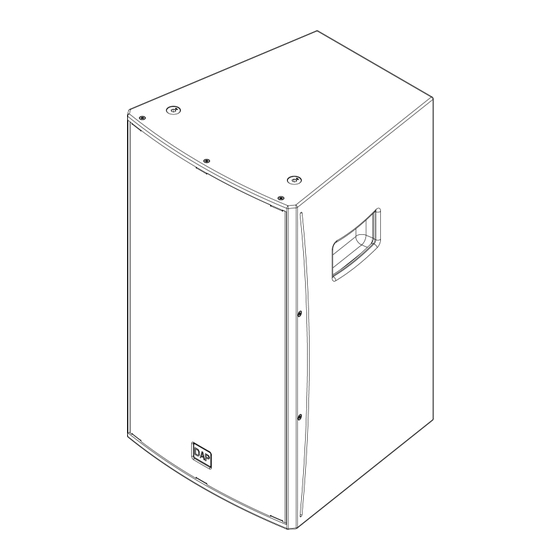

NRG-12 Mobile Description of the Device The DAP NRG-12 Mobile is a full-range, battery-powered speaker with Bluetooth 5.0. It has a peak power output of 200 W with 120 W of continuous RMS power. The separately available standard 12 V battery provides a run time of approximately 20 hours at an average volume. -
Page 11: Back View
NRG-12 Mobile 3.2. Back View Figure 3 Status LED indicators Line-level gain control Bluetooth gain control Sound level control Contour/flat switch Bluetooth Stereo button and LED indicator Power switch (On/Off/Charge) Battery cover IEC power connector IN (with integrated fuse holder) -
Page 12: Product Specifications
NRG-12 Mobile 3.4. Product Specifications Model: NRG-12 Mobile Inputs: Mono inputs 1 Mono input connector 3-pin XLR Auxiliary inputs 1 Auxiliary input connector TS unbalanced 3,5 mm Outputs: Power amplifier RMS output 120 W Power amplifier peak output 200 W Audio Specifications: THD level <... -
Page 13: Dimensions
NRG-12 Mobile Included Items: Included cables IEC Cable 3.5. Dimensions Figure 5 3.6. Optional Accessories You can additionally purchase the following accessories: • • D3649 Green Cell AGM 12 V 14 Ah • • D3665 Transport Cover for NRG-12(A) •... -
Page 14: Installation
NRG-12 Mobile Installation 4.1. Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. -
Page 15: Installation On A Speaker Stand
Make sure that the overhead structure can hold the weight of the device. The NRG-12 Mobile is a mobile speaker, but you can temporarily mount the device with 2 clamps to a truss. To mount the device, follow the steps below:... - Page 16 NRG-12 Mobile Figure 7 Use a hex key to remove the 2 hex screws from the 2 mounting openings (01). Figure 8 Insert 2 spigots (M10, thread length: min 15 mm, max 30 mm) in the 2 mounting openings (01). Turn the 2 spigots clockwise to tighten them.
-
Page 17: Battery Installation
4.5. Battery Installation The NRG-12 Mobile operates with a standard sealed lead-acid 12 V battery (see 3.6. Optional Accessories page 12). The maximum dimensions of the battery are 150 x 98 x 95 mm. The battery is not supplied with the product. -
Page 18: Setup
5.1.3. Connecting to a Streaming Source Device) Notes: • • If you use one NRG-12 Mobile device, it will output only the left channel (mono signal). • • If you pair 2 NRG-12 Mobile devices (see 6.4.2. Linking to Another Device on page 21), you can use them in TWS (True Wireless Stereo) mode. -
Page 19: Connecting To A Streaming Source Device
NRG-12 Mobile 5.1.3. Connecting to a Streaming Source Device 01) Switch on the NRG-12 Mobile. 02) Make sure that the Bluetooth gain control (06) is turned down. 03) Pair a streaming source device (see 6.4.1. Pairing with a Streaming Source Device on page 21) to the NRG-12 Mobile. -
Page 20: Operation
NRG-12 Mobile Operation 6.1. Safety Instructions for Operation Attention This device must be used only for the purposes it is designed for. This device is intended for professional use as a Bluetooth battery speaker. It can be used only indoors. This device is not suitable for households. -
Page 21: Charging The Battery
Make sure that the battery is charged to at least 50 % before storing the device. 6.3.1. Battery Status LED Indicators The NRG-12 Mobile has 4 battery status LED indicators (17). The LED indicators have the following statuses: ... -
Page 22: Bluetooth Connection
NRG-12 Mobile with a personal computer or a smartphone with Bluetooth (a streaming source device) to stream sound. You can also link 2 NRG-12 Mobile devices to use them in TWS (True Wireless Stereo) mode. Refer to the setup example (see 5.1. -
Page 23: Adjusting The Gain
• • 6.6. DSP Settings The NRG-12 Mobile has a contour/flat switch (08) to change the DSP (Digital Signal Processing) mode of the device. • • Move the contour/flat switch (08) up to the Contour position to use the Contour mode. This setting enhances the low and high tones, which makes the source signal sound full. -
Page 24: Troubleshooting
NRG-12 Mobile Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 25: Basic Cleaning Instructions
NRG-12 Mobile 8.2.1. Basic Cleaning Instructions To clean the device, follow the steps below: 01) Disconnect the device from the electrical power supply. 02) Allow the device to cool down for at least 5 minutes. 03) Clean the device with a soft, lint-free cloth. -
Page 26: Deinstallation, Transportation And Storage
Always observe the handling instructions printed on the outer carton box, for example: "Handle with care", "This side up", "Fragile". Note: There is a transport cover available for the NRG-12 Mobile (see 3.6. Optional Accessories on page 12). Contact your Highlite International dealer for more information. -
Page 27: Disposal
Approval Hereby, Highlite International declares that the device NRG-12 Mobile, product code D3650, is in compliance with Directive 2014/53/EU (RED – Radio Equipment Directive). The full text of the EU declaration of conformity is available on the respective product page on the website of Highlite International (www.highlite.com). - Page 28 DAP is a brand of Highlite International B.V.
