infobit iTrans USB32-S User Manual

2x4 usb 3.2 gen1 switcher
Hide thumbs Also See for iTrans USB32-S:

Advertisement

Quick Links

iTrans USB32-S (new)
2x4 USB 3.2 Gen1 Switcher
VER 1.0
www.infobitav.com info@infobitav.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iTrans USB32-S and is the answer not in the manual?

Questions and answers

Summary of Contents for infobit iTrans USB32-S

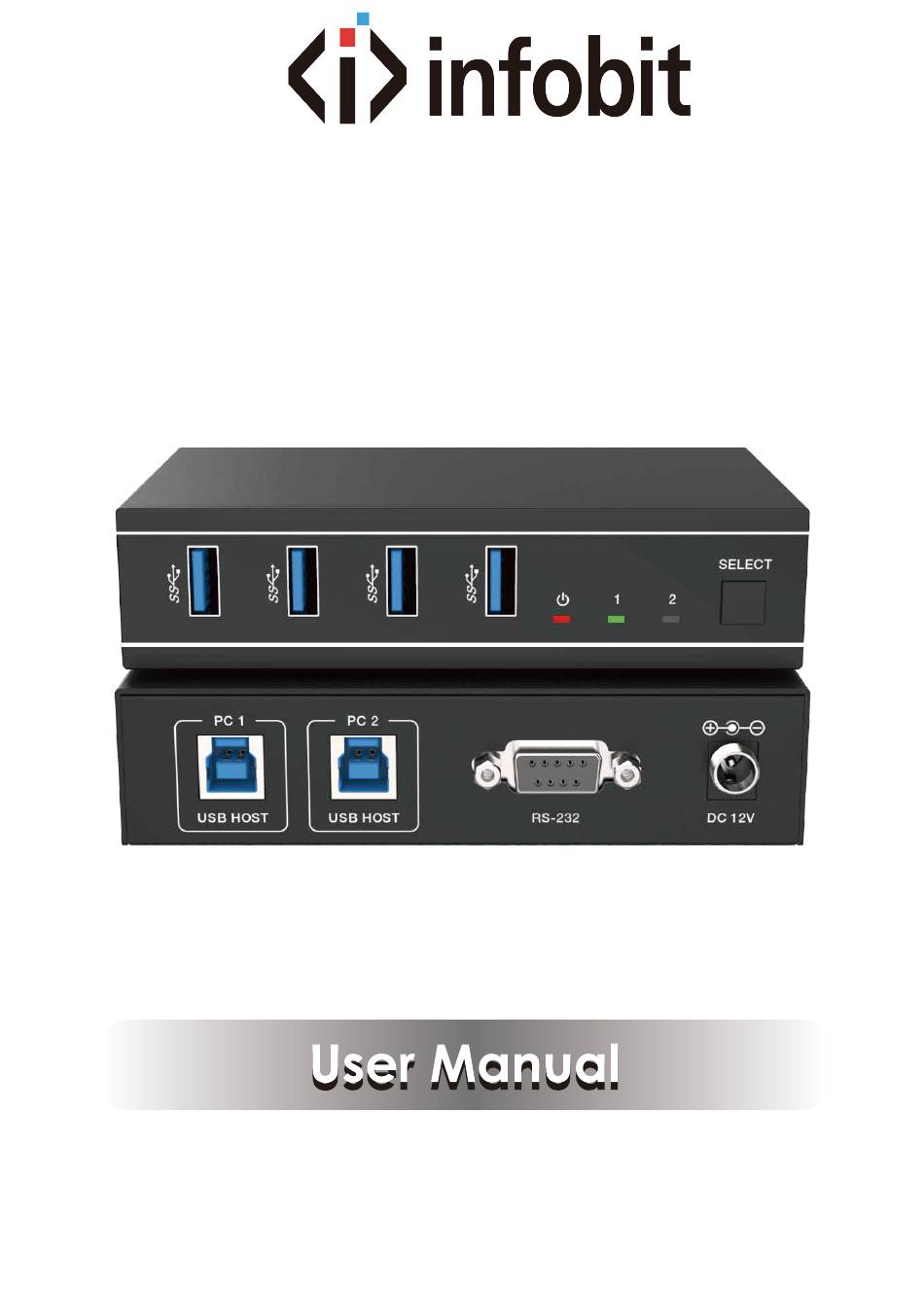

  • Page 1 USB32-S (new) 2x4 USB 3.2 Gen1 Switcher VER 1.0 www.infobitav.com info@infobitav.com...
  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
  • Page 3: Introduction

    1. Introduction This is a 2-port USB 3.2 Gen1 peripheral sharing device that allows users to share four USB devices between two different computers. It is USB 3.2 Gen1 compliant, which can support data transfer rate up to 5Gbps and backwards compatible with USB 2.0 and USB 1.1.
  • Page 4: Specifications

    4. Specifications Technical USB Compliance USB 3.2 Gen1, USB 2.0 and USB 1.1 Data Transfer Rates 5Gbps IEC 61000-4-2: ESD Protection ±8kV (Air-gap discharge) & ±4kV (Contact discharge) Connection HOST ports 2 x USB HOST [USB 3.0 Type B, 9-pin female] DEVICES ports 4 x USB DEVICES [USB 3.0 Type A, 9-pin female] 1 x RS-232 [DB-9]...
  • Page 5: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Front Panel SELECT Name Function Description USB 3.2 Gen 1 device ports, connected to USB 3.0 flash disk, USB 3.0 ports camera, keyboard, mouse, etc. The Power LED will light in red when the product is powered on. Power LED USB Select When the USB HOST port of PC 1/2 is selected as the signal...
  • Page 6: Auto Switching Function

    6. Auto Switching Function The auto switching function can be enabled/disabled through the SELECT button on the front panel or the RS-232 serial commands control. When the auto switching function is enabled, if only one USB HOST is connected, and the other USB HOST port is connected later, the system will automatically switch to the later connected port (last in gets priority), and the corresponding USB Select LED will light up;...
  • Page 7 ASCII Commands Serial port protocol. Baud rate: 115200 (default), Data bits: 8, Stop bits:1, Check bit: 0 x - Parameter 1 y - Parameter 2 ! - Delimiter Command Code Function Description Example Feedback Default Setting help! List all commands help! status! Get device current status...
  • Page 8: Application Example

    8. Application Example Keyboard Camera Mouse USB Flash Disk SELECT PC 1 PC 2 USB HOST USB HOST RS-232 DC 12V Power Supply Laptop PC 2 PC 1 6 / 6...
