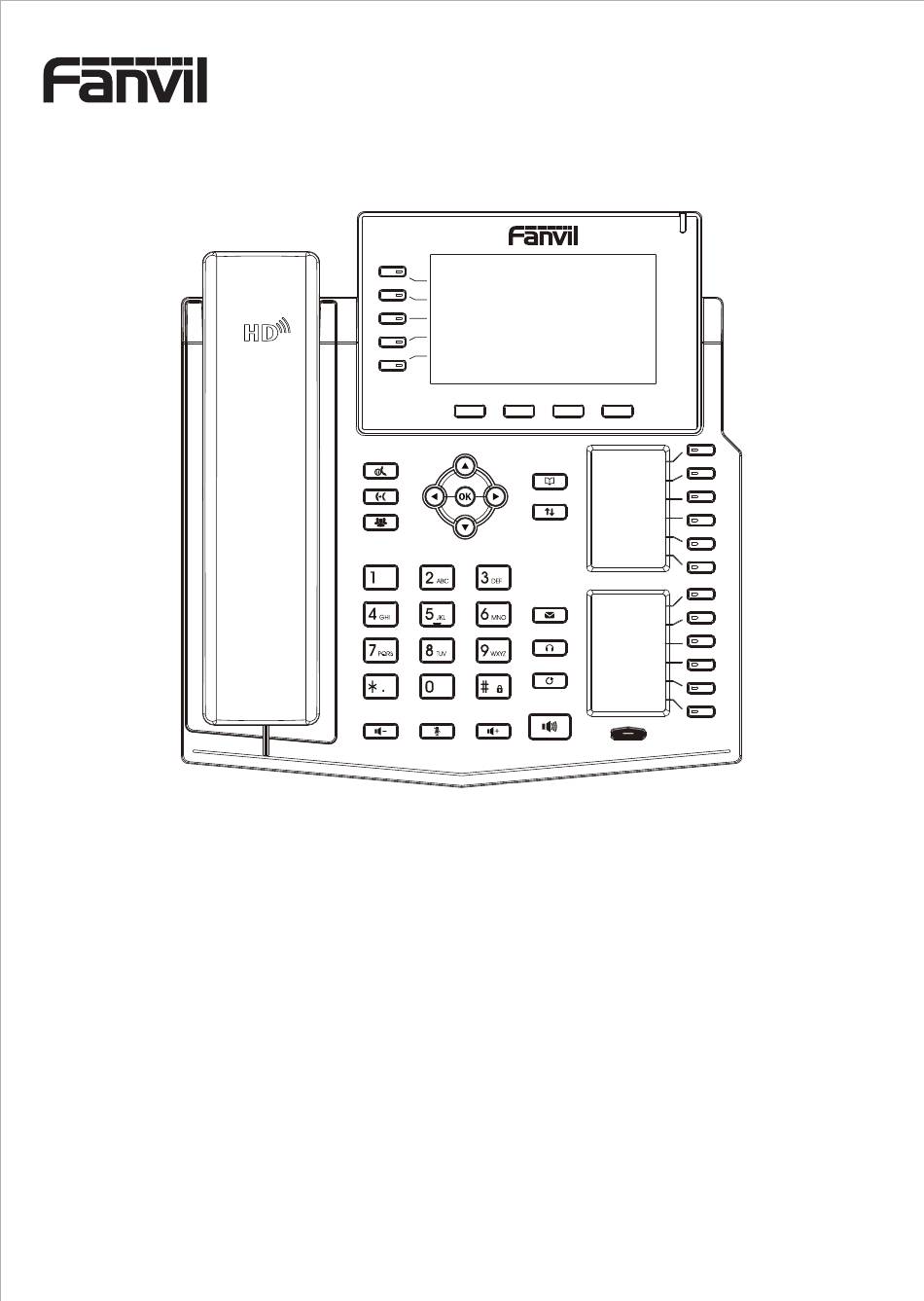

- Page 1 V1.1 Quick Installation Guide Fanvil Technology Co., Ltd www.fanvil.com...
-
Page 3: Table Of Contents
English (EN) ............2 简体中文 (ZH ) ............4 Deutsch (DE) ............6 ............8 Español (ES) ............10 Français (FR) Italiano (IT) ............12 Português (PT )............14 - 1 -... -
Page 4: English (En)
Overview The X6U is an enterprise three screen gigabit IP Phone. It use 4.3-inch main color screen and two 2.4-inch extended screens, support HD voice, gigabit ethernet, 20 SIP accounts, PoE, built-in Bluetooth, 6-way audio conference etc rich functions, and other extended features like EHS headset. - Page 5 Device installation Phone Configuration Please follow the instructions in below picture to install the device. Configuration via LCD menu of phone 1. Press Menu > System (default password 123) ; Bracket desktop installation 2. Select Network: To configure the Network Settings (IPv4/IPv6/IPv4&IPv6, DHCP/Static/PPPoE) ;...
-
Page 6: 简体中文 (Zh)
简体中文 (ZH) 注意事项 警告: 请不要在设备启动未完成或设备升级软件时断开电源，因为如刚才所述的操作将会导致话设备本身的程序损坏，进而导致设备 无法启动。 警告: 请使用设备包装中的电源适配器，因为使用其他没有经过认证的替代电源适配器有可能对设备造成损害。 产品概览 X6U是一款企业级三彩屏网络电话，具有高清语音，480x272 4.3英寸彩色主屏，双2.4英寸第二屏，支持千兆以太网，20个SIP账号， PoE供电，六方语音会议，内置蓝牙4.2等丰富功能；以及可外接EHS无线耳机，USB Wi-Fi 适配器等扩展功能；可满足不同的企业应用 场景，并提供优质的用户体验。 包装清单 听筒曲线 网线 快速安装手册 电话 听筒 支架 电源适配器 壁挂支架 （可选） （另购） 按键概览 信息指示灯 线路键 软按键 导航键 电话本键 通话记录键 保持键 语音信息键 转移键 耳机键 会议键 重拨键 可编程键... - Page 7 设备安装 电话设置 请按照下面图片中的说明安装话机。 通过话机LCD菜单配置 1. 按菜单键 > 高级 (默认密码 123)； 桌面支架安装 2. 选择网络 > 配置网络设置 (IPv4/IPv6/IPv4&IPv6, 动态/ 静态IP/PPPoE)； 3. 选择账号:确认>设置>确认，开启注册，填写:注册地址，注册 用户名，注册密码，SIP用户，显示名字，注册端口等； 4. 保存配置。 通过网页配置 1. 从设备上获取IP地址: 按 键, 或按菜单键 > 状态 > 以太网； 2. 登录: 在网页浏览器上输入IP地址。电脑和电话应该处于同一个 IP地址段，默认的用户名和密码都是“admin”； 3. 配置: 选择网络/账号等，并填写相关内容； 4.
-
Page 8: Deutsch (De)
Netzteils kann das Gerät möglicherweise beschädigen. Überblick Das X6U ist ein Gigabit-IP-Telefon für Unternehmen mit drei Displays. Es verwendet ein 4,3-Zoll-Hauptfarbdisplay und zwei erweiterte 2,4-Zoll-Displays, unterstützt HD-Voice, Gigabit-Ethernet, 20 SIP-Konten, PoE, integriertes Bluetooth, 6-Wege-Audiokonferenzfunktionen usw. und andere erweiterte Funktionen wie EHS-Headset. Es bietet Benutzern ein qualitativ hochwertiges und bequemes Erlebnis und kann in den verschiedenen Szenen verwendet werden. -
Page 9: Installation
Installation Konfiguration Konfiguration über Telefon Bitte folgen Sie den untenstehenden Anweisungen 1. Menü > Erweitert (Standard Password 123). Installation Standfuß 2. Netzwerk wählen: Einstellungen von (IPv4/IPv6/IPv4&IPv6, DHCP/Static/PPPoE). 3. Wählen Sie „Konten“ aus: „Bestätigen“ > „Einstellungen“ > „Bestätigen“, öffnen Sie die Registrierung, geben Sie Folgendes ein: Registrierungsadresse, Registrierungsbenutzername, Registrierungspasswort, SIP-Benutzer, Anzeigename, Registrierungsport usw. -
Page 10: Español (Es)
Audioconferencia de 6 vías, Soporte Adaptador de corriente - 8 -... - Page 11 3.Seleccione la cuenta: Confirmar > Configuración > Confirmar, iniciar el registro, completar: dirección de registro, nombre de usuario de registro, contraseña de registro, usuario SIP, nombre para mostrar, puerto de registro, etc. Nota: Puede ponerse en contacto con el técnico que instaló el producto para cualquier configuración adicional que pueda necesitar para configurar su teléfono, o descargar el manual del usuario y las preguntas frecuentes para obtener información más detallada.
-
Page 12: Français (Fr)
Aperçu Le X6U est un téléphone IP Gigabit d'entreprise à trois écrans. Le X6U dispose d'un écran principal de 4,3 pouces et de deux écrans latéraux de 2,4 pouces. Il prend en charge la voix haute définition, Gigabit Ethernet, 20 comptes SIP, PoE, Bluetooth intégré, Conference audio à... - Page 13 Installation des équipements Configuration du téléphone Configuration via le menu LCD du téléphone Veuillez suivre les instructions de l'image ci-dessous pour installer l'appareil. 1. Appuyez sur Menu > Paramètres avancés (mot de passe par défaut 123). Installation de support de bureau 2.
-
Page 14: Italiano (It)
Panoramica L'X6U è un telefono IP gigabit aziendale a tre schermi. Utilizza uno schermo a colori principale da 4,3 pollici e due schermi estesi da 2,4 pollici, supporta voce HD, Gigabit Ethernet, 20 account SIP, PoE, Bluetooth integrato, Conferenza audio a 6 vie ecc. Funzioni avanzate e altre funzionalità... - Page 15 Installazione del dispositivo Configurazione del telefono Installare il dispositivo seguendo le istruzioni nella figura seguente. Configurazione tramite menù LCD del telefono 1. Premere Menu > Avanzate (password predefinita 123). Montaggio staffa da desktop 2. Selezionare Network: Configura le impostazioni di rete (IPv4/IPv6/IPv4 e IPv6, DHCP/Static/PPPoE).
-
Page 16: Português (Pt)
Visão geral O X6U é um telefone IP gigabit de três telas corporativo. Ele usa tela colorida principal de 4,3 polegadas e duas telas estendidas de 2,4 polegadas, suporte de voz HD, gigabit ethernet, 20 contas SIP, PoE, Bluetooth integrado, Conferência áudio de 6 vias e mais funções avançadas, como fone de ouvido EHS e dongle USB. - Page 17 Instalação do dispositivo Configuração do Telefone Siga as instruções na imagem abaixo para instalar o dispositivo. Configuração via menu LCD do telefone 1. Pressione Menu > Avançado > Senha (senha padrão 123). Instalação no base de suporte 2. Selecione Rede: Para definir as configurações de rede (IPv4/IPv6/IPv4&IPv6, DHCP/Static/PPPoE).
- Page 18 Regulatory Compliance Federal Communication Commission (FCC) — USA This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules These limits are designed to provide reasonable protection against harmful interference in residential installation.
- Page 20 Fanvil Technology Co., Ltd Website: www.fanvil.com EMail: sales@fanvil.com support@fanvil.com Tel: +86-755-2640-2199 Fax: +86-755-2640-2618 Add: 10/F Block A, Dualshine Global Science Innovation Center, Honglang North 2nd Road, Bao'an District, Shenzhen, China...
