Smart Oven
Air Fryer XL
the
Instruction Book – BOV905

Advertisement

loading
Need help?

Need help?

Do you have a question about the Smart Oven Air Fryer XL and is the answer not in the manual?

Questions and answers

Summary of Contents for Breville Smart Oven Air Fryer XL

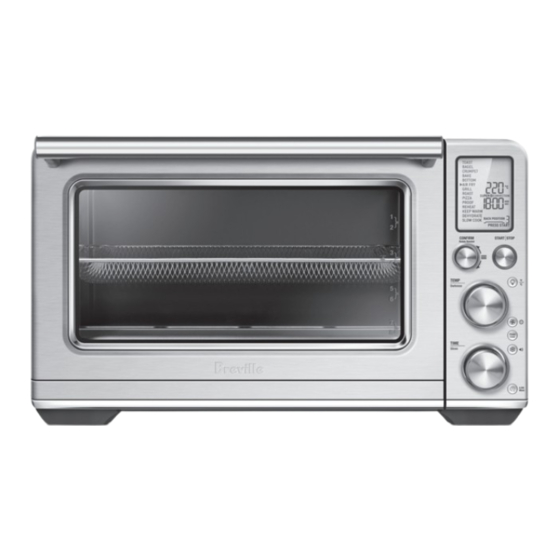

  • Page 1 Smart Oven Air Fryer XL ™ Instruction Book – BOV905...
  • Page 2 PRODUCT READ ALL INSTRUCTIONS WARRANTY BEFORE USE AND SAVE FOR FUTURE REFERENCE 2 YEAR LIMITED Breville’s warranty for this • Remove and discard any product covers the repair or packaging materials safely replacement if it’s found to be before use.
  • Page 3 • Do not, under any the appliance to the nearest circumstance, modify the power authorised Breville Service plug or use an adapter. Centre for examination, • Consult a qualified electrician replacement or repair.
  • Page 4 in a safe way and understands cooking. Please do not touch the hazards involved. Cleaning hot surfaces. Always keep the and user maintenance shall not power cord of this oven, and be made by children unless they those of other appliances near are older than 8 and supervised.
  • Page 5 Breville service manner in which your appliance centre. is being used. In the event your appliance is returned for service, •...
  • Page 6 • Do not operate the light if the privacy@breville.com. bulb housing, glass cover, UV filter or enclosure are missing or WARNING damaged.
  • Page 7 COMPONENTS Oven Accessories F. Door handle A. 30 cm (12 in) non-stick pizza pan G. Oven light B. Grilling rack H. Crumb tray C. 28 x 33.5cm enamel roasting pan I. Ventilation slots D. Air fry basket E. Oven rack (2x)
  • Page 8 CONTROL PANEL 1. LCD screen 2. Function Dial / Rotate Remind / Confirm Button 3. Temperature / Darkness Dial 4. Time / Slices Dial 5. START | STOP Button Oven Light / Temperature CONFIRM START STOP Rotate Remind Conversion Button Convection Phase Cook Button Phase...
  • Page 9 ELEMENT IQ ™ dry thoroughly. The Breville Smart Oven Air Fryer XL features 3. Place the oven on a flat, dry surface. Ensure ™ there is a minimum distance of 10cm of space...
  • Page 10 OVEN FUNCTIONS OVERVIEW SUGGESTED Function PRESETS PREHEAT RANGE RACK POSITION Darkness = 4 Darkness = 1 to 7 Toast Slices = 4 Slices = 1 to 9 Slices Darkness = 4 Darkness = 1 to 7 Bagel Slices = 4 Bagels = 1 to 9 Bagels Darkness = 3 Darkness = 1 to 7...
  • Page 11 QUICK START GUIDE OPERATING YOUR BREVILLE OVEN TEMPERATURE DIAL 1. Insert the wire rack into the desired rack position. The rack positions are conveniently printed on the right-hand side of the oven door window. There are four groove positions. The rack can be inserted either facing upwards...
  • Page 12 BUZZER VOLUME a) When the oven is ready for use, the blinking ‘PREHEATING’ will go out, the oven alert Press and hold the frozen button for 3 seconds to will sound and the timer will start counting activate the volume selection. Use any of the dials down.
  • Page 13 PRESET FUNCTIONS: A BIT MORE™ Use A BIT MORE™ when cooking is finished, and TOAST FUNCTION your food is not quite cooked or hot enough. The TOAST function browns and crisps the outside For example: Bagel Function of your bread while keeping the inside soft and 1.
  • Page 14 BAGEL FUNCTION 6. Press the START | STOP button to start the TOAST function. The button backlight will The BAGEL function crisps the insides of your cut illuminate red, the oven alert will sound, and the bagel while only lightly toasting the outside. This LCD screen will illuminate orange.
  • Page 15 CRUMPET FUNCTION 6. Press the START | STOP button to start the BAGEL function. The button backlight will The CRUMPET function directs more heat on the illuminate red, the oven alert will sound, and the top elements in order to brown and crisp one side LCD screen will illuminate orange.
  • Page 16 BAKE FUNCTION b) The number of crumpet halves is displayed as the bottom figure on the LCD screen. The BAKE function cooks food evenly throughout. Turn the TIME dial to the left to reduce the This function is ideal for baking cakes, muffins, number of crumpet halves, or to the right to brownies and pastries.
  • Page 17 6. Once the oven has finished preheating, an alert 4. The baking temperature, time and convection will sound, and food can be inserted into the settings can be adjusted before or during the oven. baking cycle. 7. Place food, positioned on the included roasting a) Turn the TEMPERATURE dial to adjust pan or other oven-proof dish, on the center of the baking temperature from 50 °C to a...
  • Page 18 Discard excess oil in between the batches. NOTE You can fit a total of 4 air frying/dehydrating baskets in this oven. Visit www.breville.com for more information on purchasing additional air fry/ dehydrate baskets. 4. The AIR FRY temperature and time settings can be adjusted before or during the AIR FRY cycle.
  • Page 19 GRILL FUNCTION and TIME dial. The cycle can be stopped at any time by pressing the START | STOP button. The GRILL function is ideal for cooking open-faced sandwiches, thin cuts of meat, poultry and fish, 8. At the end of the GRILL cycle, the oven alert will sauBrevilles and vegetables.
  • Page 20 PIZZA FUNCTION 5. Press the START | STOP button to activate the ROAST function. The button backlight will The PIZZA function melts and browns cheese and illuminate red, the oven alert will sound, and toppings, while crisping up the pizza crust. the LCD screen will illuminate orange.
  • Page 21 PROOF FUNCTION 8. After the PREHEATING alert has sounded, the timer will automatically begin to count The PROOF function is designed to precisely hold down. The temperature and time can be low temperatures, providing an ideal environment adjusted during the PIZZA cycle by turning the for proofing bread, rolls, pizza and other doughs.
  • Page 22 REHEAT FUNCTION 8. At the end of the REHEAT cycle, the oven alert will sound. The START | STOP button backlight The REHEAT function is ideal for gently reheating will go out and the LCD screen will illuminate leftovers without browning or drying them out. white.
  • Page 23 6. Press the START | STOP button to activate the 4. The dehydrating temperature, time and KEEP WARM function. The button backlight will convection settings can be adjusted before or illuminate red, the oven alert will sound, and the during the dehydrate cycle. LCD screen will illuminate orange.
  • Page 24 SLOW COOK FUNCTION NOTE The SLOW COOK function has cooking profiles designed for long cook times at low temperatures. Do not pull the wire rack further than halfway out 1. Insert the wire rack into rack position 8. when inserting or removing cookware from the 2.
  • Page 25 The top of the oven is very hot during and after operation. As a result, storing items on top of the oven is not recommended. The only exception is the optional Breville Bamboo Cutting Board and Serving Tray that fits in the ribbed section on top of the oven. Visit www.Breville.com for more information.
  • Page 26 Do not use any type of cleanser or cleaning agents. anything on top. The only exception is the Do not use any standard oven cleaner to clean optional Breville Bamboo Cutting Board and the interior of the oven as this will deteriorate the Serving Tray.
  • Page 27 TROUBLESHOOTING POSSIBLE PROBLEM EASY SOLUTION Oven will not switch "ON" • Check that the power plug is securely inserted into the outlet. • Insert the power plug into an independent outlet. • Insert the power plug into a different outlet. •...
  • Page 28 • The LCD screen will display ‘E01’ when there is a non-resettable ‘E01’ issue with the appliance. Should this occur, immediately remove the power cord from the power outlet and call Breville Consumer Support. The LCD screen displays • The LCD screen will display ‘E02’ when there is a non-resettable ‘E02’...
  • Page 29 NOTES...
  • Page 30 NOTES...
  • Page 31 Web: Web: www.breville.com www.breville.com Breville, the Breville Logo, is trademark of Breville Pty Ltd (“Breville”) and Breville's products are distributed in Australia and New Zealand under license. Copyright Breville Pty. Ltd. 2024. Due to continued product improvement, the products illustrated/photographed in this brochure may vary slightly from the actual product.
