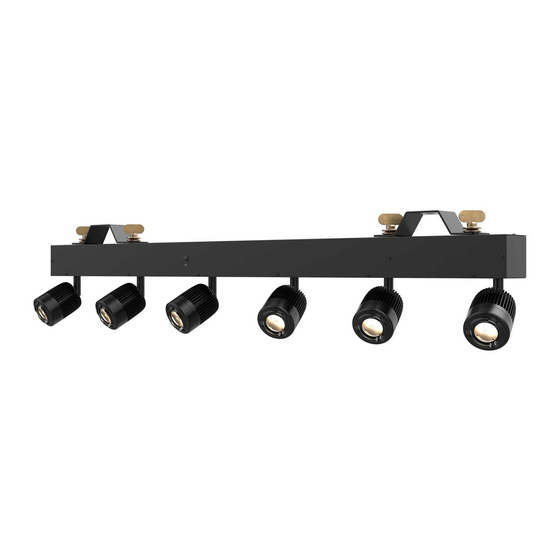

Pinspot Bar
User Manual

Advertisement

Table of Contents
loading

Summary of Contents for Chauvet DJ Pinspot Bar

  • Page 1 Pinspot Bar User Manual...
  • Page 2: Table Of Contents

    IRC-6 Infrared Remote Control ................IRC-6 Operation ......................10 Master/Slave Mode ....................Master/Slave Mode (D-Fi USB)..................11 Slave products: ....................... Master product: ....................... 5. Maintenance....................Product Maintenance ....................6. Technical Specifications................Returns ......................Contact Us......................Pinspot Bar User Manual Rev. 1...
  • Page 3: Before You Begin

    Electronically published by Chauvet in the United States of America. CHAUVET, the Chauvet logo, and Pinspot Bar are registered trademarks or trademarks of Chauvet & Sons LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.
  • Page 4: Safety Notes

    Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. Page 2 of 15 Pinspot Bar User Manual Rev. 1...
  • Page 5: Introduction

    Introduction 2. Introduction Product Overview D-Fi Safety loop display Microphone Power Menu Power buttons sensor Product Dimensions 39.3 in 1000 mm 5 in 131 mm 4.6 in 119 mm Pinspot Bar User Manual Rev. 1 Page 3 of 15...
  • Page 6: Setup

    3. Setup AC Power The Pinspot Bar has an auto-ranging power supply, and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.
  • Page 7: Mounting

    Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The Pinspot Bar may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location, always make sure there is easy access to the product for maintenance and programming.
  • Page 8: Operation

    Hold the last DMX signal received Sound Revert to sound mode Screen display always on Screen Turn off display after 30 seconds of inactivity Reset Reset the product to factory default settings Page 6 of 15 Pinspot Bar User Manual Rev. 1...
  • Page 9: Configuration (Dmx)

    Press <ENTER>. D-Fi USB Connectivity The Pinspot Bar is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from Chauvet DJ. Simply set the product's DMX Personality and DMX Address, set the DIP switch D-Fi receiving/transmitting channel, then plug it into the D-Fi USB port.
  • Page 10: Dmx Channel Assignments And Values

    Operation DMX Channel Assignments and Values Pinspot Bar Zones for DMX Control 11Ch Channel Function Value Percent/Setting Pod 1 000  255 0–100% Pod 2 000  255 0–100% Pod 3 000  255 0–100% Pod 4 000  255 0–100% Pod 5 000 ...
  • Page 11: Configuration (Standalone)

    5. Use <UP> or <DOWN> to select an automatic program, from 01–11. 6. Press <ENTER>. Auto program speed To adjust the auto program speed on the Pinspot Bar, do the following: 1. Press <MENU> repeatedly until Auto shows on the display. 2. Press <ENTER>.
  • Page 12: Irc-6 Infrared Remote Control

    Operation IRC-6 Infrared Remote Control The Pinspot Bar is compatible with the IRC-6 infrared remote control from Chauvet. To enable or disable the IR mode on the Pinspot Bar, follow the instructions below: 1. Press <MENU> repeatedly until Settings shows on the display.
  • Page 13: Master/Slave Mode

    Master/Slave Mode (D-Fi USB) The D-Fi USB allows a single Pinspot Bar product (the “master”) to control the actions of one or more Pinspot Bar products (the slaves) without the need of a DMX controller or DMX cables. The master (transmitter) product will be set to operate in either standalone mode or with the footswitch, whereas the slave (receiver) products will be set to operate in slave mode.
  • Page 14: Maintenance

    6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Page 12 of 15 Pinspot Bar User Manual Rev. 1...
  • Page 15: Technical Specifications

    7,707 lux Thermal Maximum External Temperature 104 °F (40 °C) I/O Connector Channel Range 3-pin XLR 1, 6, or 11 Ordering Product Name Item Code UPC Number Pinspot Bar 10031660 781462220082 Pinspot Bar User Manual Rev. 1 Page 13 of 15...
  • Page 16: Returns

    Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Page 14 of 15 Pinspot Bar User Manual Rev. 1...
  • Page 17: Contact Us

    Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record. Pinspot Bar User Manual Rev. 1 Page 15 of 15...
