How to Prolong the Life of
Your Bimini Top
•
Avoid letting water or snow stand on the top.
•
Always travel with top in the stored position
inside the storage boot.
•
When properly installed, you can safely
deploy and use your bimini top with a
maximum operating speed of 35 MPH.
•
Allow bimini top to dry thoroughly before
folding for storage.
Cleaning & Care Instructions
Scan QR Code or visit Page 4 to
learn how to properly care for
your bimini top canvas and frame.
Carver Limited Warranty
Scan QR Code or visit Page 4
to learn more about our limited
product warranty.

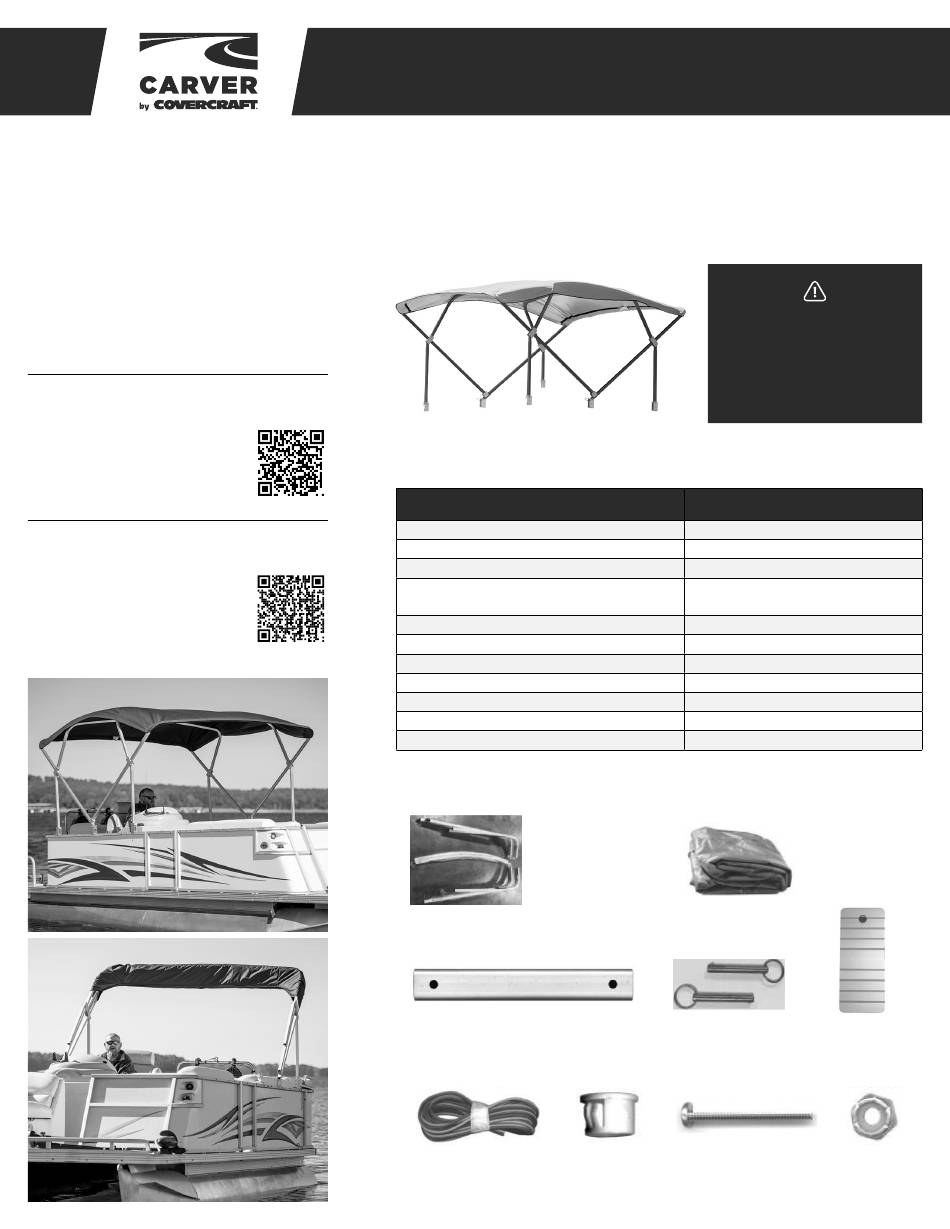

Square Tube (1.25") Pontoon Bimini Top
Assembly and Installation Instructions
Carver 1.25" Square Tube Pontoon Bimini Tops are a classy way to protect yourself
and your pontoon boat from the elements. They also add style and color to your boat.
These instructions make assembly and installation easy. Please read them carefully
before beginning.
NOTE: This is a universal fit unit. You may need to improvise in some areas to secure this unit to your boat.
PARTS LIST:
Item
Right Side Bow Assembly
Left Side Bow Assembly
Center Bow Sections
Bimini Top Canvas & Matching Storage Boot
(Storage Boot is inside the canvas)
Joiner Pieces w/ Snap Buttons (6")
Pull Pins for Center High Rise Mount
High Rise Mounts
Wire Harness
Grommet for Stern Light Wire
Phillips Pan Bolts (#10 x 24 x 1 3/4")
Lock Nuts (#10 x 24)
(1) Right Side Bow Assembly
(1) Left Side Bow Assembly
(4) Center Bow Pieces
(8) Joiner Pieces with
Snap Buttons - 6"
(1) Wire Harness
Please
unpacking and installing your bimini
top. Should you need to return the
bimini top, it MUST be in its original,
new condition. The bimini top canvas
must be clean and dry, and free of
debris (including pet hair). Frame
components must not be scratched.
QUANTITIES FOR:
PART IMAGES (NOT ACTUAL SIZE)
(2) Pull Pins for Center
High Rise Mount
(1) Grommet for
(6) Phillips Pan Bolts
Stern Light Wire
#10 x 24 x 1 3/4"
take
extra
care
when
4-Bow Square Tube 1.25"
Pontoon Bimini Top
1
1
4
1
8
2
6
1
1
6
6
(1) Bimini Top & Boot
(6) High Rise Mounts
(6) Lock Nuts
#10 x 24
1
