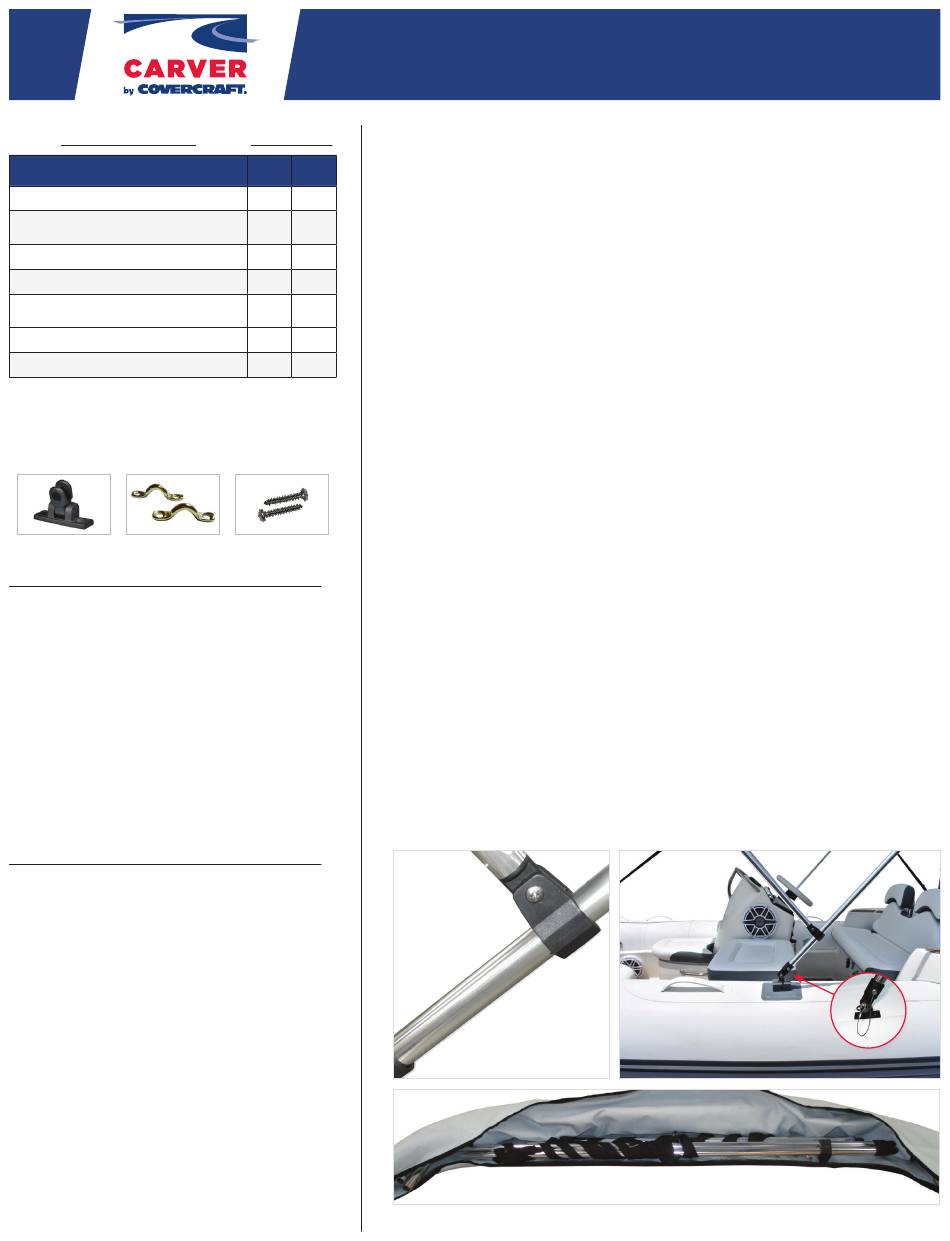

CoverCraft CARVER 4250 Assembly And Installation Instructions

4250/4251 Parts List
Item
(12)
No. 10 Screws - 1" Length
Black, 1" Polypropylene
(4)
Hold-Down Straps (pre-installed)
(1)
Bimini Top Canvas
(2)
Universal Deck Hinges (pre-drilled)
Stainless Steel Quick Release Pins
(2)
with Lanyard (Attached to Top)
(4)
Eye Straps
(1)
Storage Boot
*Inflatable Boat **Fishing Boat
Minimum Tools Needed: Drill with 9/64" bit, a Phillips head
screwdriver and pencil.
Also helpful: Tape measure or other measuring device.
Universal Eye Straps
Deck Hinges
How to Prolong the Life of
Your Bimini Top
• Avoid letting water or snow stand on the
top.
• Always travel with top in the stored
position inside the storage boot.
• Allow bimini top to dry thoroughly before
folding for storage.
• When properly installed, you can safely
deploy and use your bimini top with a
maximum operating speed of 35 MPH.
Cleaning & Care Instructions
To keep your canvas looking its best, regularly
brush off any loose dirt with a soft brush and
rinse with lukewarm water (100° F maximum).
To clean, a solution of lukewarm water and
mild natural soap such as Ivory™ may be used.
Rinse thoroughly and allow to air dry. The use
of detergents is NOT recommended as it may
diminish the water repellent finish on certain
fabrics. Never machine wash, dry clean or
iron the canvas. To spot clean stubborn soil or
stains, a solution of 1/4 cup mild natural soap
and 1 cup of bleach per gallon of lukewarm
water may be used. Mist the soiled area and
clean vigorously with a sponge, soft brush
or clean towel. Rinse thoroughly and air dry.
Always fold down and secure bimini top in
the stored position when trailering your boat.
for Inflatable Boats & Small Fishing Boats
Bimini Top Assembly Instructions for All Applications
Where Used
Your new bimini top is fully enclosed in a sealed plastic sleeve. Remove the plastic
*I/B **F/B
sleeve and discard. All components are contained in the zippered storage boot with
convenient carrying handle.
✓
1.
✓ ✓
2.
✓ ✓
✓
3.
✓ ✓
✓
✓ ✓
4.
5.
6.
Mounting Bimini Top to Your Inflatable Boat
No. 10 Screws
NOTE: Inflatable boat mounting hardware is sold separately.
If you are replacing an existing bimini top, no mounting hardware should be needed. If
this is a new installation, inflatable boat mounting kits for this bimini top are available.
Check our website at www.CarverCovers.com for details.
Dismount Instructions for All Applications
Disengage the hold down straps from the eye straps and remove A-bow from the
deck hinges by removing both quick release pins.
Disengage the legs of the long and short bow by depressing the internal spring
button stop and pulling the metal apart. Wrap hold down straps around the straight
legs. Wrap canvas around remaining metal center pieces, insert legs inside storage
boot with canvas and zip up.
CAUTION: When knocking down your bimini top for storage, be cautious putting
the legs and canvas into the boot to avoid possibility of tearing the canvas.
Long Bow
w/ Attached
Jaw Slides
Collapsible 2-Bow Bimini Top
Assembly and Installation Instructions
Unzip the storage boot, remove all components and set storage boot aside.
Open the canvas so that the underneath side (the side with the label) is facing up
and the ends of the center bow sections are facing out.
Identify the long bow (has attached jaw slides, see photo below). Be sure that the
screw heads on the jaw slides are FACING OUT, lock into place by depressing
the internal spring button stop and sliding it into the tubing until it seats in the
pre-drilled hole.
Assemble the short bows (without jaw slides) connecting as in Step 3.
Connect the assembled long bow to the assembled short bow. Remove the
screws from the jaw slides on the long bow. Raise the legs of the long and short
bows until they meet. Insert the inside eye ends on the short bow into the jaw
slides on the long bow. The inside eye ends are designed to pivot slightly to
ensure alignment into the jaw slide. Re-install the jaw slide screws and tighten.
Invert bimini top to the upright position. Your top is now ready to install!
Fishing Boat Installation On Reverse
#3058017 (08/24)
