Caution!
Please take extra care
when unpacking and assem-
bling your bimini top. Should
you need to return the bimini
top, it MUST be in its orignal,
new condition. The bimini
top canvas must be clean
and dry, and free of debris
(including pet hair). Frame
components must not be
scratched.

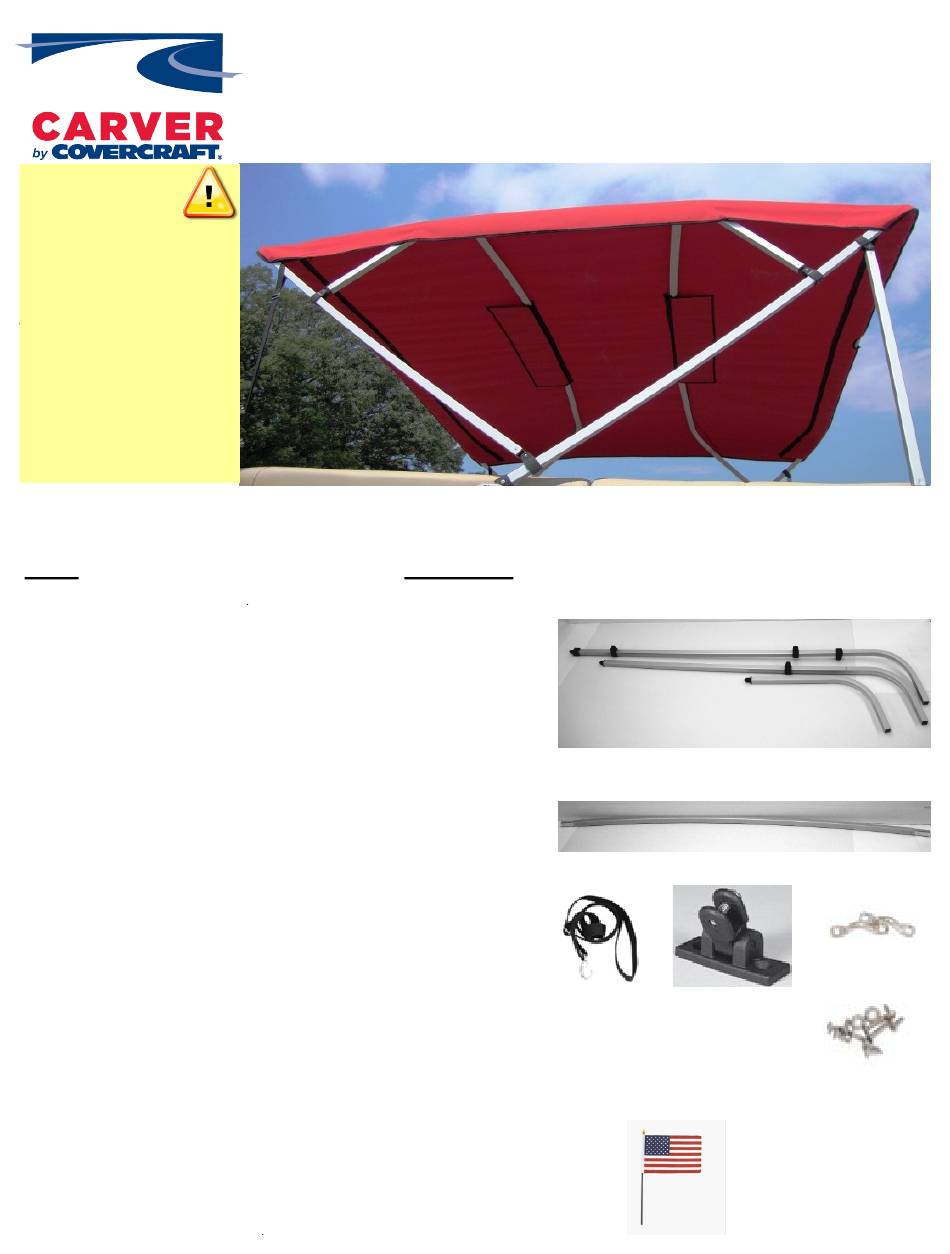

PARTS LIST:
ITEM:
No. 8 screws, 1/2" length
No. 10 screws, 1" length
Finish Washers
Long, metal side bow sections
Medium, metal side bow sections
Short, metal side bow sections
Center metal cross bow sections (equal length)
Black, 1" polypropylene hold-down straps
Bimini Top Canvas
Deck Hinges
Eye Straps
Optional Storage Boot
Brace Kit (pair) with following hardware:
90° Deck Hinges for Brace Kit
Quick Release Pin w/ Lanyard & Eye
Packaged By ____________________________________
Carver by Covercraft Industries,
LLC
P.O. Box 399
Landrum, South Carolina 29356
(864) 457-5820
Carver Square Tube Bimini Top with Zippered Sleeves
Assembly and Installation Instructions
Carver Bimini Tops are a classy way to protect yourself and your boat from the
elements. They also add style and color to your boat. These instructions make
assembly and installation easy. Please read them carefully before beginning.
QUANTITY:
20_____
13_____
For your convenience,
Assembly and Installation Videos are
available on our website,
www.carvercovers.com
Minimum tools needed:
Drill with 9/64" bit, a Phillips head and a
flat head screwdriver, pencil.
Also helpful: Tape measure or other
measuring device.
2_____
2_____
2_____
4_____
Short, Medium, Long Metal Side Bow Sections
4_____
2_____
1_____
2_____
2_____
1_____
Polypropylene
1_____
Hold-Down
2_____
Straps
2_____
Center Metal Cross Bow Section
Universal
Deck Hinges
Carver products
are proudly
Made in the USA
Eye Straps
Stainless Steel
Fasteners
Advertisement
Table of Contents
Related Manuals for CoverCraft Bimini
Summary of Contents for CoverCraft Bimini
- Page 1 Carver Square Tube Bimini Top with Zippered Sleeves Assembly and Installation Instructions Carver Bimini Tops are a classy way to protect yourself and your boat from the elements. They also add style and color to your boat. These instructions make assembly and installation easy.
- Page 2 REAR sleeves over the short C-bows of the frame (as shown in figure 9). You are of the now ready to flip the bimini top right-side up and mount to the boat (see canvas. reverse). Additional Instructions for Buggy-Style Pontoon Top with Tails: 1.
- Page 3 Installing the Bimini Top on the boat Please Note: The process of assembling the bimini frame may cause the width of the frame to expand or retract at the mounting points. If the frame appears too wide or too narrow when you are ready to mount the top on the boat, simply mount one side and, with minimal force, push or pull the opposite side to fit the mounting point on the opposite side.
