- Page 1 HDMI Industrial Camera User Manual HY-2307Q Industrial Camera V1.3 ( English Version ) - 1 -...
-
Page 2: Security Instruction
Camera Function Instruction 1. 37MP Japanese Panasonic CMOS sensor. 2. This product has 37MP snap shot image and 1080P video recording. One button switches snap shot & video mode. The default mode is shot image, press the “MODEL” button to turn to video mode, press again come to preview mode. -
Page 3: Package Include

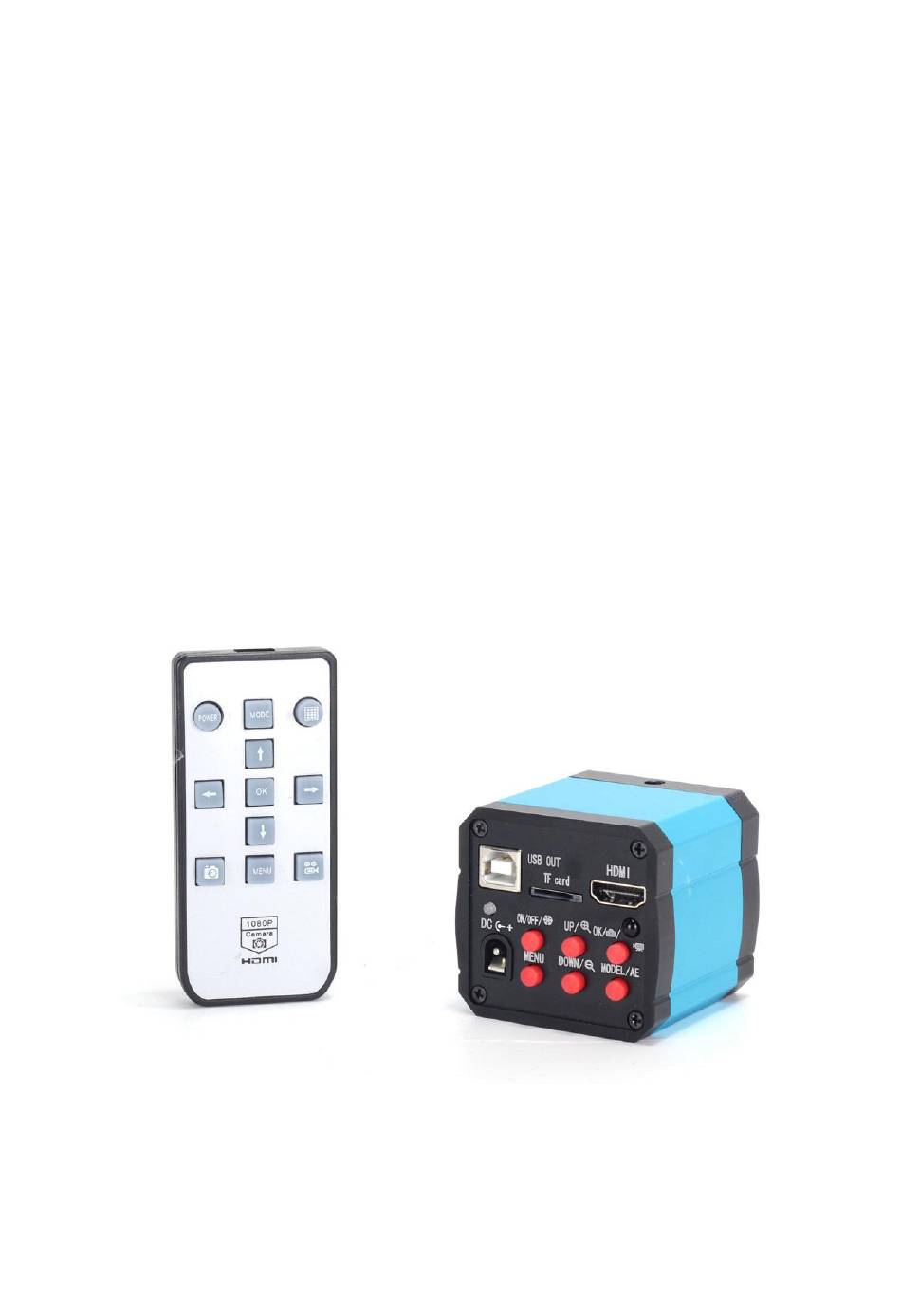

Package Include HY-2307 camera x 1 power supply x 1 Remote x 1 User manual x 1 Camera dust cover x 1 USB line x 1 Button Instruction : ON / OFF ( Freeze / Unfreeze ) button : Menu : Up / Zoom+ : Down / Zoom- : Snap Shot / Video / OK(confirm) - Page 4 the “DOWN” button to choose the Chinese, then press the “OK” button to return to the main menu. 3. Line setting 3.1: Under the main menu, select the line setting, press the “OK” button to enter the line setting menu. 3.2: Press the “DOWN”...
- Page 5 3.3: When the cross hair is highlight, press the “OK” button to open or close the cross hair. 3.4: Cross Hair Setting (1) Cross Hair Press the “OK” button to open the Cross Hair setting, the Cross Hair will be displayed on the - 5 -...
- Page 6 middle part of the screen, press the “OK” button to switch ON and OFF, ON means display the cross hair and OFF means hide it. (2) Line Press the “OK” button, it will decrease from 10-1-OFF, 1 means the first line, and so on. Direction Press the “OK”...
- Page 7 6. Color Setting Press the “MENU” button to open the main menu, press the “DOWN” button when it goes to the color option and press the “OK” button to enter the color setting menu, press the “UP” or “DOWN” button to switch color mode and black &white mode, press “OK” button when you are sure.
- Page 8 Format TF card Press the “MENU” button to open the main menu, then press the “DOWN” button, when it goes to Format, press the “OK” button to select it. Press the “UP” or “DOWN” button to select cancel or confirm. When select confirm and press “OK” button the TF card will be formatted.
- Page 9 10. System setting Press the “MENU” button to open the main menu, press the “DOWN” button to the default setting option and then press “OK” button to enter the setting page. Select the confirm it will return menu setting to defaults. Select cancellation it will exit. 11.
- Page 10 13. Electronic amplification and reduction 13.1: Press the “UP” button the image will get electronic amplification, the multiple will be shown on the left of the image, the maximum multiple up to 8 times and image will be vague during magnification. 13.2: After electronic amplification, press on the “DOWN”...
-
Page 11: Usb Output
USB output HAYEAR User Manual Overview HAYEAR is an application for imaging a dynamic image processing , has the following characteristics: User Interface 1. Toolbar：Take pictures/Recording video/Browse files. 2. Sidebar tab：Switching the rightmost control panels, currently provides camera control and measurement functions. -
Page 12: Capture Images
5. Main menu：Open setting dialog, show software information, etc. Capture Images You can capture pictures and videos： Take a picture: Click “Snap” button to take a picture. Click the right arrow beside the “Snap” button to set picture file format and resolution. Recording：Click “Record”... - Page 13 Normal camera parameter adjustment. Reset camera parameters. Open camera property dialog, generally supported by the DirectShow cameras Measurement Icon Function Description Move Move or adjust the measurement tool. Point Setup > Video Overlay > Marker Line Measure length of a line. Vertical Rectangle Measure perimeter and acreage of a rectangle.
- Page 14 Text Delete all measurement tools. Stitch How to define the measurement Take a 5mm measurement as example Fill in a custom name Fill in the actual size on the scale Choose the scale base(such as: px, cm, mm, um, in, uin) Complete the setting The picture below is the 5mm measurement result - 14 -...
-
Page 15: Software Installation
Software Installation Download the software: http://www.hayear.com The “S-EYE” can support only the Windows system, the users can also download by the link in the official website. The operating systems: Windows XP SP3、Windows 7、Windows8、Windows10 The operating environment: Microsoft.Net Framework 4.0 , Microsoft Visual C++ 2010 If there is no the two complete runtime library, there will be an error when installing the software. - Page 16 Warranty User’s name： Address： Phone number： Post code： email： Model name： Purchase date： Fault feedback： Date： Fault： Notice： Our warranty doesn’t cover: If users can not provide the purchase proof or the Warranty. If users use it in an improper environment, such as incompatible power supply, high temperature environment etc.
- Page 17 Copyright © HAYEAR - 17 -...
